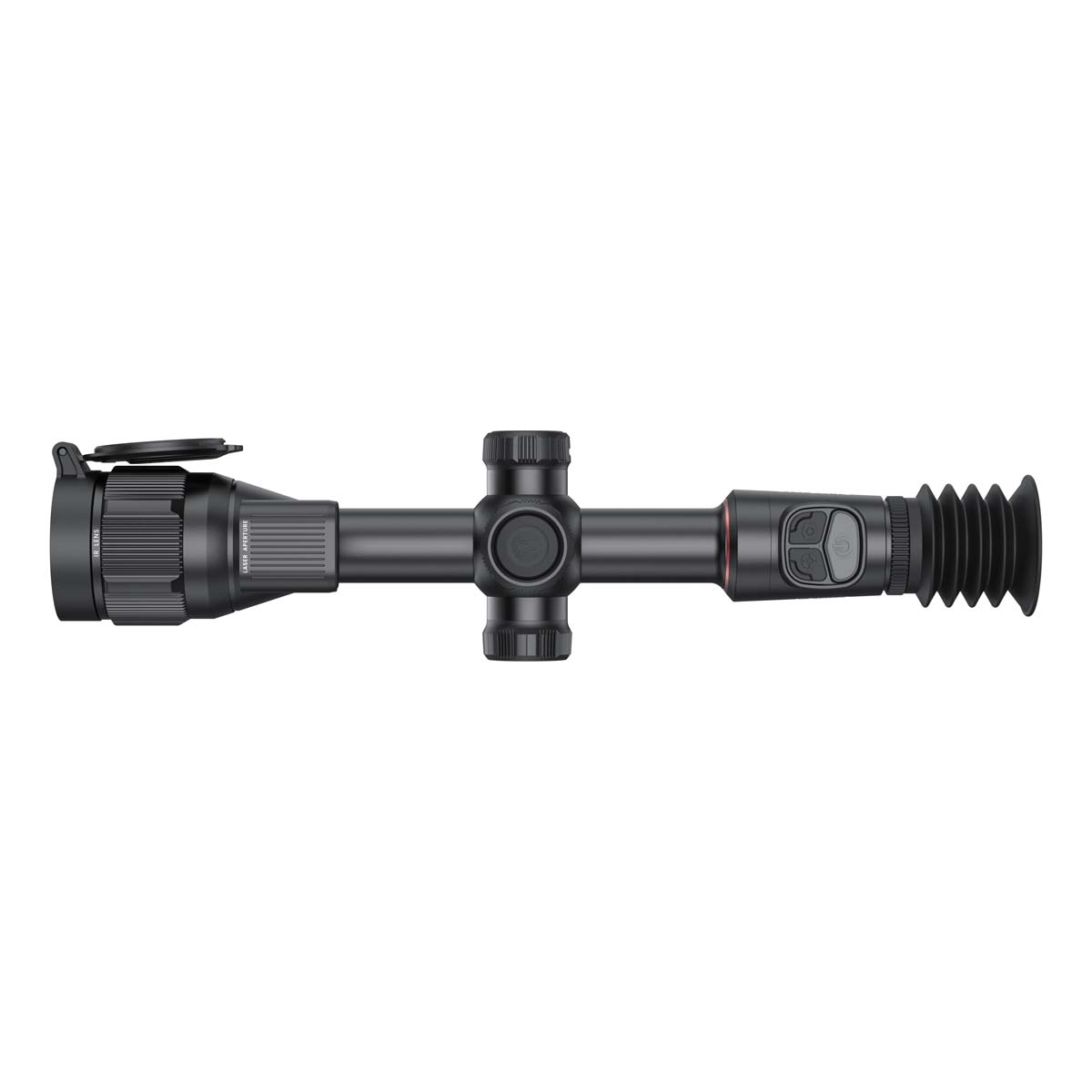

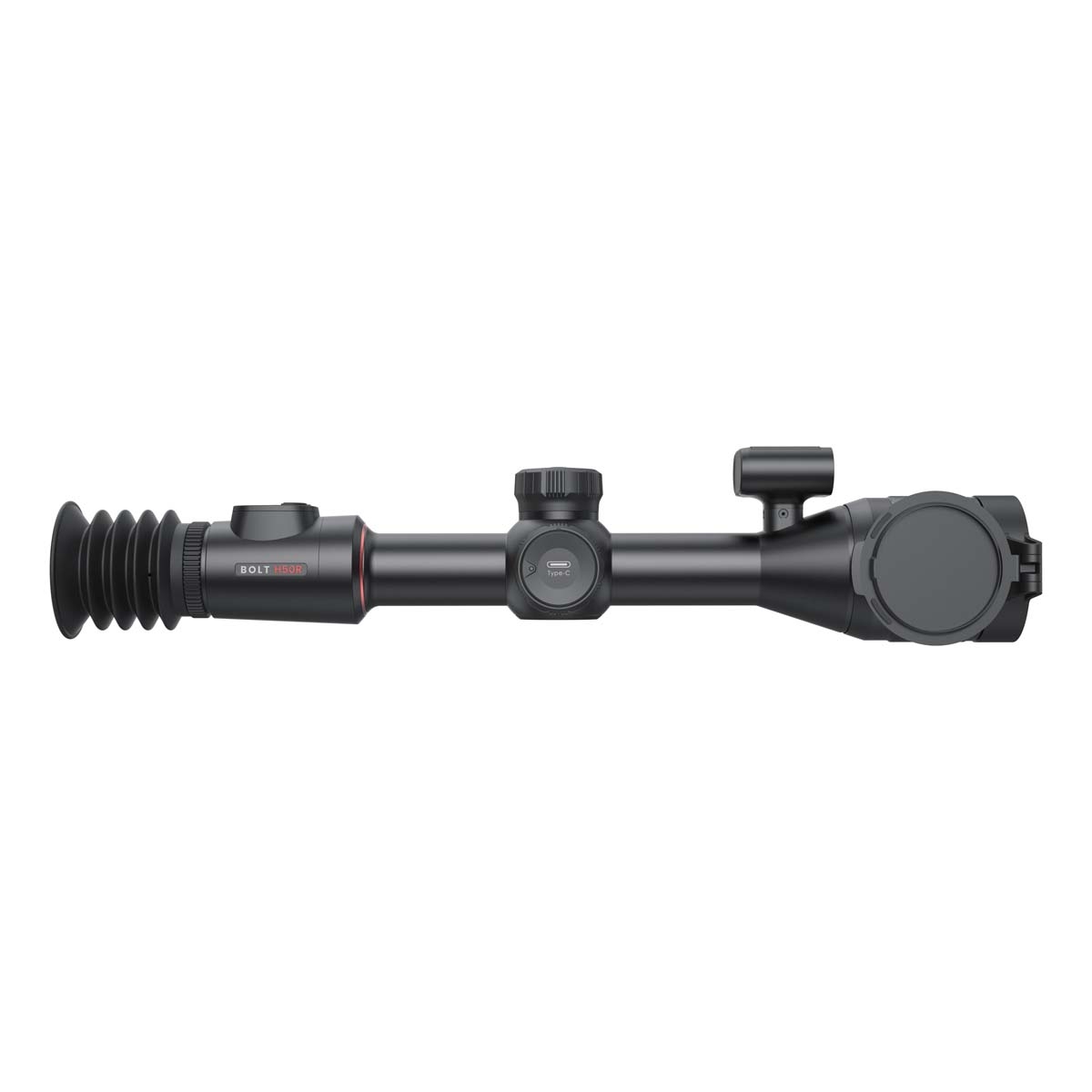

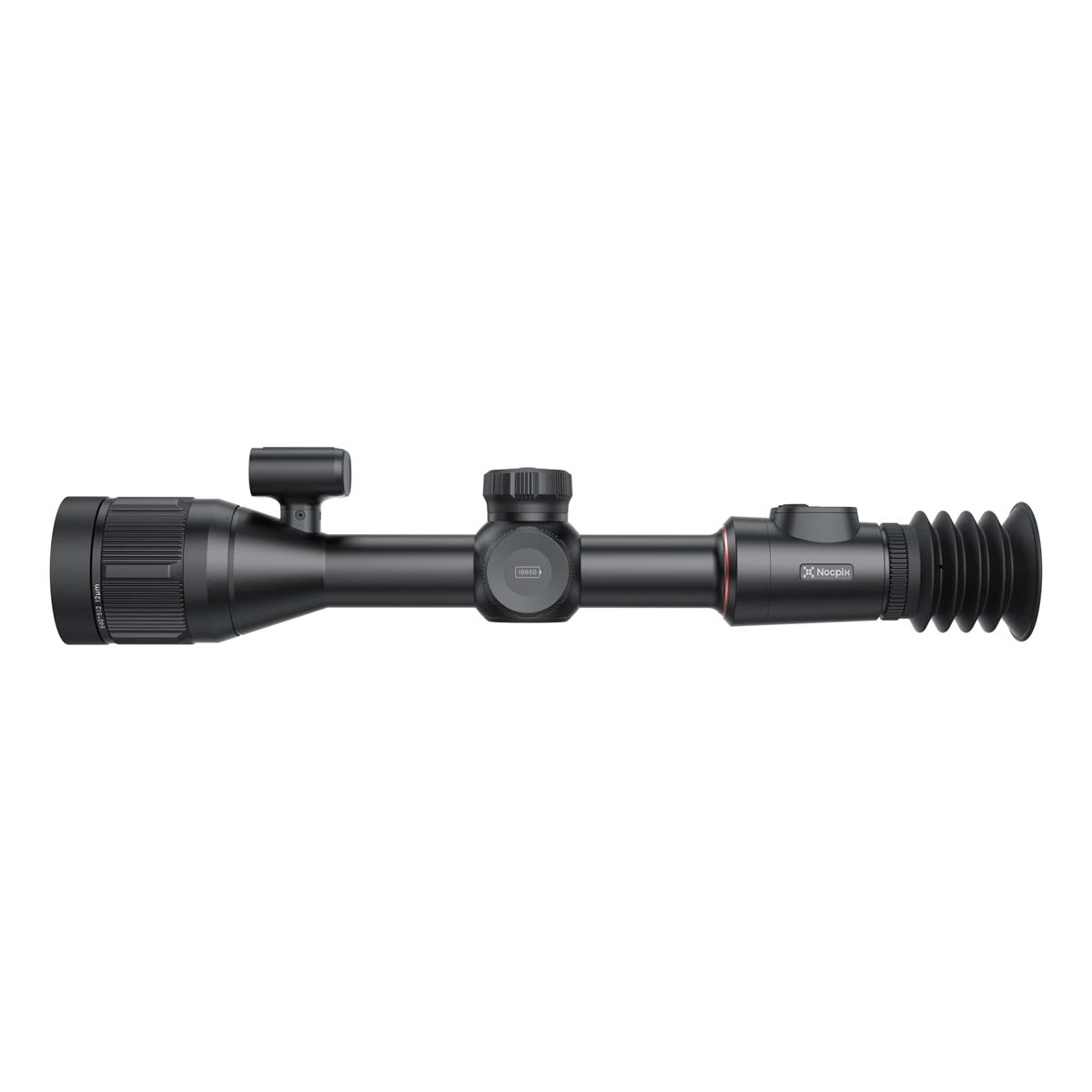

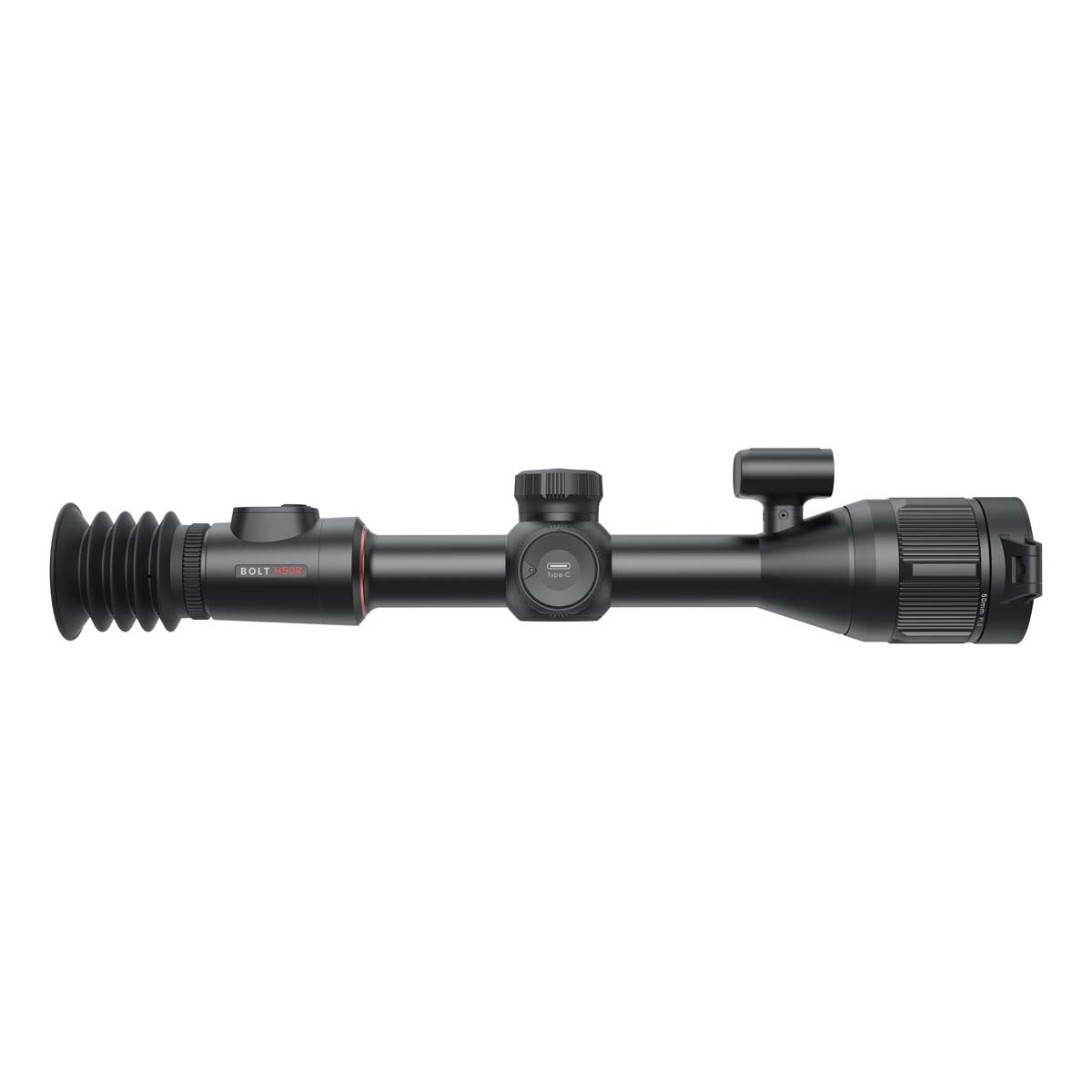

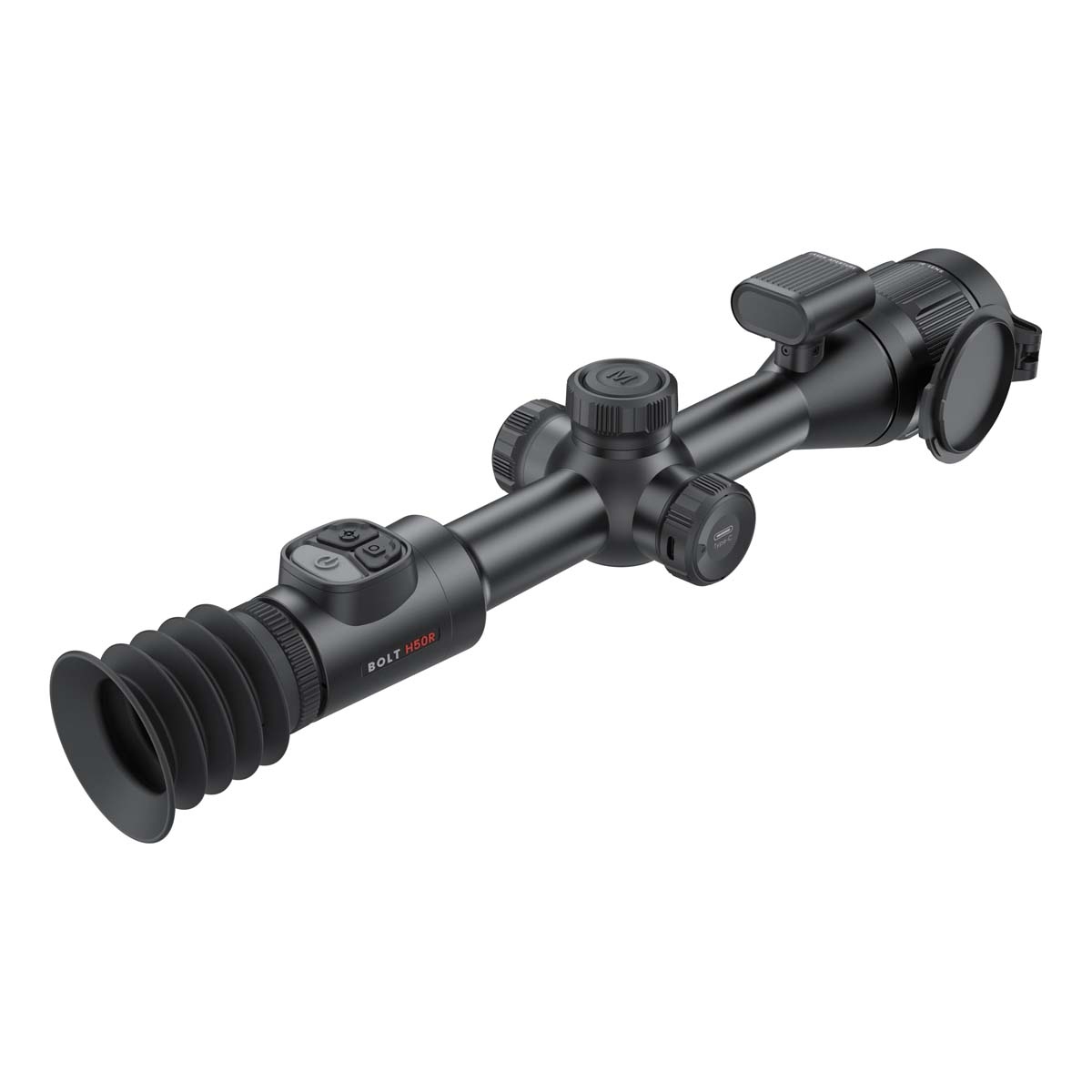

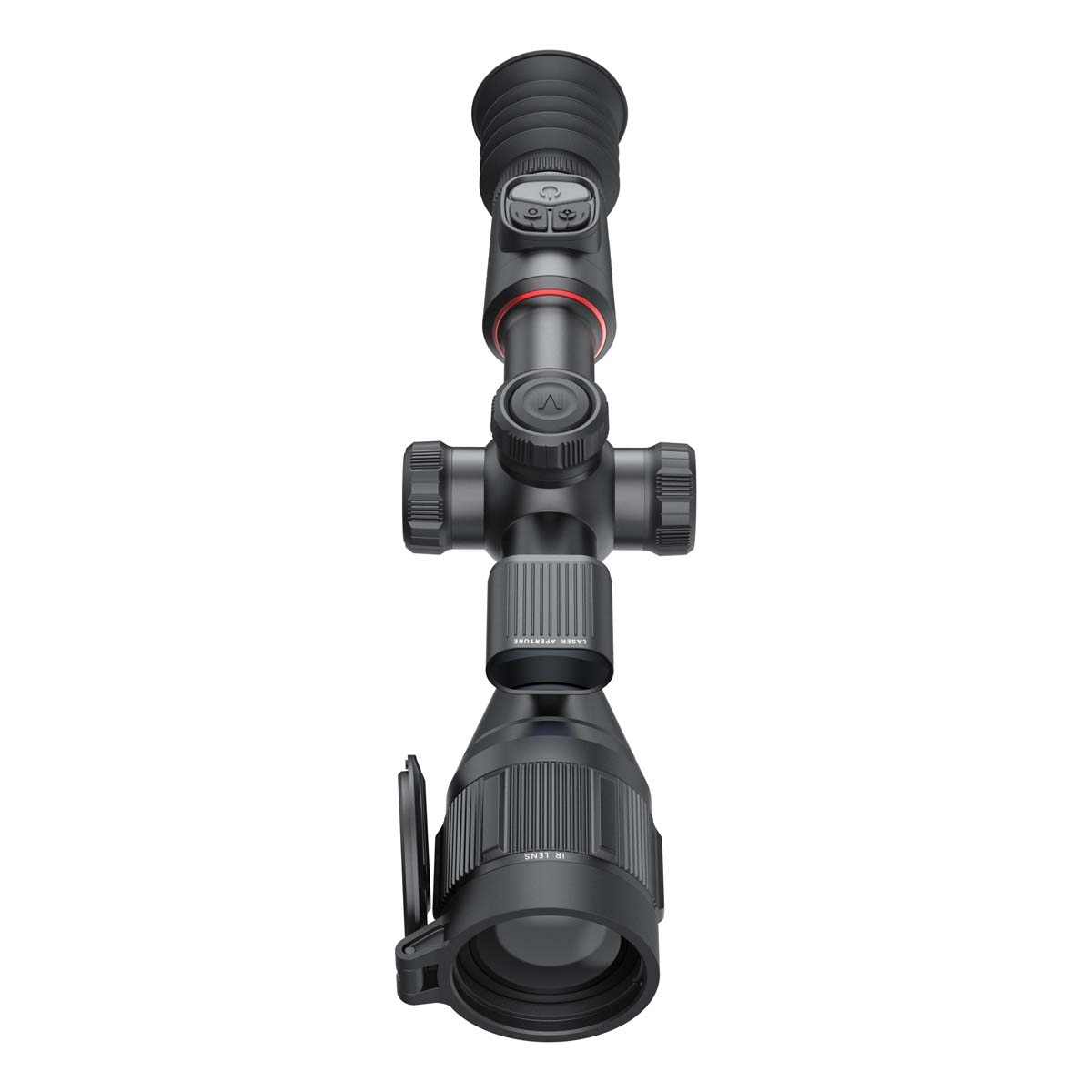

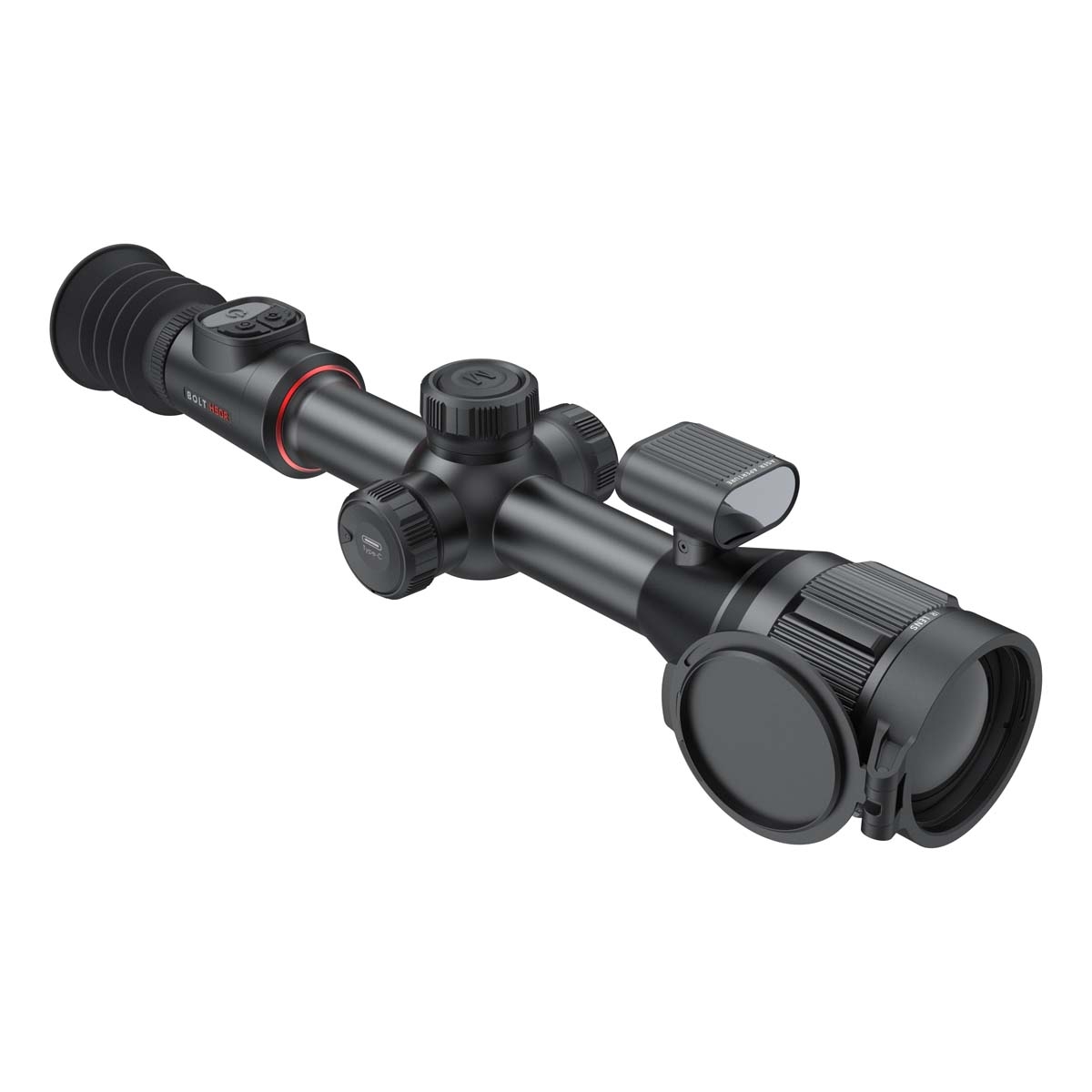

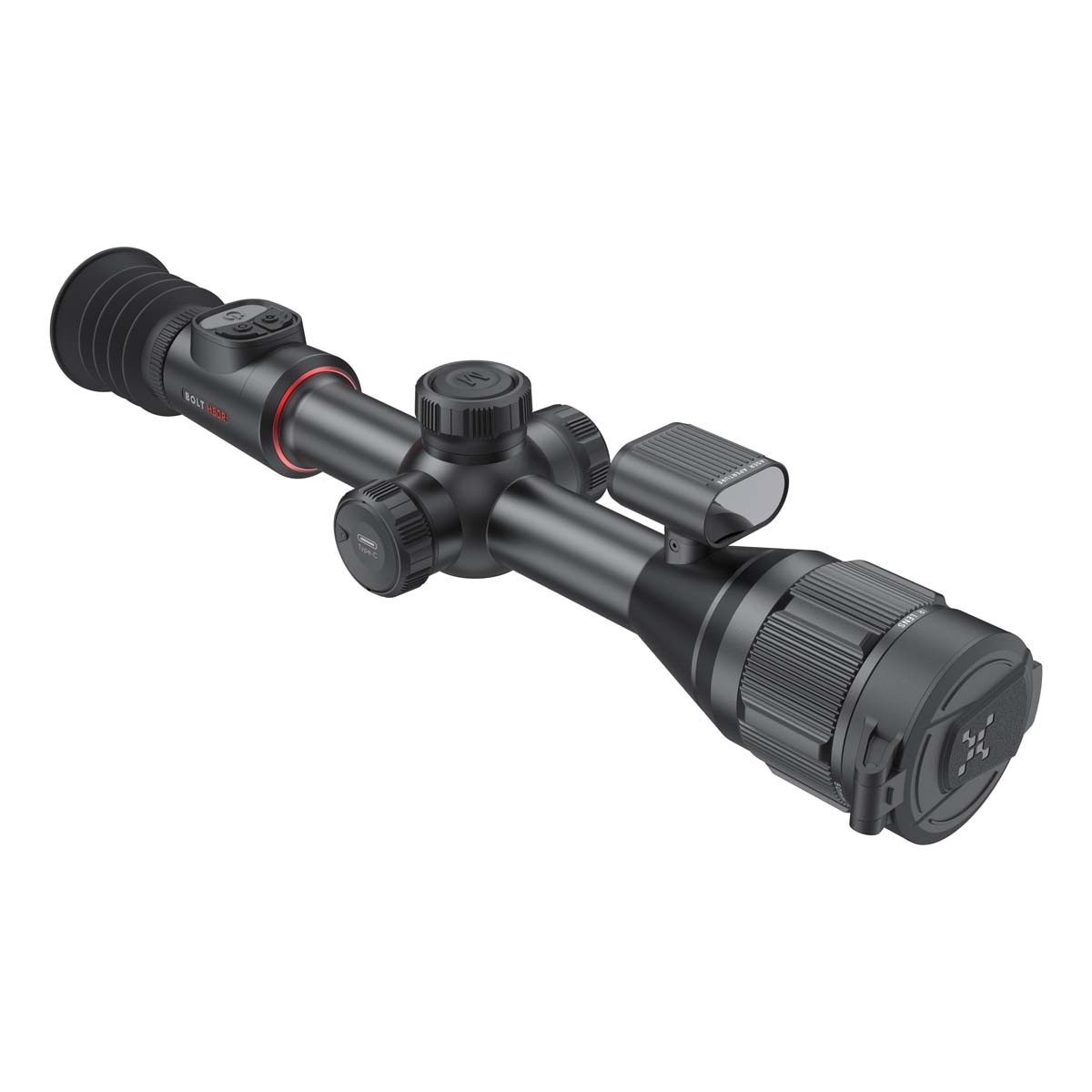

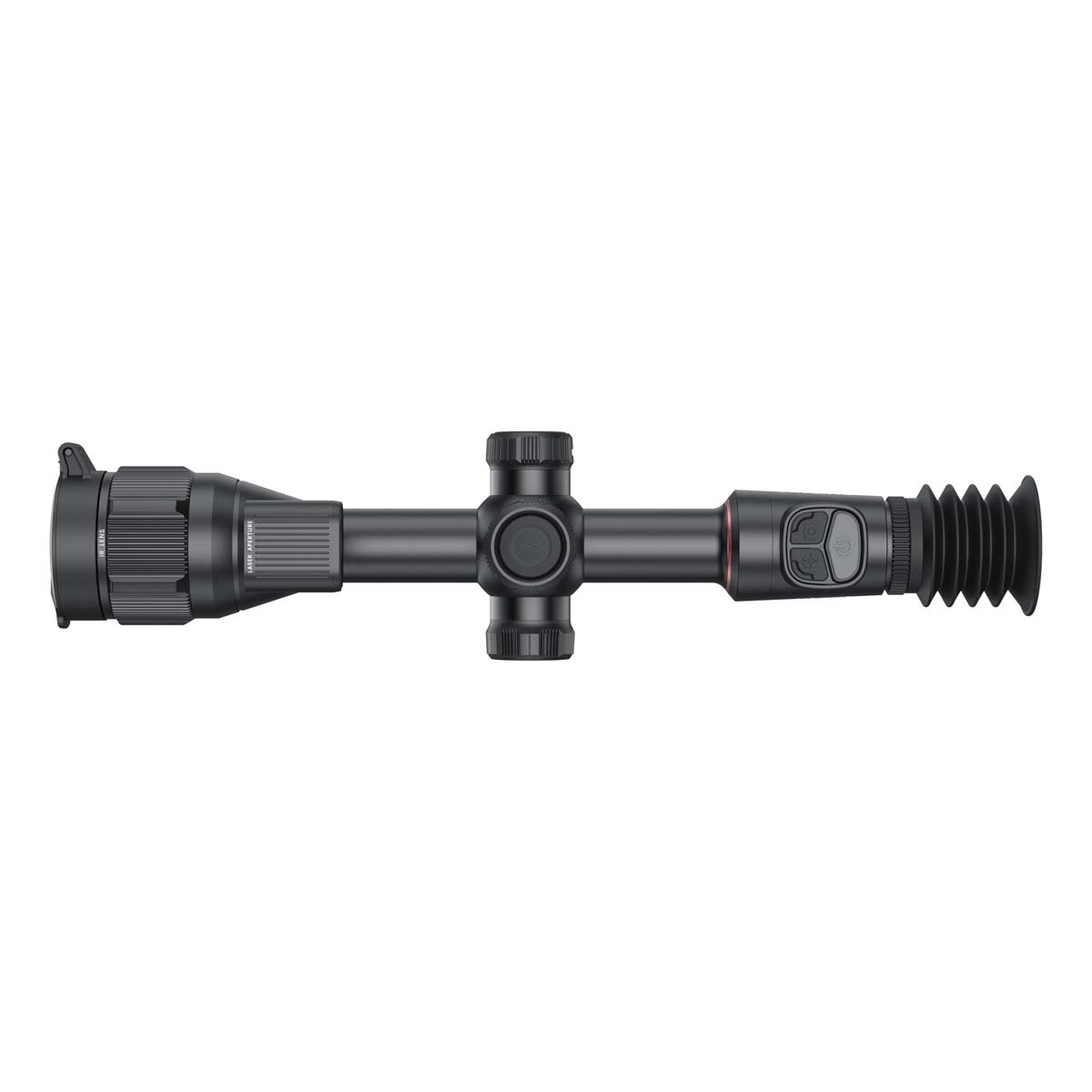

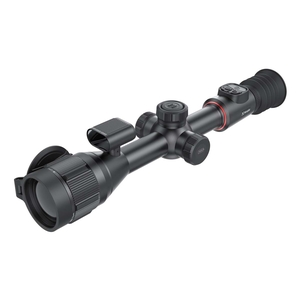

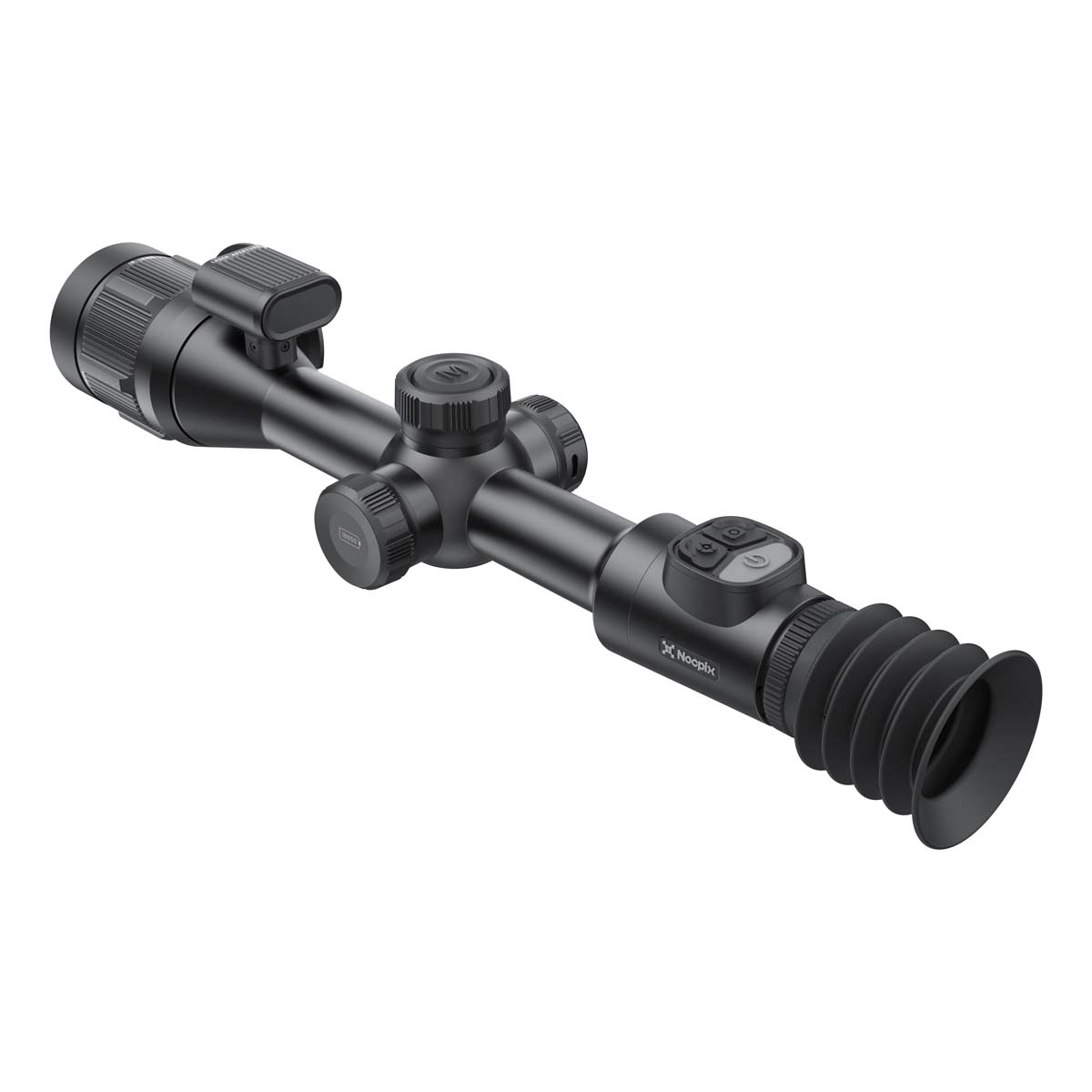

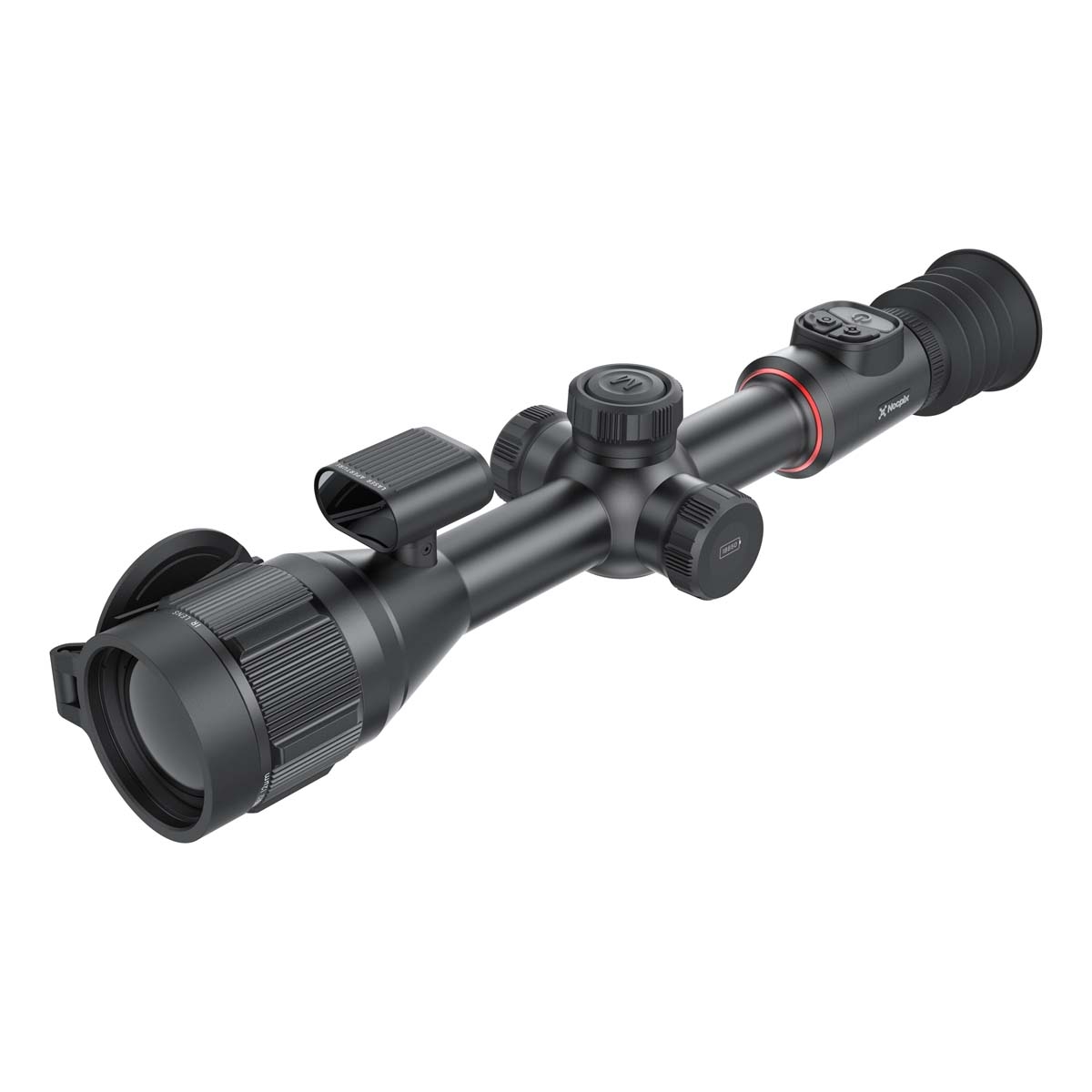

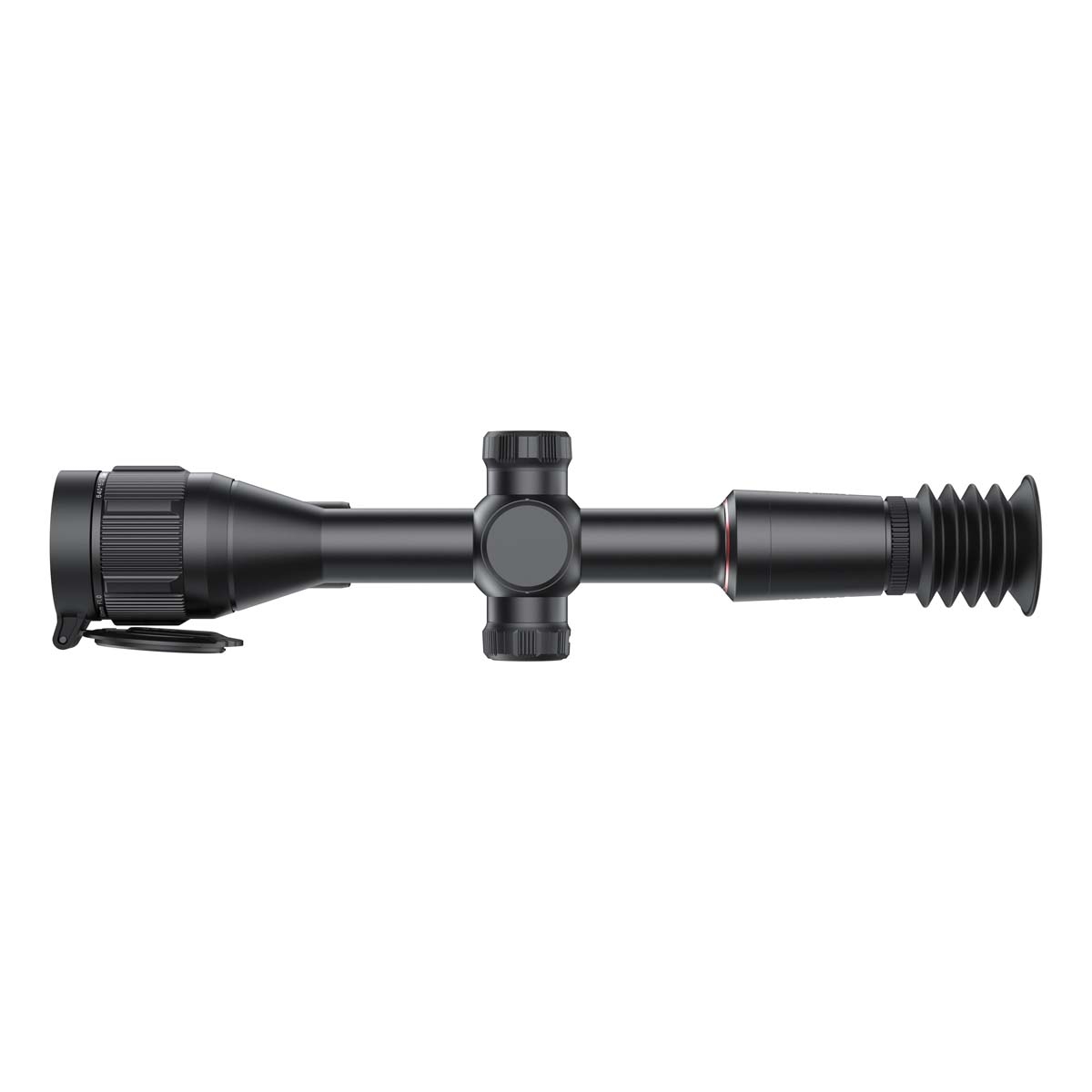

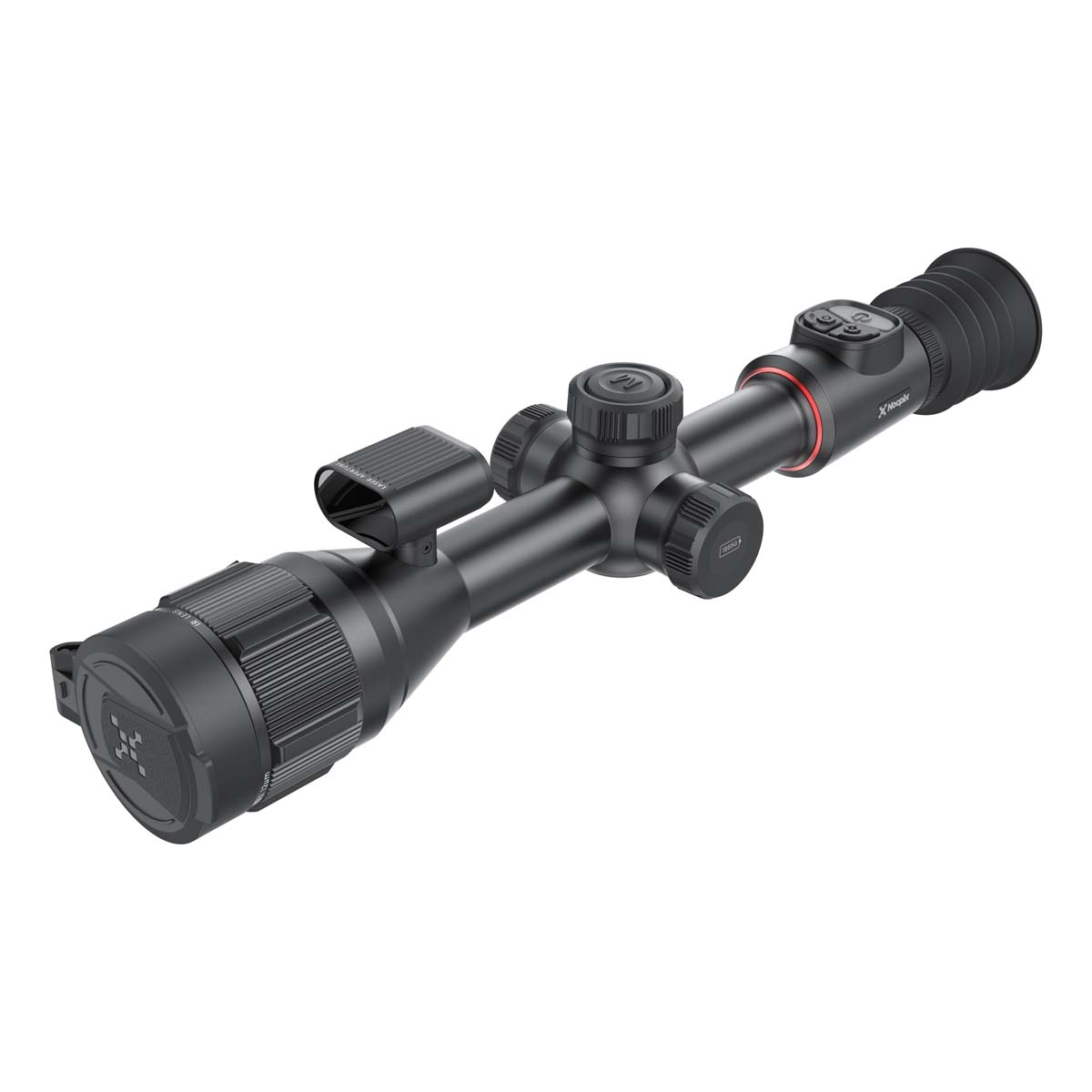

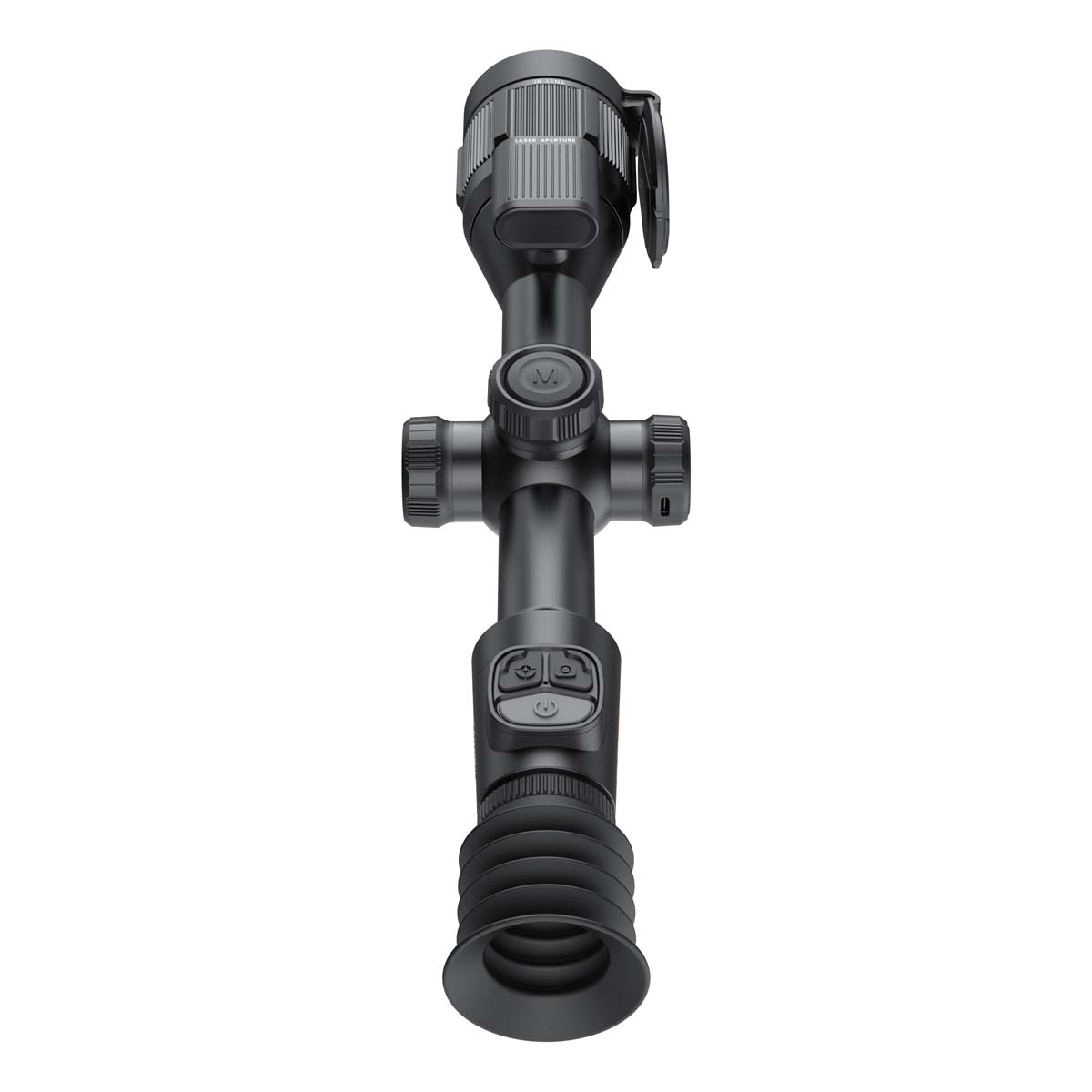

Nocpix BOLT H50R Thermal (640x512) Rifle Scope w/LRF

Nocpix BOLT H50R Craftsmanship & Construction

The BOLT H50R is built around a high-strength aluminium alloy body with a one-piece integrated structure for durability in demanding hunting conditions.

Its rugged housing is supported by 5,000 cycles of 1000G shock testing, helping maintain stable performance and shooting accuracy under repeated recoil.

Viewing Comfort & Handling

A 50mm eye relief supports a relaxed viewing posture during extended observation, while the 10mm exit pupil gives more forgiving alignment for quicker target acquisition.

Silent buttons help reduce the risk of alerting game, and the integrated level platform is designed to make accessory mounting easier while improving operational precision.

Waterproof Performance

The BOLT H50R is IP67 rated for waterproof and dustproof protection. It is designed to operate reliably from -20°C to 55°C, making it suitable for challenging night hunting conditions.

Nocpix BOLT H50R Key Features

• 640×512, 12μm thermal sensor
• ≤18mK NETD thermal sensitivity
• 60Hz frame rate for smoother target tracking
• 50mm F1.0 objective lens
• 3–24x magnification range
• 1200m periscope-type laser rangefinder
• Ballistic calculation for aiming guidance
• Reality+ AI image enhancement algorithm
• Ultra Clear Mode for improved image detail
• Built-in photo, video, audio and recoil-activated recording
• N-LINK app connectivity
• Customisable reticles, seven colour palettes and 10-level image adjustment

Materials & Care

The main body is made from high-strength aluminium alloy with a one-piece integrated structure. The dual-battery system combines a built-in 5000mAh rechargeable battery with one replaceable 18650 battery.

Nocpix BOLT H50R Specifications

• Thermal sensor: 640×512, 12μm
• NETD: ≤18mK
• Frame rate: 60Hz
• Objective lens: 50mm F1.0
• Field of view: 8.8×7.0° / 15×12m at 100m
• Magnification: 3–24x
• Laser rangefinder: 1200m
• Battery system: built-in 5000mAh rechargeable battery plus replaceable 18650 battery
• Battery life: up to 9 hours continuous use
• Waterproof and dustproof rating: IP67
• Operating temperature: -20°C to 55°C
• Shock testing: 5,000 cycles of 1000G

Nocpix BOLT H50R Review

The Nocpix BOLT H50R is a full-featured thermal riflescope designed for night hunters who want high-end thermal performance without losing practical field usability. Its core strengths are the 640×512 sensor, 50mm F1.0 lens, integrated 1200m laser rangefinder, ballistic calculation and rugged IP67-rated construction.

For hunters moving into thermal shooting, it offers a strong blend of image clarity, ranging confidence, recording capability and reliable all-night power.

Nocpix BOLT H50R Performance & Key Features

The H50R’s 640×512 sensor, ≤18mK NETD and 60Hz refresh rate are its headline performance advantages, giving it the resolution, sensitivity and smoothness needed for confident target identification. The 50mm F1.0 lens supports longer-range observation, while Reality+ AI image enhancement and Ultra Clear Mode help refine image detail.

• 3–24x magnification range for flexible thermal observation
• 1200m laser rangefinder for fast distance readings
• Ballistic calculation for instant aiming guidance
• Seven colour palettes and 10-level image adjustment
• Photo, video, audio and recoil-activated recording built in

Build Quality & Handling

The aluminium alloy body, one-piece integrated structure, IP67 protection and 1000G shock testing all point to a riflescope built for demanding hunting use. The 50mm eye relief and 10mm exit pupil add practical handling benefits, especially during extended observation or faster target acquisition.

Silent buttons and the integrated level platform also show a clear focus on field-ready operation rather than unnecessary complexity.

Is the Nocpix BOLT H50R Easy to Use?

The BOLT H50R is designed to reduce the amount of guesswork involved in night hunting. Reality+ image enhancement, the built-in LRF and ballistic calculation help simplify image interpretation, ranging and aiming.

• N-LINK app connectivity supports smarter control
• Customisable reticles and ballistic settings help tailor setup
• Silent buttons support discreet operation in the field
• Dual-battery design allows battery swapping during observation

Key Takeaways of the Nocpix BOLT H50R

The Nocpix BOLT H50R stands out for combining a 640×512 thermal sensor, 50mm F1.0 lens, 1200m laser rangefinder and ballistic calculation in a rugged, IP67-rated riflescope. Its 3–24x magnification range, Reality+ image processing and recording features make it a strong choice for hunters who want clarity, rangefinding and smart field tools in one optic. The ideal customer is a night hunter looking for a capable, confidence-building thermal riflescope with room to grow into more advanced settings.

Nocpix BOLT H50R FAQs

What is the Nocpix BOLT H50R?

The Nocpix BOLT H50R is a thermal imaging riflescope with a built-in laser rangefinder and ballistic calculation. It is designed for night hunters who want reliable thermal clarity, accurate ranging and aiming support in one compact optic.

What thermal sensor does the Nocpix BOLT H50R use?

It uses a 640×512, 12μm thermal sensor. This is paired with a ≤18mK NETD rating and 60Hz frame rate for detailed, smooth thermal imaging.

What magnification range does the Nocpix BOLT H50R offer?

The BOLT H50R offers 3–24x magnification. This gives hunters flexibility for scanning, identifying and aiming across different night hunting scenarios.

How far can the Nocpix BOLT H50R range targets?

The integrated periscope-type laser rangefinder is rated to 1200m. It works with ballistic calculation to provide distance readings and aiming guidance in the field.

Does the Nocpix BOLT H50R have ballistic calculation?

Yes, the BOLT H50R includes ballistic calculation. This helps provide aiming guidance after ranging, reducing long-distance guesswork during night hunting.

How long is the battery life of the Nocpix BOLT H50R?

The dual-battery system provides up to 9 hours of continuous use. It combines a built-in 5000mAh rechargeable battery with one replaceable 18650 battery.

Is the Nocpix BOLT H50R waterproof?

Yes, the BOLT H50R is IP67 rated for waterproof and dustproof protection. It is also designed to operate from -20°C to 55°C.

Does the Nocpix BOLT H50R record video?

Yes, it includes built-in photo, video, audio and recoil-activated recording. These features allow hunters to capture key moments without interrupting operation.

What is Reality+ on the Nocpix BOLT H50R?

Reality+ is an AI image enhancement algorithm. It is designed to enhance image detail, reduce noise and preserve a more natural thermal image for improved target identification.

How durable is the Nocpix BOLT H50R?

The BOLT H50R uses a high-strength aluminium alloy body with a one-piece integrated structure. It is IP67 rated and has undergone 5,000 cycles of 1000G shock testing for durability under repeated recoil.
