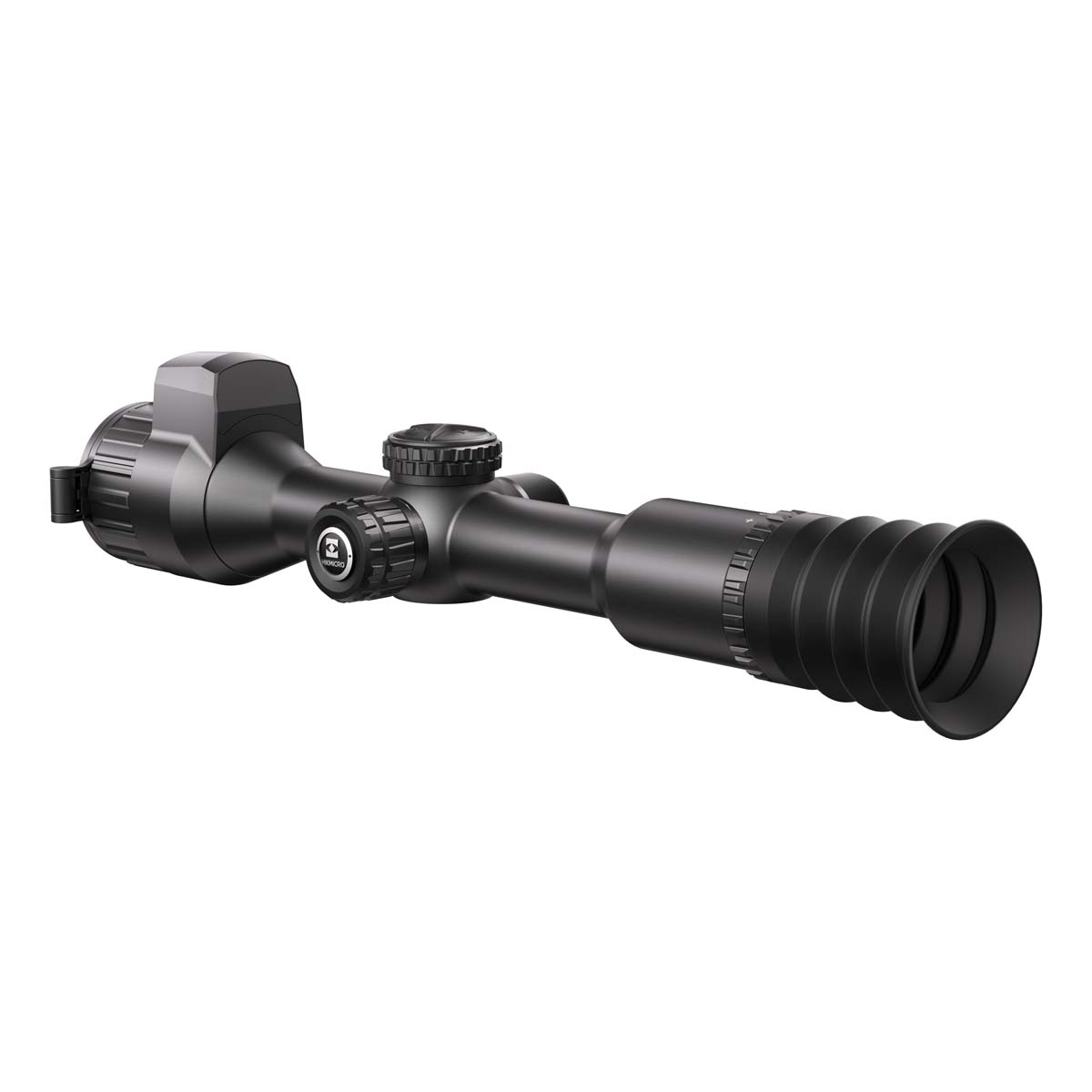

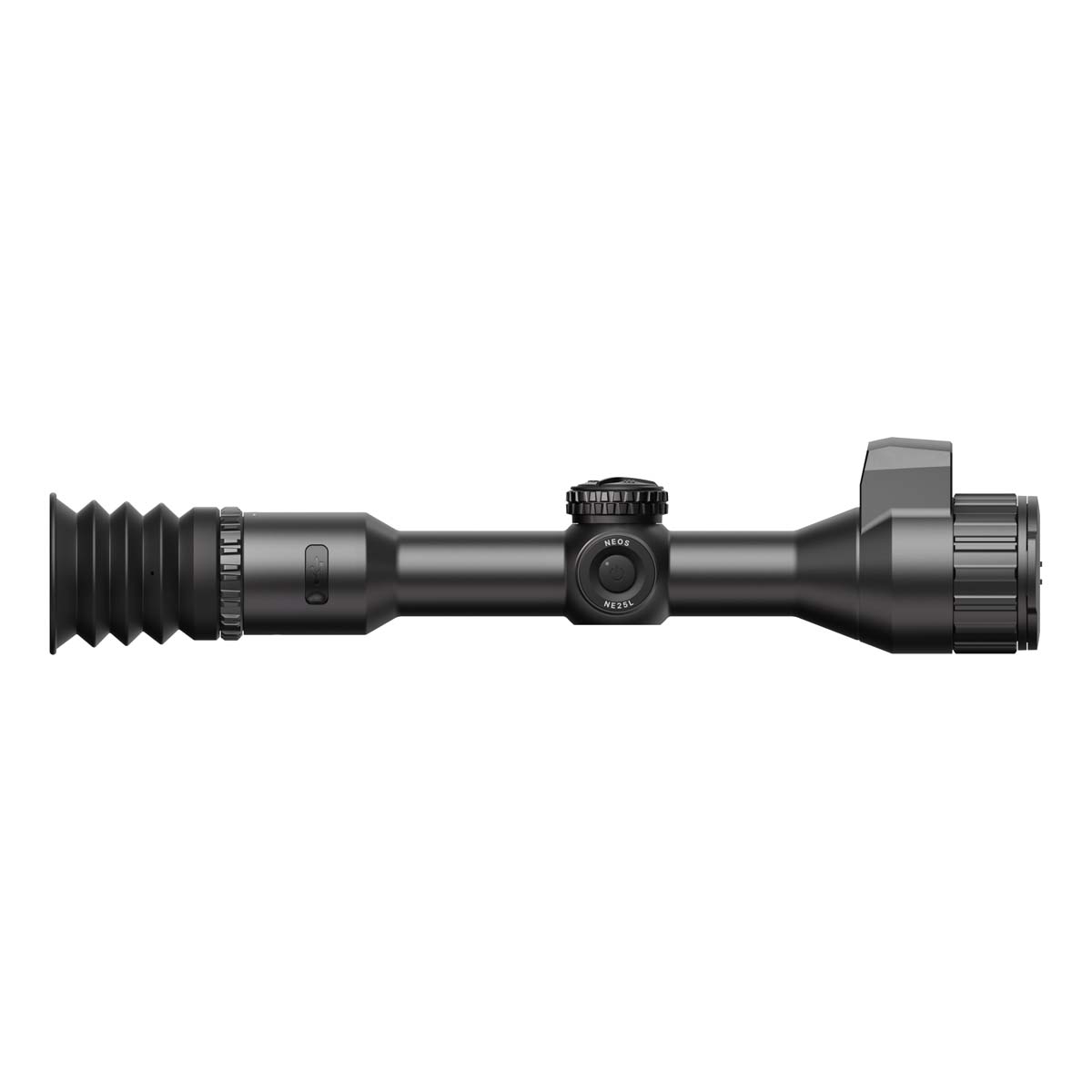

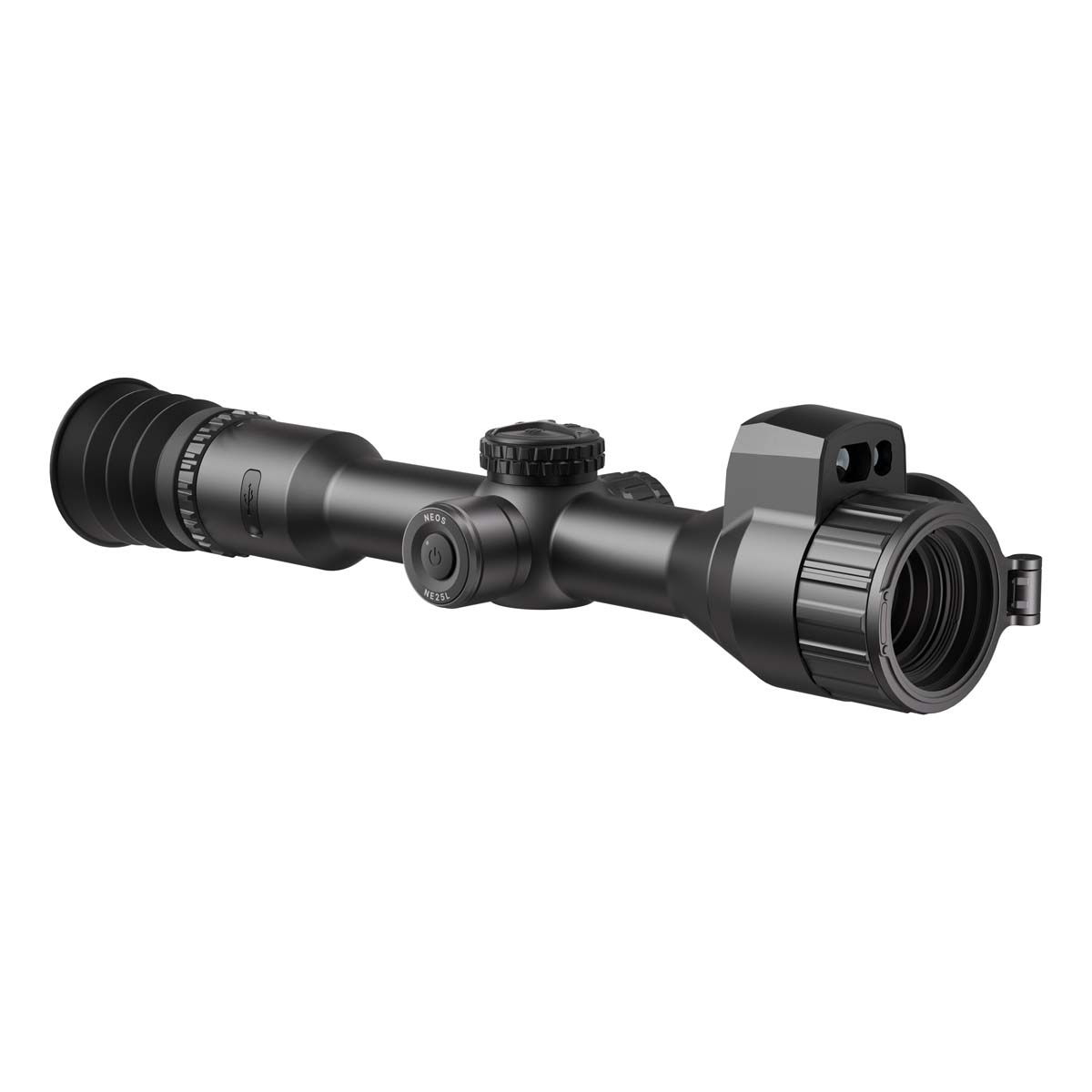

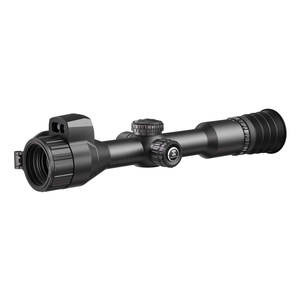

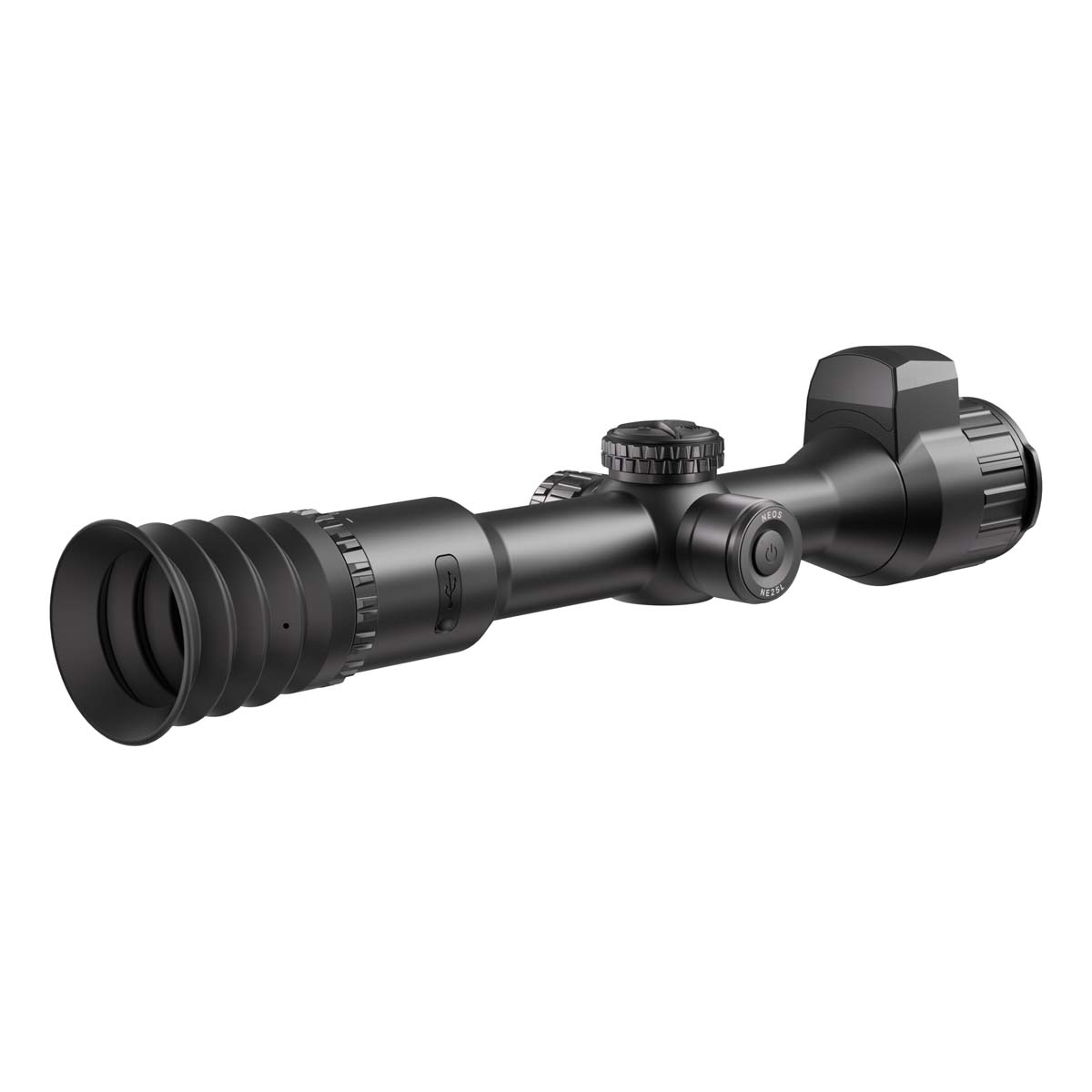

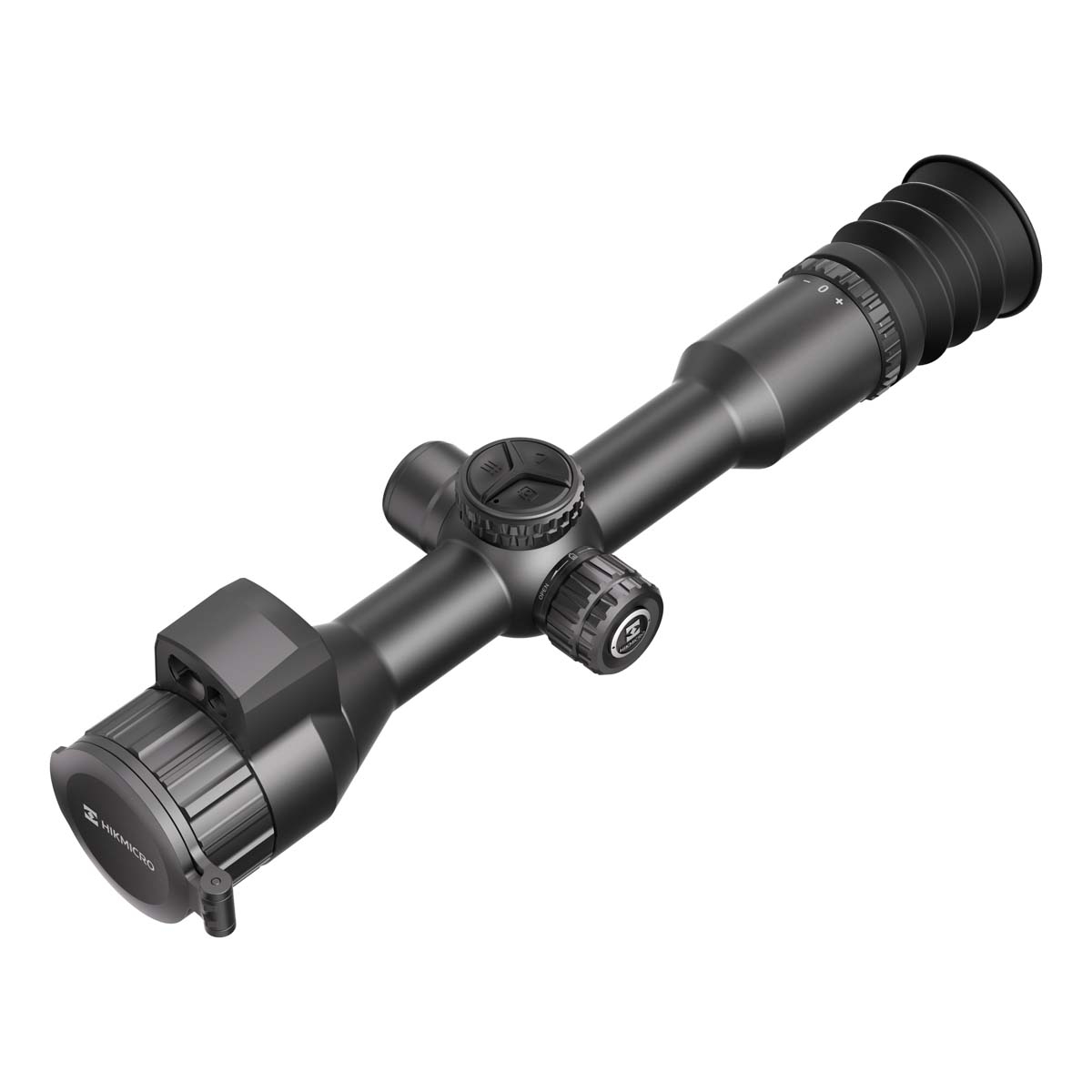

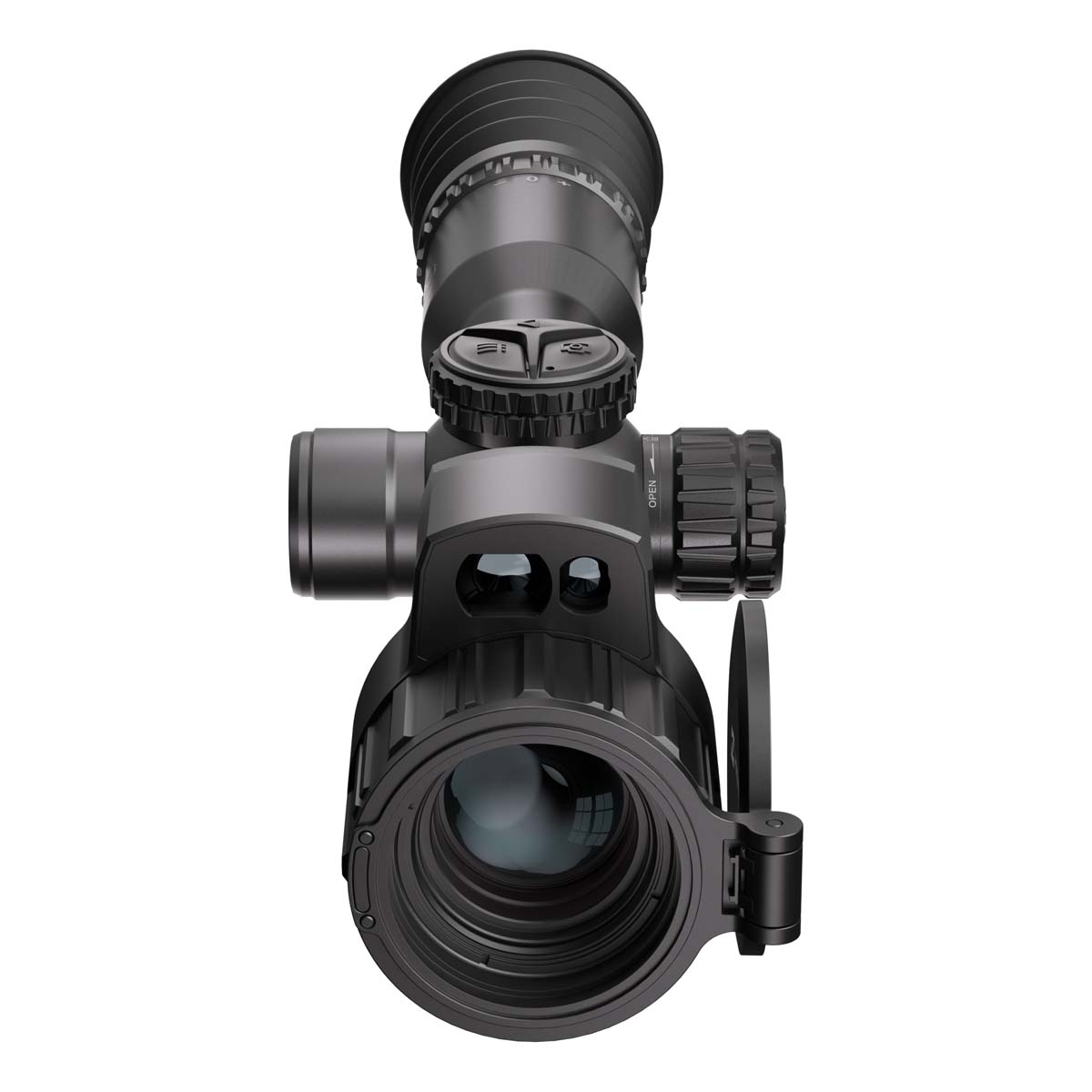

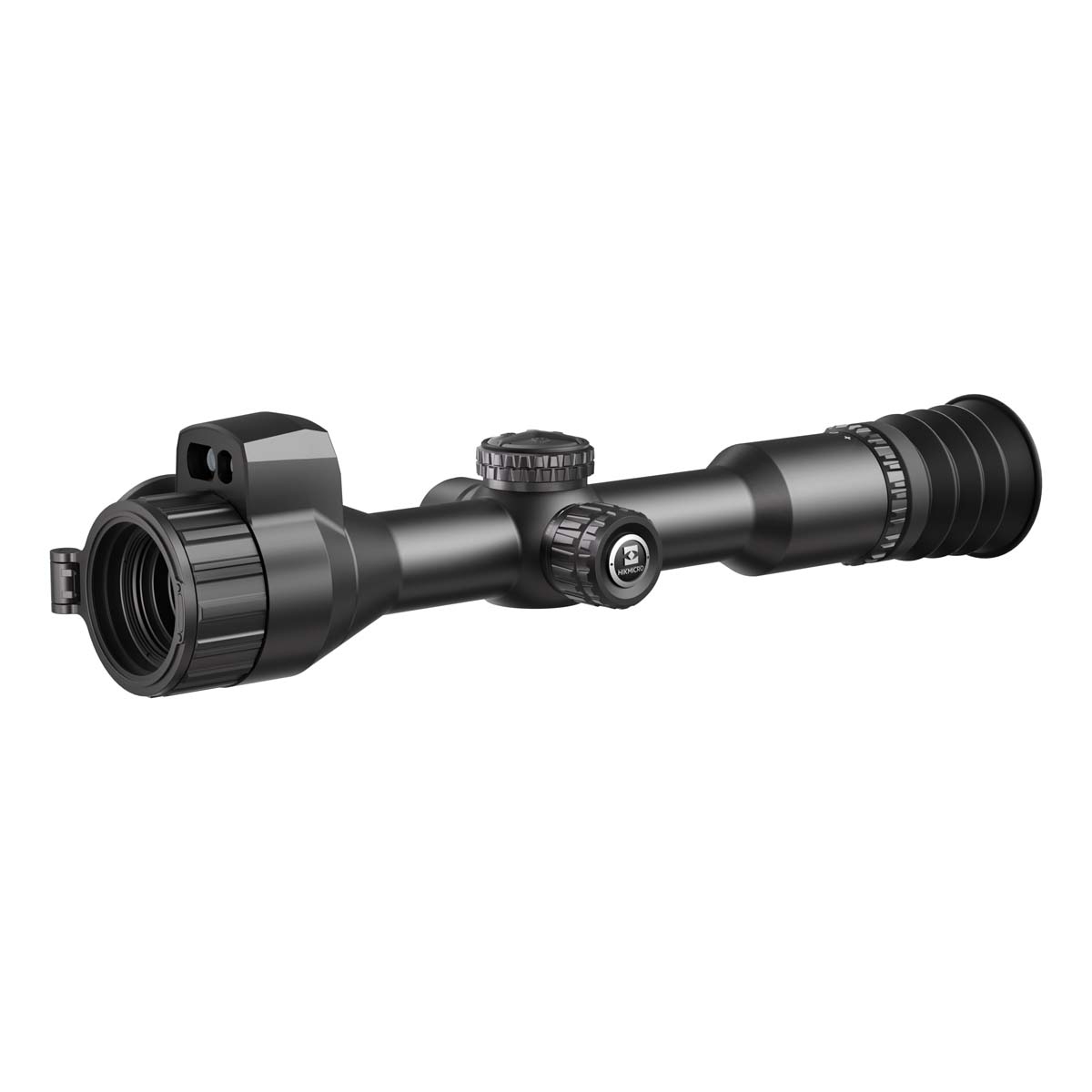

HIKMicro Neos 320px 25mm Thermal Rifle Scope w/LRF

HIKMICRO NEOS NH25L Thermal Scope

The HIKMICRO NEOS NH25L Thermal Scope is a compact and lightweight thermal imaging riflescope designed for hunters and professional shooters seeking reliable thermal detection with advanced ballistic functionality. Combining a 320 × 240 thermal sensor with a highly sensitive NETD below 18mK, the NH25L delivers detailed thermal imagery and smooth viewing performance in challenging weather and low-light conditions.

Built for demanding field use, the NH25L integrates a 1000m laser rangefinder with ballistic calculation, helping shooters make fast and accurate distance-based adjustments. Its ergonomic design, large AMOLED display and quick start-up capability make it well suited for mobile hunting and extended sessions in the field.

Craftsmanship & Construction

The NH25L is constructed around a robust VOx uncooled focal plane array thermal sensor with a durable 30mm mounting platform for compatibility with standard scope mounts. Its compact housing balances strength with portability, weighing only 550g while maintaining recoil resistance up to 1000g/0.4ms.

A focus ring system allows precise image adjustment, while the integrated HIKMICRO Shutterless Image System (HSIS), Sync Pro and Image Pro 3.0 technologies work together to provide seamless thermal imaging with reduced latency and minimal image interruption during use.

Fit & Comfort

The ergonomic profile and lightweight construction help reduce fatigue during prolonged use, while the 55mm eye relief provides comfortable viewing and safer operation under recoil. The large 0.49-inch AMOLED display delivers an immersive viewing experience with clear image presentation and intuitive visual feedback.

An adjustable diopter range from -4D to 4D allows users to tailor the display to individual eyesight preferences for improved comfort and target clarity.

Waterproof Performance

The HIKMICRO NEOS NH25L is rated to IP67 standards, providing strong protection against dust ingress and temporary water immersion. This level of environmental sealing makes it suitable for use in wet weather, harsh terrain and demanding outdoor conditions.

With an operating temperature range from -30°C to 55°C, the scope is designed to maintain reliable thermal performance across extreme climates and changing environmental conditions.

Key Features

• 320 × 240 VOx thermal sensor with NETD below 18mK sensitivity
• 3.5× to 24.5× magnification range
• Integrated 1000m laser rangefinder with ballistic calculation
• 0.49-inch AMOLED display for immersive viewing
• HIKMICRO HSIS shutterless imaging system
• Image Pro 3.0 and Sync Pro image enhancement technologies
• 1200m thermal detection range
• 64GB built-in EMMC storage
• On-board video and audio recording
• Recoil-activated recording and freeze zeroing
• Picture-in-picture viewing mode
• IP67 weather protection
• 9-hour operating time
• Quick zeroing support through the Sight App

Materials & Care

The NH25L features a durable weather-sealed housing designed for repeated outdoor use in harsh environments. The thermal system incorporates advanced optical and electronic components including a 25mm F1.0 lens and AMOLED display system.

A lint-free cloth is included for cleaning the optical surfaces. Charging is supported through the USB Type-C interface for the internal battery, while the removable external 18650 battery should be charged using the supplied battery charger.

Size & Fit Guidance

The scope uses a standard 30mm mounting interface for compatibility with common riflescope mounting systems. Measuring 345.6mm × 86.1mm × 75.8mm with a centre height of 32mm, the NH25L maintains a streamlined profile suitable for a wide range of rifle setups.

Specifications

• Sensor Resolution: 320 × 240
• Frame Rate: 50Hz
• Pixel Pitch: 12μm
• Response Waveband: 8μm to 14μm
• Lens: 25mm F1.0
• Magnification: 3.5× to 24.5×
• Field of View: 7.0° × 5.3°
• Detection Range: 1200m
• Laser Rangefinder Range: 1000m
• Display Type: 0.49-inch AMOLED
• Storage Capacity: 64GB EMMC
• Battery Runtime: Up to 9 hours
• Protection Rating: IP67
• Weight: 550g
• Eye Relief: 55mm
• Operating Temperature: -30°C to 55°C

HIKMICRO NEOS NH25L Thermal Scope Review

The HIKMICRO NEOS NH25L Thermal Scope is a feature-rich thermal riflescope designed for hunters and shooters who require reliable target detection, integrated ranging capability and advanced thermal imaging performance in a lightweight platform. Its combination of compact dimensions, long detection range and ballistic support makes it especially appealing for mobile hunting and varied shooting scenarios.

With a highly sensitive thermal sensor, large AMOLED display and integrated laser rangefinder, the NH25L balances usability with advanced functionality. Features such as recoil-activated recording, HSIS shutterless imaging and 64GB onboard storage further enhance its appeal for serious field use.

HIKMICRO NEOS NH25L Thermal Scope Performance & Key Features

The NH25L delivers smooth thermal performance thanks to its 50Hz refresh rate and advanced image processing technologies including Image Pro 3.0 and Sync Pro. The sub-18mK NETD sensitivity helps improve image detail and target separation in difficult weather conditions and low thermal contrast environments.

• 1200m thermal detection capability for long-range observation
• Integrated 1000m laser rangefinder with ballistic calculation
• 3.5× to 24.5× magnification range for flexible target engagement
• HSIS shutterless system reduces image interruption during scanning
• 64GB storage supports onboard video, audio and snapshot recording

Build Quality & Handling

The compact 550g construction keeps the NH25L highly manageable for stalking, mobile hunting and extended carry. Its IP67-rated housing provides solid weather protection against dust and moisture, while the recoil resistance rating supports use on larger calibre rifles.

The ergonomic layout, focus ring adjustment and generous eye relief contribute to comfortable handling in the field. The large AMOLED display also improves viewing comfort during prolonged observation sessions.

Is the HIKMICRO NEOS NH25L Thermal Scope Easy to Use?

The NH25L is designed with practical field usability in mind, featuring a rapid 1-second start-up time and intuitive control layout. The integrated laser rangefinder and ballistic calculation simplify long-range shooting adjustments, while freeze zeroing and multiple zero profiles help streamline setup across different rifles or ammunition types.

• Quick 1-second boot-up for fast deployment
• Freeze zeroing simplifies sighting adjustments
• Five zeroing profiles support multiple rifle setups
• Picture-in-picture mode improves target precision
• USB Type-C connectivity supports convenient charging

Key Takeaways of the HIKMICRO NEOS NH25L Thermal Scope

The HIKMICRO NEOS NH25L combines advanced thermal imaging technology, integrated ballistic support and practical field features in a lightweight and compact platform. Its strong thermal sensitivity, long detection range and built-in laser rangefinder make it particularly well suited for serious hunters and shooters operating in low-light or adverse weather conditions. While the 320 × 240 resolution prioritises efficiency and portability over ultra-high-resolution imaging, the advanced image processing technologies help maintain strong overall image clarity and usability. For shooters seeking a capable thermal riflescope with excellent field functionality and integrated ranging performance, the NH25L represents a highly versatile option.

HIKMICRO NEOS NH25L Thermal Scope FAQs

What thermal sensor does the HIKMICRO NEOS NH25L use?

The NH25L uses a VOx uncooled focal plane array thermal sensor with a resolution of 320 × 240 and a 12μm pixel pitch. It also features a NETD sensitivity below 18mK for improved thermal detail and target separation.

What is the detection range of the HIKMICRO NEOS NH25L?

The scope offers a thermal detection range of up to 1200 metres. This makes it suitable for long-range spotting and target identification in low-light and night-time environments.

Does the HIKMICRO NEOS NH25L include a laser rangefinder?

Yes, the NH25L includes an integrated laser rangefinder with a maximum measuring range of 1000 metres. The system also supports ballistic calculation for more accurate distance compensation.

What magnification range does the NH25L provide?

The scope offers a magnification range from 3.5× to 24.5×. This flexibility allows users to adapt to both shorter-range observation and longer-range target engagement scenarios.

Is the HIKMICRO NEOS NH25L waterproof?

The NH25L carries an IP67 protection rating, offering strong resistance against dust and water ingress. This makes it suitable for use in wet weather and challenging outdoor environments.

How long does the battery last in the HIKMICRO NEOS NH25L?

The scope provides up to 9 hours of continuous operation under standard conditions with Zoom Pro and the laser rangefinder activated. It uses both an internal rechargeable battery and an external rechargeable 18650 battery.

Can the HIKMICRO NEOS NH25L record video?

Yes, the NH25L supports onboard video recording, audio recording and snapshot capture. It also includes recoil-activated recording and 64GB of built-in storage for saving footage and images.

What display does the HIKMICRO NEOS NH25L use?

The scope features a 0.49-inch AMOLED display designed to provide immersive viewing and clear thermal image presentation. Adjustable brightness, contrast and tone settings allow users to customise the display to different conditions.

What mounting system does the HIKMICRO NEOS NH25L use?

The NH25L uses a standard 30mm mounting interface, making it compatible with many common riflescope mounting systems.

What thermal colour palettes are available on the NH25L?

The scope offers multiple viewing palettes including Black Hot, White Hot, Red Hot, Fusion, Red Monochrome and Green Monochrome. These options help users optimise thermal visibility in different environments and observation scenarios.
