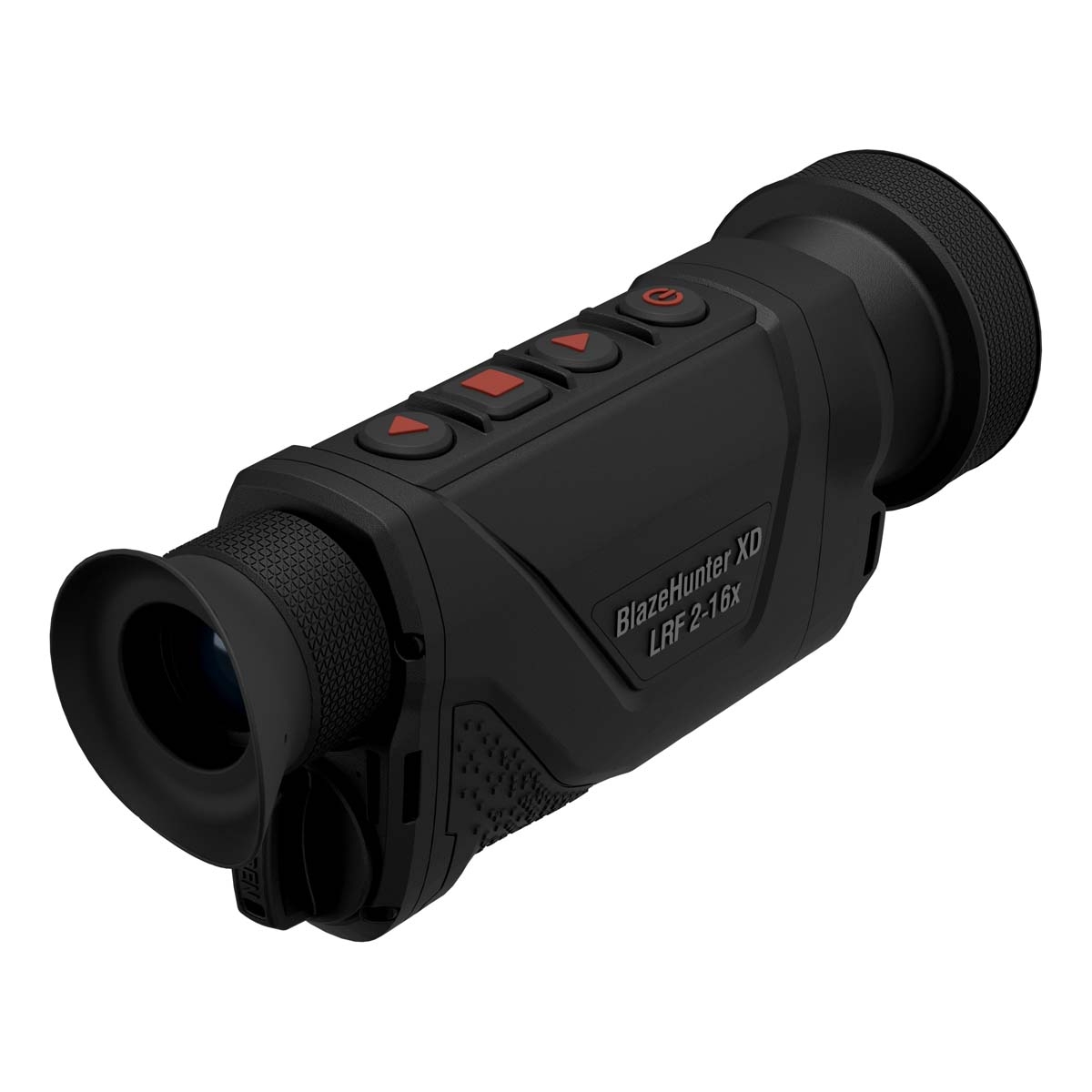

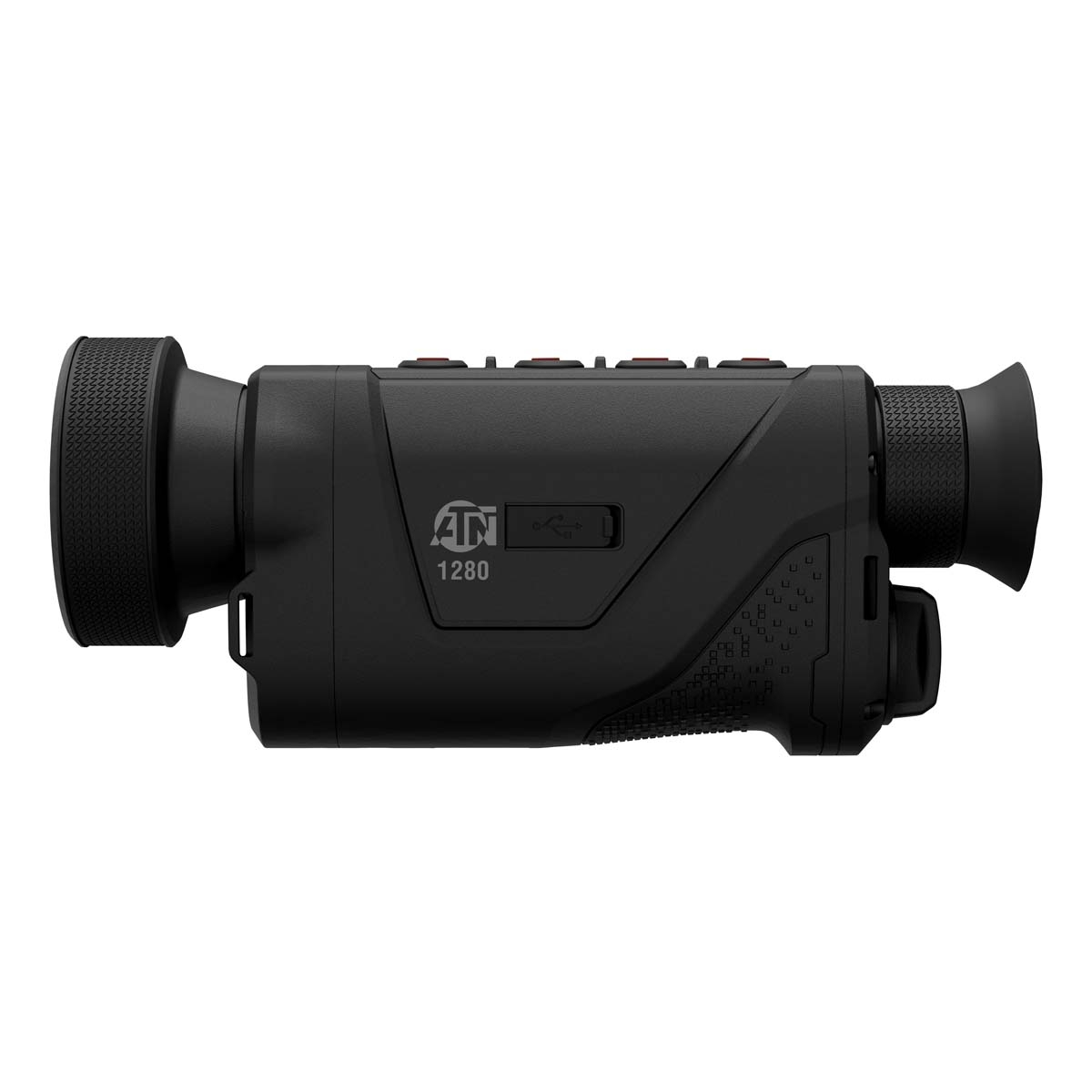

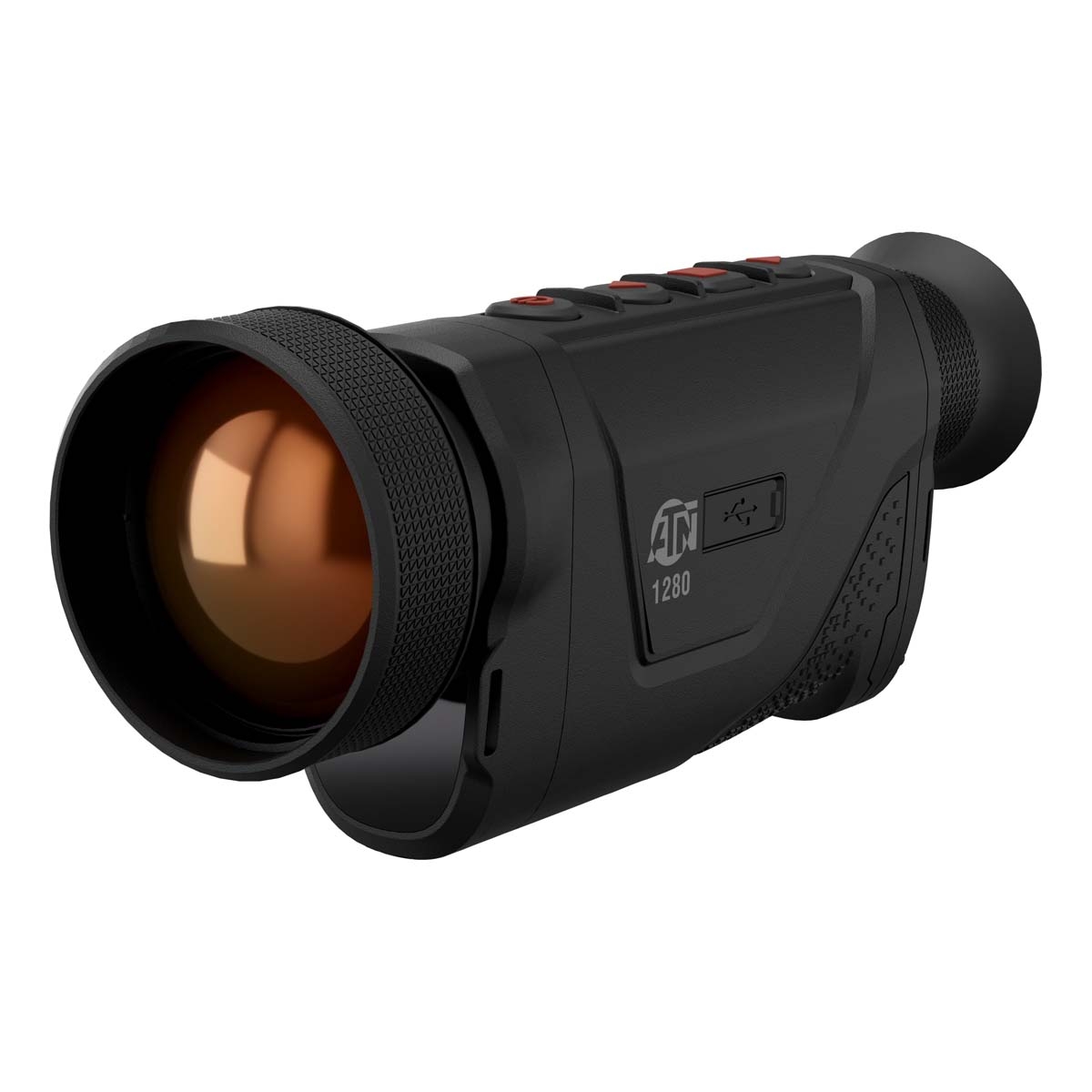

ATN BlazeHunterXD Elite (2-16x) Thermal (1280x1024) Monocular w/LRF

ATN BlazeHunter XD Thermal Monocular

The ATN BlazeHunter XD is a high-definition thermal monocular designed for hunters, outdoor professionals, landowners, maritime users, and tactical operators who require advanced thermal imaging performance in demanding conditions. Combining a 1280×1024 thermal sensor with AI-enhanced image processing, it delivers exceptional clarity for detecting heat signatures in darkness, fog, dense vegetation, and challenging terrain.

Built around ATN’s 6th Generation thermal platform, the BlazeHunter XD provides long-range thermal detection, integrated laser rangefinding, onboard recording, and wireless connectivity in a compact and rugged handheld design. Whether used for wildlife observation, patrol work, property monitoring, or search and rescue applications, it offers dependable thermal performance with a premium viewing experience.

Craftsmanship & Construction

The BlazeHunter XD is constructed with a durable magnesium alloy housing engineered for demanding field use. Its hardened, shockproof body is designed to withstand harsh outdoor environments while maintaining a lightweight and ergonomic profile for extended handheld operation.

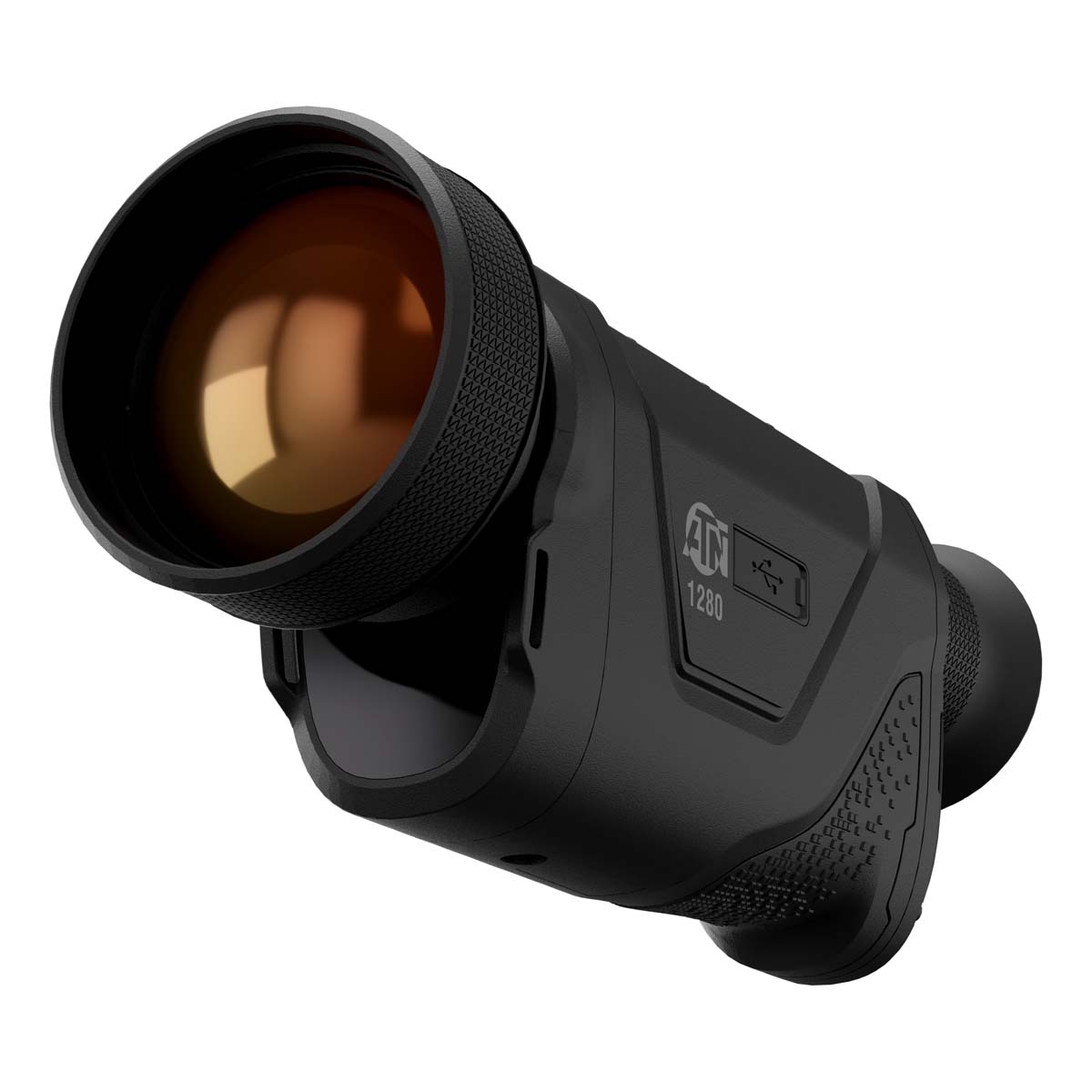

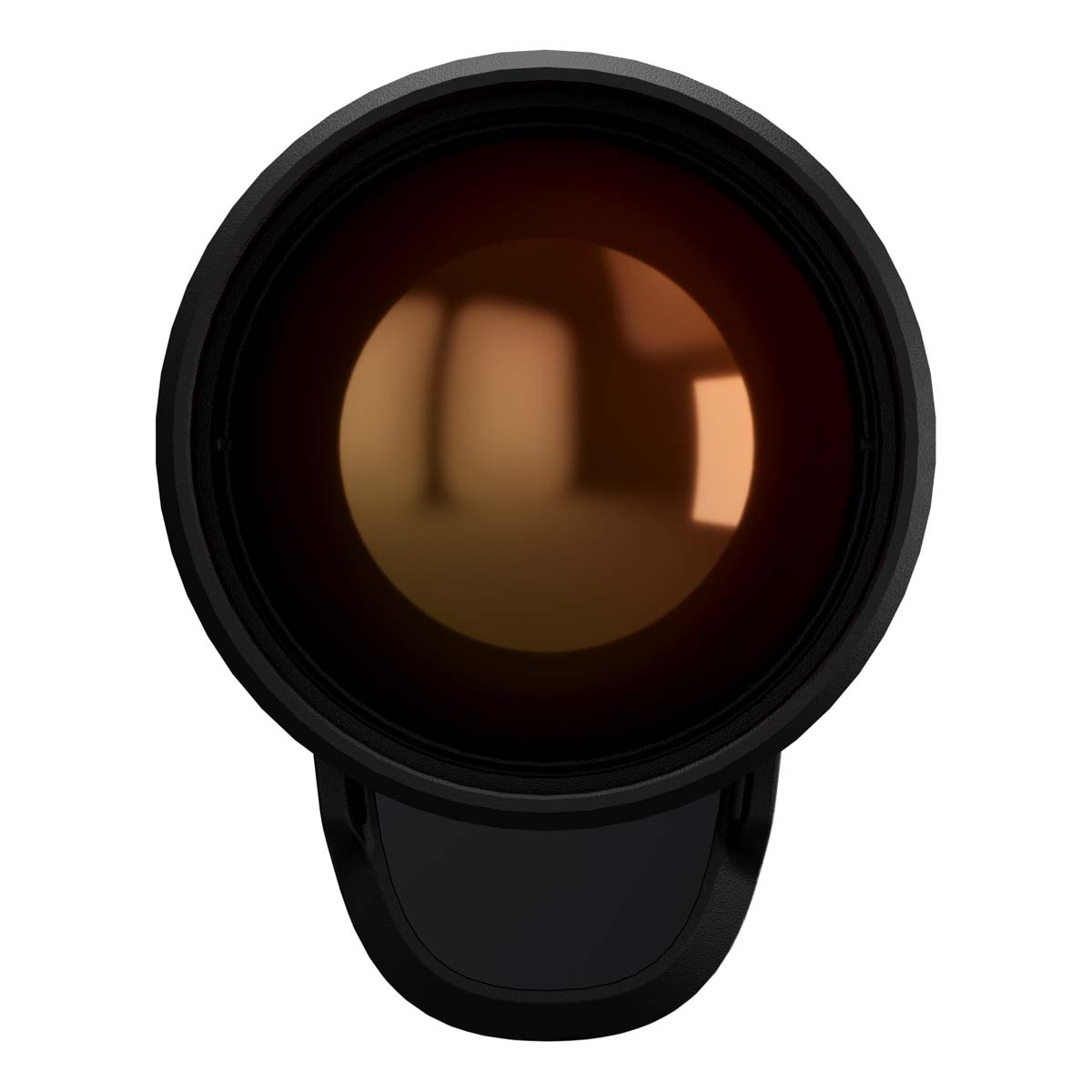

The monocular incorporates a 50mm germanium objective lens with an F/1.0 aperture to maximise thermal transmission and image detail. ATN’s proprietary SharpIR AI-enhanced imaging technology continuously sharpens and refines thermal imagery in real time, improving contrast and target definition in low-visibility conditions.

A premium 0.49-inch OLED display with 1920×1080 resolution provides crisp thermal imaging with rich contrast, sharper highlights, and fast response times for smoother target tracking and observation.

Fit & Comfort

Designed for handheld operation, the BlazeHunter XD features a balanced and compact form factor that remains comfortable during prolonged use. The lightweight 495g body helps reduce fatigue during long scanning sessions, while the textured grip surfaces improve handling in wet or cold conditions.

The adjustable diopter range from -5 to +5D allows users to fine-tune the display for individual eyesight preferences, improving viewing comfort during extended observation.

Waterproof Performance

The BlazeHunter XD carries an IP67 waterproof rating, providing reliable protection against rain, moisture, dust, and harsh outdoor conditions. It is engineered to perform in temperatures ranging from -30°C to 55°C, making it suitable for year-round field use across a wide variety of climates and environments.

The rugged thermal housing and sealed electronics are built for dependable operation during hunting trips, marine navigation, patrol operations, and remote outdoor exploration.

Key Features

• 1280×1024 Full HD thermal sensor with 12μm pixel pitch
• Ultra-sensitive ≤15mK NETD thermal performance
• ATN SharpIR AI-enhanced image processing technology
• Integrated laser rangefinder with up to 1,000m ranging capability
• 50mm germanium objective lens with F/1.0 aperture
• 2-16x magnification with 1x, 2x, 4x, and 8x digital zoom
• 1920×1080 OLED display for high-contrast thermal viewing
• Built-in Wi-Fi connectivity with ATN app support
• Onboard video and audio recording with 32GB internal storage
• Multiple thermal colour palettes including White Hot and Black Hot
• Up to 10+ hours combined battery runtime
• USB Type-C media output and external power support

Materials & Care

The BlazeHunter XD features a robust magnesium alloy construction combined with high-transmission germanium optics. The sealed housing helps protect internal electronics and thermal components from moisture, dust, and environmental exposure.

Included accessories consist of a protective pouch, eyecup, wrist strap, neck strap, USB cable, lens tissue, user manual, quick start guide, and warranty card. Care should focus on keeping the lens surfaces clean and storing the monocular in its protective case when not in use.

Size & Fit Guidance

• Dimensions: 202 x 81 x 61 mm
• Weight: 495g without battery
• Compact handheld monocular configuration
• Suitable for one-handed or two-handed operation
• Adjustable diopter range: -5 to +5D

Specifications

• Detector Type: 12μm VOx Uncooled Focal Plane Array
• Sensor Resolution: 1280×1024 Full High Definition
• Refresh Rate: 50 Hz
• Thermal Sensitivity (NETD): ≤15mK
• Field of View: 17.46° x 14.01°
• Lens System: 50mm Germanium F/1.0
• Detection Range: 3400 yd/m
• Magnification: 2-16x
• Display: 1920×1080 OLED
• Laser Rangefinder: Built-in, up to 1,000m
• Internal Storage: 32GB
• Battery Type: Removable 18650 rechargeable
• Battery Runtime: 5+ hours per battery, 10+ hours total
• Waterproof Rating: IP67
• Operating Temperature: -30°C to 55°C

ATN BlazeHunter XD Review

The ATN BlazeHunter XD is a premium thermal monocular engineered for users who demand exceptional thermal clarity, long-range detection, and advanced imaging performance. Built around ATN’s latest 6th Generation thermal platform, it combines a high-resolution 1280×1024 sensor with AI-enhanced image sharpening for highly detailed thermal observation in challenging environments.

Designed for hunting, patrol work, marine navigation, search and rescue, and outdoor exploration, the BlazeHunter XD offers a strong combination of rugged durability, extended battery life, integrated rangefinding, and wireless connectivity. Its advanced thermal sensitivity and Full HD OLED display make it particularly effective for users who require precise target identification and reliable performance after dark.

ATN BlazeHunter XD Performance & Key Features

The BlazeHunter XD delivers impressive thermal detail thanks to its 1280×1024 sensor resolution and ultra-sensitive ≤15mK NETD performance. Combined with ATN’s SharpIR AI processing, the monocular is capable of revealing subtle heat differences with excellent image sharpness and contrast.

• High-definition 1280×1024 thermal imaging sensor
• Long-range detection capability up to 3400 yd/m
• Integrated 1,000m laser rangefinder for precise distance measurement
• SharpIR AI-enhanced thermal image optimisation
• 1920×1080 OLED display with rich contrast and clarity

Build Quality & Handling

The magnesium alloy housing gives the BlazeHunter XD a robust and durable feel while keeping overall weight manageable for extended handheld use. Its shock-resistant construction and IP67 waterproof rating make it well suited to harsh outdoor environments including rain, mud, fog, and cold weather operation.

The compact dimensions and ergonomic grip design improve handling during prolonged scanning sessions, while the adjustable diopter system allows users to tailor the viewing experience for greater comfort and precision.

Is the ATN BlazeHunter XD Easy to Use?

The BlazeHunter XD is designed with practical field usability in mind, combining intuitive controls with a clear OLED display and streamlined thermal interface. Integrated Wi-Fi connectivity and onboard recording simplify image capture and sharing without requiring additional accessories.

• Simple handheld operation with ergonomic button layout
• Built-in laser rangefinder for fast distance measurements
• Multiple thermal colour palettes for adaptable viewing
• USB Type-C connectivity for charging and file transfer
• ATN app compatibility for wireless viewing and sharing

Key Takeaways of the ATN BlazeHunter XD

The ATN BlazeHunter XD stands out as a highly capable thermal monocular that combines advanced thermal imaging resolution, AI-enhanced clarity, and practical field-ready features in a compact platform. Its combination of long-range detection, integrated laser rangefinding, Full HD OLED display, and rugged waterproof construction makes it particularly well suited to demanding outdoor and professional applications. While its advanced specification places it firmly in the premium thermal category, the imaging performance and feature set justify its position for users who require maximum detail and reliability. For hunters, landowners, marine users, tactical operators, and serious outdoor enthusiasts, the BlazeHunter XD offers a versatile and highly refined thermal viewing solution.

ATN BlazeHunter XD FAQs

What thermal sensor does the ATN BlazeHunter XD use?

The BlazeHunter XD uses a 1280×1024 Full HD thermal sensor with a 12μm VOx uncooled focal plane array design. This high-resolution sensor provides significantly greater detail than many standard thermal monoculars, helping users identify targets and heat signatures more clearly at distance.

How far can the ATN BlazeHunter XD detect targets?

The BlazeHunter XD offers a detection range of up to 3400 yd/m. This extended thermal detection capability makes it suitable for long-range observation, wildlife tracking, perimeter monitoring, and wide-area scanning in low-light or zero-light conditions.

Does the ATN BlazeHunter XD include a laser rangefinder?

Yes, the monocular features a built-in laser rangefinder capable of measuring distances up to 1,000 metres with ±1m accuracy. This integrated system allows users to quickly determine precise distances during hunting, patrol, navigation, or field observation tasks.

What display does the BlazeHunter XD use?

The monocular features a 0.49-inch OLED display with 1920×1080 resolution. OLED technology provides strong contrast, deeper blacks, and improved visual clarity, helping users identify heat signatures more effectively in demanding environments.

Is the ATN BlazeHunter XD waterproof?

Yes, the BlazeHunter XD carries an IP67 waterproof rating. This level of environmental protection helps shield the monocular against rain, dust, and wet operating conditions, making it suitable for outdoor use throughout the year.

What colour palettes are available on the BlazeHunter XD?

The monocular includes six thermal colour palettes: White Hot, Black Hot, High Red, Green Hot, Sepia, and Ironbow. These viewing modes allow users to tailor thermal contrast and visibility depending on terrain, weather conditions, and personal viewing preference.

Can the ATN BlazeHunter XD record video and audio?

Yes, the BlazeHunter XD supports onboard video and audio recording using its built-in microphone and 32GB internal storage. Users can capture hunts, patrol activity, wildlife encounters, or thermal observations directly through the monocular.

How long does the battery last in the BlazeHunter XD?

The system uses removable rechargeable 18650 batteries and includes two batteries in the box. Each battery provides more than 5 hours of operation, delivering a combined runtime of over 10 hours for extended field use.

Does the BlazeHunter XD support Wi-Fi connectivity?

Yes, built-in Wi-Fi allows the monocular to connect wirelessly to smartphones and tablets using the ATN Blaze app. This enables live viewing, sharing, and remote monitoring without requiring internet access.

What environments is the ATN BlazeHunter XD designed for?

The BlazeHunter XD is designed for a wide range of outdoor and professional applications including hunting, wildlife observation, search and rescue, marine navigation, law enforcement patrol, industrial inspection, and remote outdoor exploration. Its thermal performance and rugged construction make it adaptable to demanding operating conditions.
