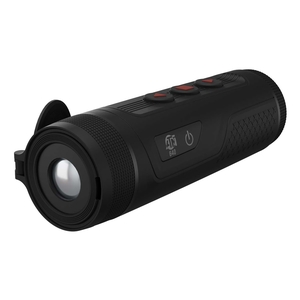

ATN BlazeTrek 619 (1.5-12x) Thermal (640x512) Monocular

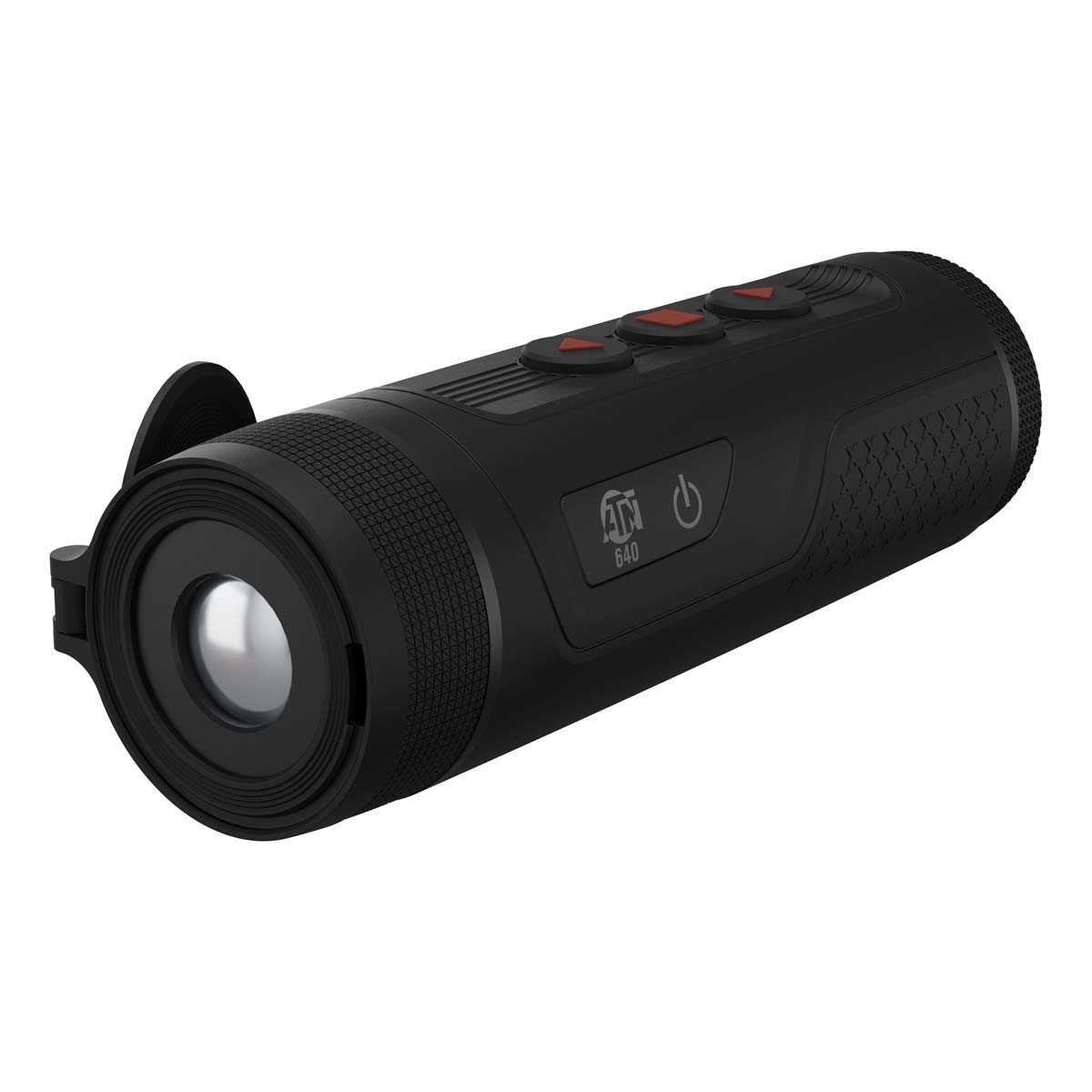

ATN BlazeTrek 619 Thermal Monocular

Craftsmanship & Construction

The BlazeTrek 619 is engineered with a durable weather-resistant body designed for demanding field use across challenging outdoor environments. Its compact dimensions and lightweight 320g construction support comfortable handheld operation during extended observation sessions.

The optic incorporates a 19mm germanium F/1.0 lens system designed to maximise thermal transmission and image clarity. Combined with the 640x512 thermal sensor, 12μm VOx uncooled focal plane array technology and SharpIR image enhancement, the system delivers improved thermal detail recognition and enhanced scene awareness.

Fit & Comfort

The lightweight handheld design supports comfortable one-handed operation while remaining compact enough for convenient transport in the field. The wider field of view provided by the 19mm lens system makes the monocular especially effective for scanning larger areas and tracking moving targets.

Manual focus adjustment from 1 metre to infinity allows users to fine-tune image sharpness according to viewing distance and terrain conditions. The adjustable diopter range also supports improved viewing comfort for a wide range of users.

Waterproof Performance

The BlazeTrek 619 carries an IP67 waterproof rating, helping protect the monocular against rain, dust and temporary water immersion during demanding outdoor use. Its rugged environmental protection supports dependable operation across changing weather conditions.

The optic is designed to function in temperatures ranging from -30°C to 55°C, allowing reliable thermal performance in both cold winter environments and warmer operating conditions.

Key Features

• 640x512 thermal sensor with 12μm VOx uncooled focal plane array
• 1.5-12x magnification range for wide-area thermal observation
• 19mm germanium F/1.0 lens system
• Detection range up to 1000 metres
• 22.8° x 18.3° wide field of view
• 800x600 OLED display for clear thermal image presentation
• SharpIR image enhancement technology
• ≤18mK NETD thermal sensitivity
• 50Hz refresh rate for smooth thermal imaging
• Digital zoom options of 1x, 2x, 4x and 8x
• Integrated image capture and video/audio recording
• Built-in Wi-Fi hotspot with ATN Connect 6 app support
• 32GB internal storage capacity
• USB Type-C media output and external power support
• IP67 waterproof construction
• Approximately 6.5 hours battery life

Materials & Care

The BlazeTrek 619 combines a durable protective housing with a precision germanium lens system engineered for thermal imaging performance in demanding environments. The integrated rechargeable battery system supports convenient field operation while reducing the need for battery replacements.

USB Type-C connectivity allows straightforward charging and media transfer. To maintain image quality and long-term performance, optical surfaces should be kept clean and protected during transport and storage.

Size & Fit Guidance

• Dimensions: 158mm x 57mm x 50mm
• Weight with battery: approximately 320g
• Manual focus adjustment from 1 metre to infinity
• Compact handheld format designed for field portability

Specifications

• Sensor Resolution: 640x512
• Detector Type: 12μm VOx Uncooled Focal Plane Array
• Magnification: 1.5-12x
• Lens System: 19mm Germanium F/1.0
• Field of View: 22.8° x 18.3°
• Display Resolution: 800x600 OLED
• Refresh Rate: 50Hz
• Thermal Sensitivity: ≤18mK NETD
• Detection Range: Up to 1000m
• Digital Zoom: 1x / 2x / 4x / 8x
• Storage Capacity: 32GB Internal
• Battery Type: Internal Rechargeable
• Battery Life: Approximately 6.5 Hours
• Waterproof Rating: IP67
• Operating Temperature: -30°C to 55°C
• Connectivity: Built-in Wi-Fi Hotspot, USB Type-C
• Image Capture: Yes
• Video and Audio Recording: Yes
• Colour Palettes: White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia
• Warranty: 5 Years

ATN BlazeTrek 619 Thermal Monocular Review

The ATN BlazeTrek 619 Thermal Monocular is designed for users who prioritise enhanced thermal image detail and wider scanning capability within a compact handheld format. Featuring a 640x512 thermal sensor and a wide 22.8° x 18.3° field of view, it is particularly effective for detecting and tracking thermal signatures across larger landscapes.

Its lightweight construction, IP67 weather protection and integrated recording functionality make it highly suitable for hunting, wildlife observation and professional outdoor monitoring. The combination of high-resolution thermal imaging and smooth 50Hz performance helps provide a confident and responsive viewing experience in varied field conditions.

ATN BlazeTrek 619 Thermal Monocular Performance & Key Features

The BlazeTrek 619 delivers improved thermal detail and scene awareness thanks to its 640x512 sensor resolution and ≤18mK NETD sensitivity. The wide field of view makes it especially effective for scanning open terrain and locating moving heat signatures quickly.

• 640x512 thermal sensor for enhanced thermal image detail
• Wide 22.8° x 18.3° field of view improves area scanning
• SharpIR technology enhances thermal contrast and detail
• 800x600 OLED display provides clear image presentation
• Integrated recording and Wi-Fi support modern field functionality

Build Quality & Handling

The compact 320g construction keeps the BlazeTrek 619 highly portable for prolonged handheld use, while the IP67 waterproof housing supports reliable operation in difficult weather conditions. Its ergonomic layout and lightweight design help minimise fatigue during extended observation sessions.

The germanium lens system and robust housing contribute to dependable durability for regular field use, while manual focus adjustment allows users to quickly optimise image sharpness as conditions change.

Is the ATN BlazeTrek 619 Thermal Monocular Easy to Use?

The BlazeTrek 619 is designed with straightforward controls and intuitive operation suitable for a wide range of users. Its digital zoom system, multiple colour palettes and integrated Wi-Fi connectivity allow users to adapt quickly to different viewing environments and recording requirements.

• Manual focus adjustment from 1m to infinity
• Simple digital zoom controls with multiple zoom stages
• Built-in Wi-Fi hotspot with ATN Connect 6 support
• USB Type-C charging and media transfer connectivity

Key Takeaways of the ATN BlazeTrek 619 Thermal Monocular

The ATN BlazeTrek 619 combines enhanced thermal resolution, wide-area scanning capability and practical field usability within a compact handheld design. Its 640x512 thermal sensor and broad field of view make it particularly well suited to users prioritising improved situational awareness and smoother target detection across larger environments. Although its lower base magnification focuses more on wide-area observation than long-range detail, the BlazeTrek 619 remains an excellent thermal monocular for hunters, wildlife observers and outdoor professionals seeking high-resolution thermal performance in a lightweight package.

ATN BlazeTrek 619 Thermal Monocular FAQs

What magnification range does the ATN BlazeTrek 619 Thermal Monocular offer?

The BlazeTrek 619 provides a 1.5-12x magnification range, making it particularly effective for wide-area thermal scanning and rapid target detection.

What is the detection range of the ATN BlazeTrek 619?

The monocular offers thermal detection capability out to 1000 metres, allowing users to identify heat signatures at extended distances.

What sensor resolution does the ATN BlazeTrek 619 use?

The BlazeTrek 619 features a 640x512 thermal sensor resolution, delivering enhanced thermal image detail and improved scene clarity compared to lower-resolution thermal systems.

Is the ATN BlazeTrek 619 waterproof?

Yes, the BlazeTrek 619 features an IP67 waterproof rating, helping protect the monocular from rain, dust and temporary immersion during outdoor use.

How long does the battery last in the ATN BlazeTrek 619?

The internal rechargeable battery provides approximately 6.5 hours of operation under normal usage conditions.

Does the ATN BlazeTrek 619 support video recording?

Yes, the monocular supports image capture along with video and audio recording. Files can be stored internally using the integrated 32GB storage capacity.

What type of display does the BlazeTrek 619 use?

The unit uses an 800x600 OLED display designed to provide clear thermal image rendering with strong contrast and viewing clarity.

Can the ATN BlazeTrek 619 connect to a smartphone?

Yes, the monocular includes a built-in Wi-Fi hotspot and supports the ATN Connect 6 application for iOS and Android devices.

What colour palettes are available on the BlazeTrek 619?

The monocular includes White Hot, Black Hot, Iron Red, Alarm, Green Hot and Sepia colour palette options for adaptable thermal viewing in varying conditions.

What are the dimensions and weight of the ATN BlazeTrek 619?

The BlazeTrek 619 measures 158mm x 57mm x 50mm and weighs approximately 320g including the battery, supporting comfortable handheld use during extended observation sessions.
