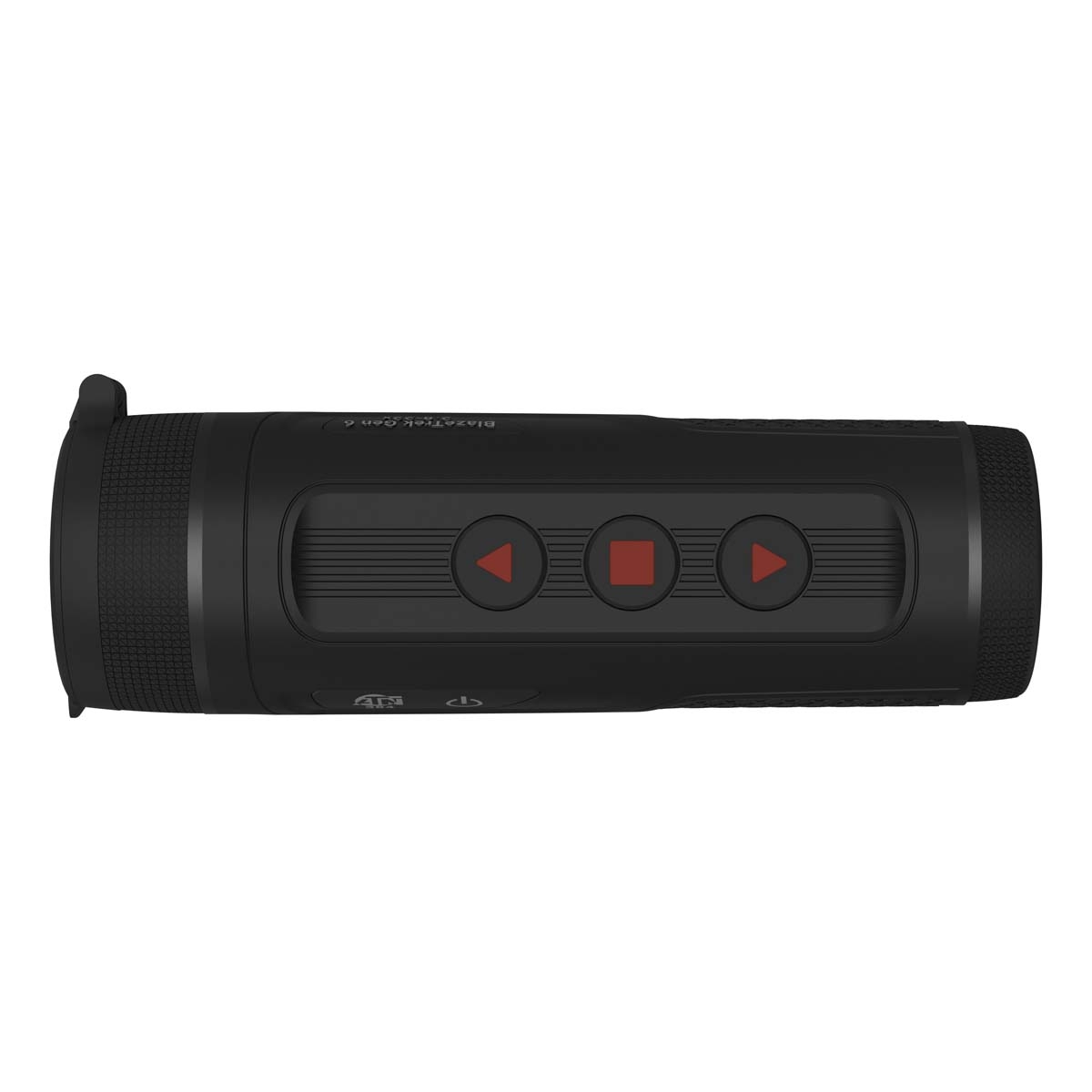

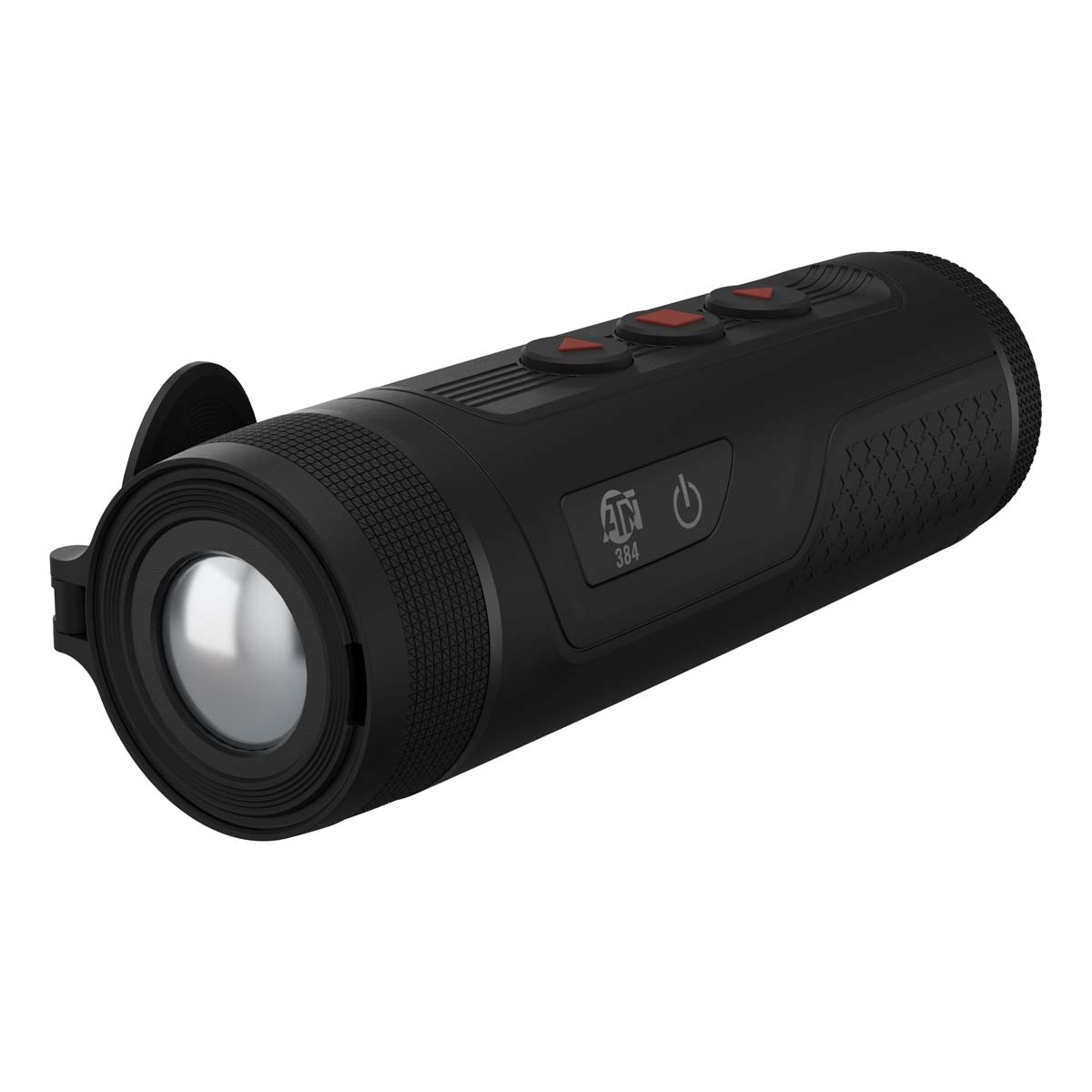

ATN BlazeTrek 325 (2.8-22x) Thermal (384x288) Monocular

ATN BlazeTrek 325 Thermal Monocular

Craftsmanship & Construction

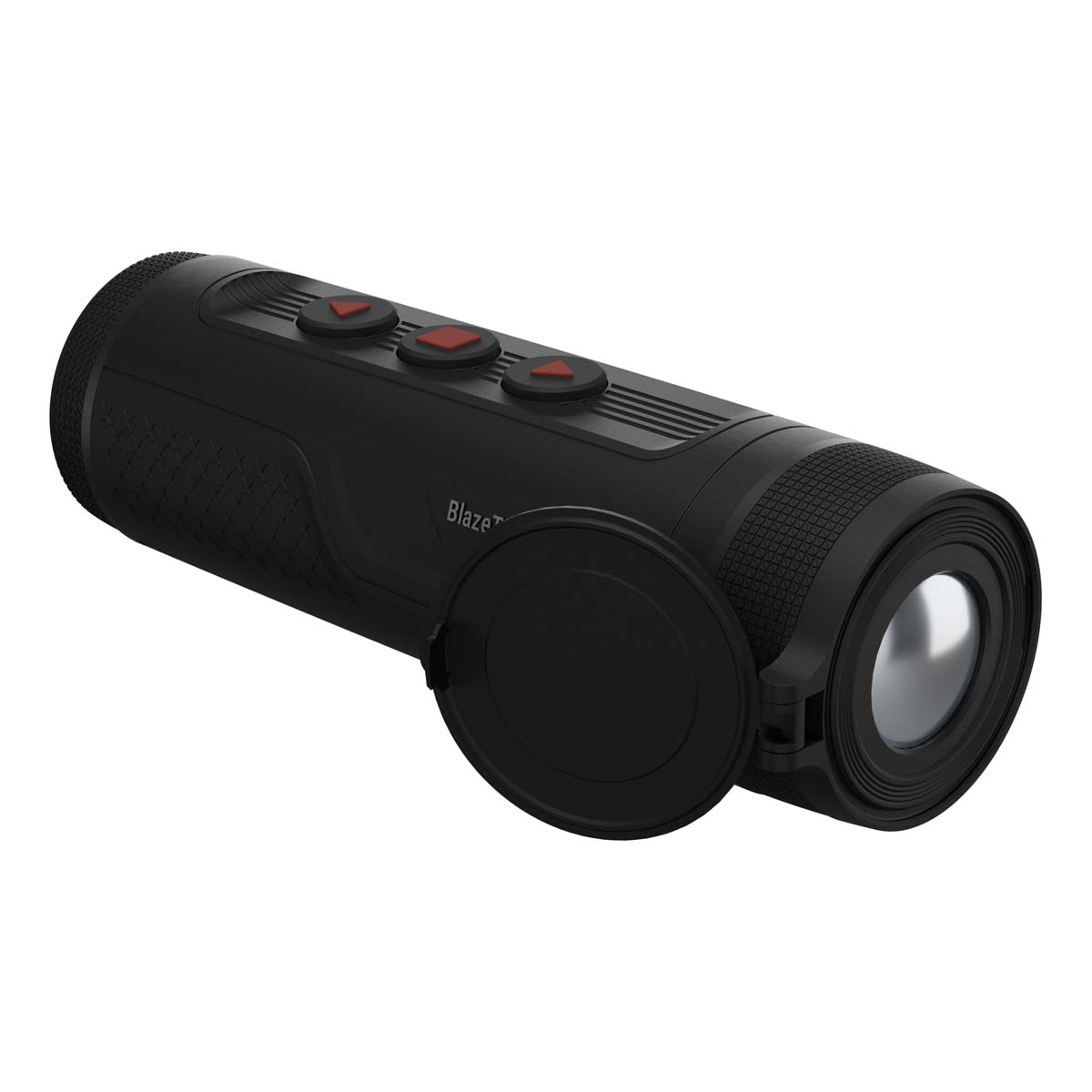

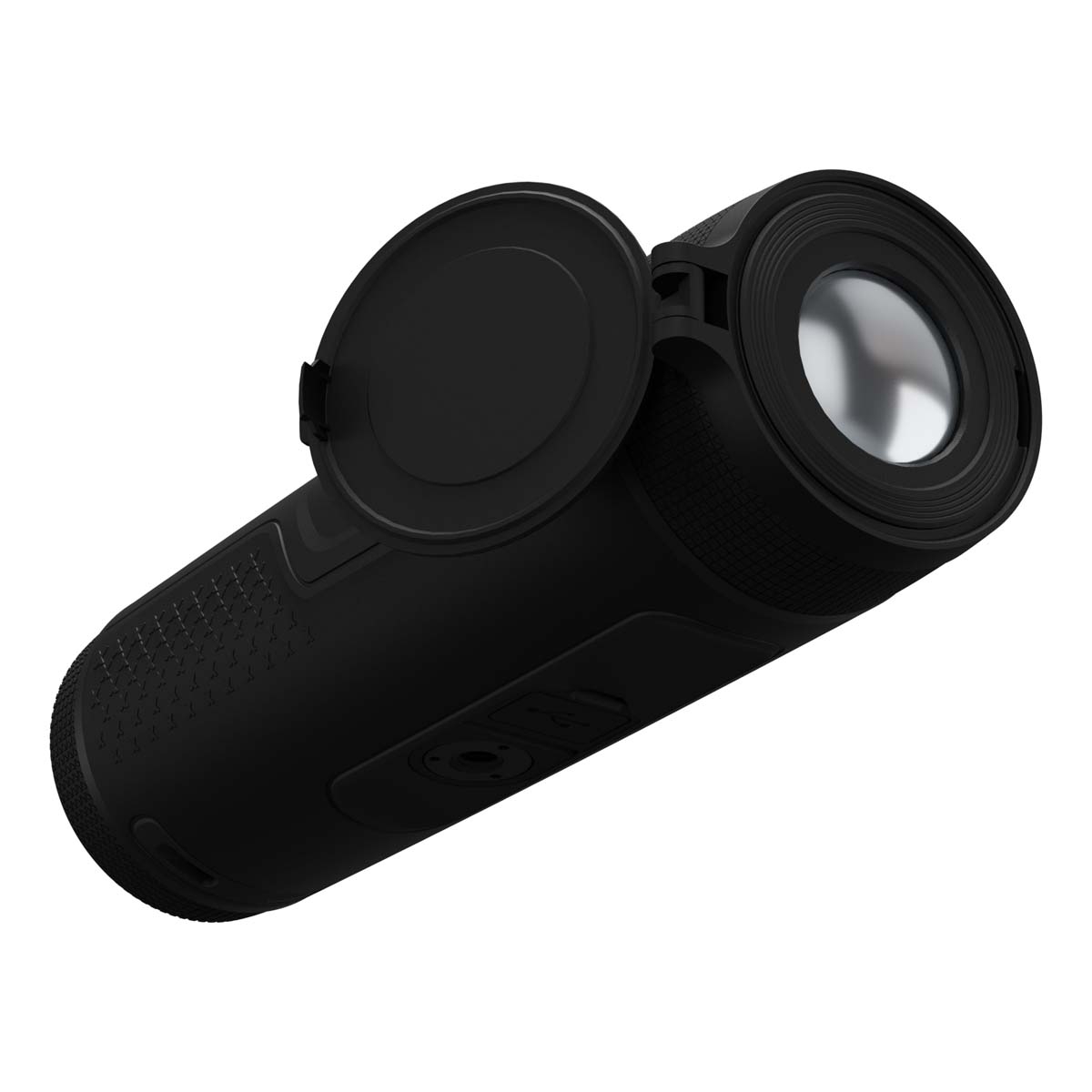

The BlazeTrek 325 features a durable weather-resistant housing designed for demanding outdoor use in challenging environments. Its compact dimensions and lightweight construction support comfortable handheld operation during prolonged observation sessions.

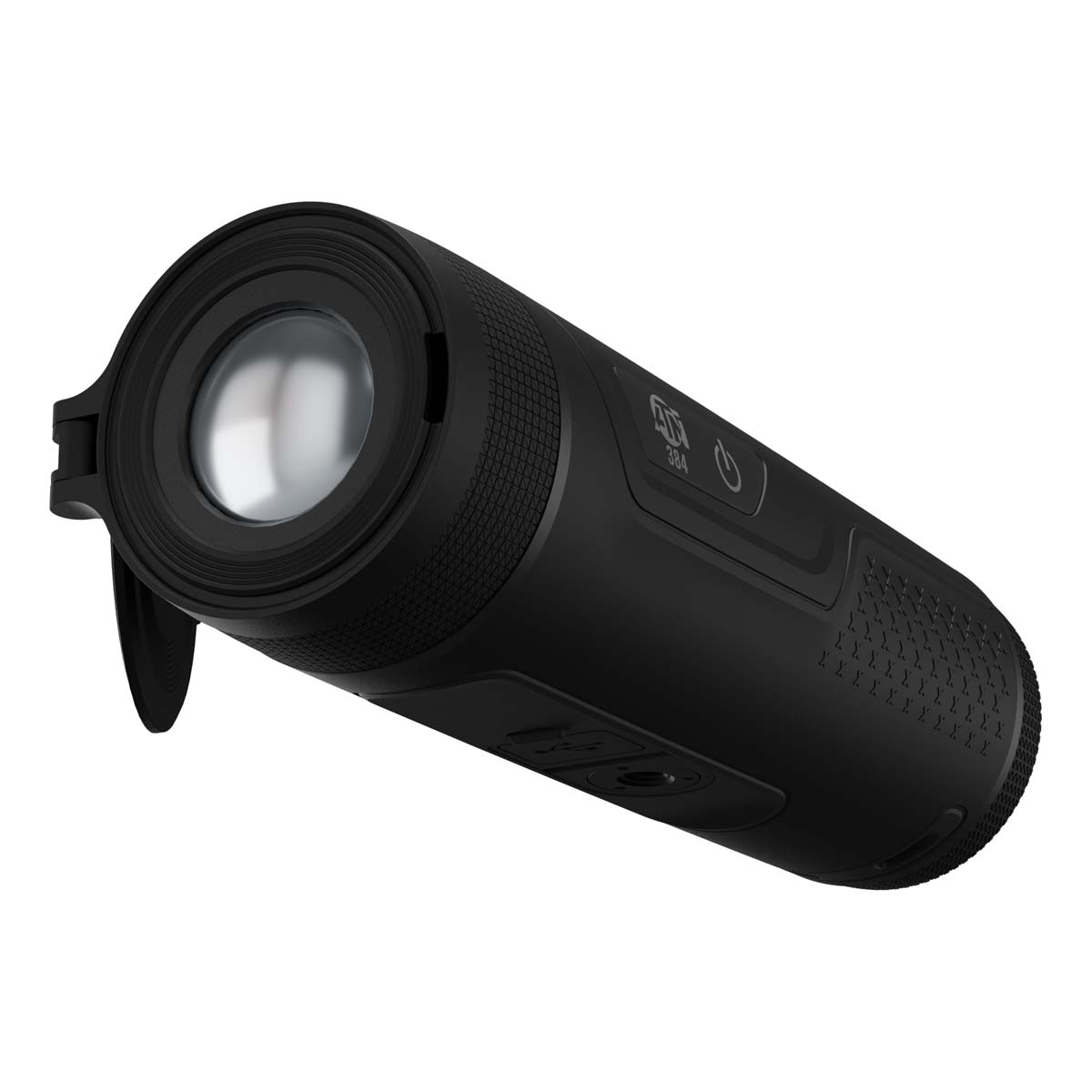

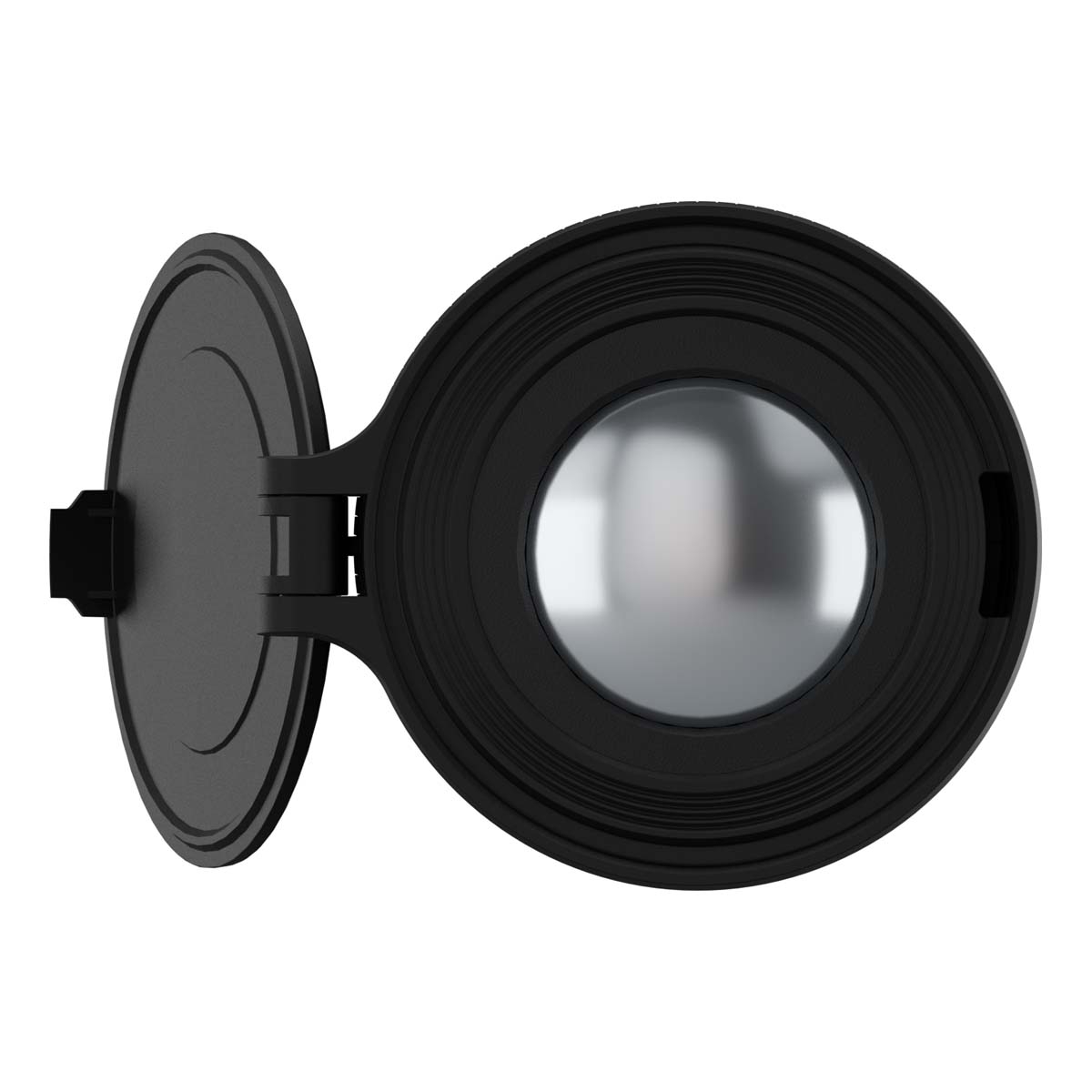

The optic incorporates a 25mm germanium F/1.0 lens system designed to maximise thermal transmission and image clarity. Combined with the 12μm VOx uncooled focal plane array sensor and SharpIR image enhancement technology, the system provides enhanced thermal detail recognition and improved target identification performance.

Fit & Comfort

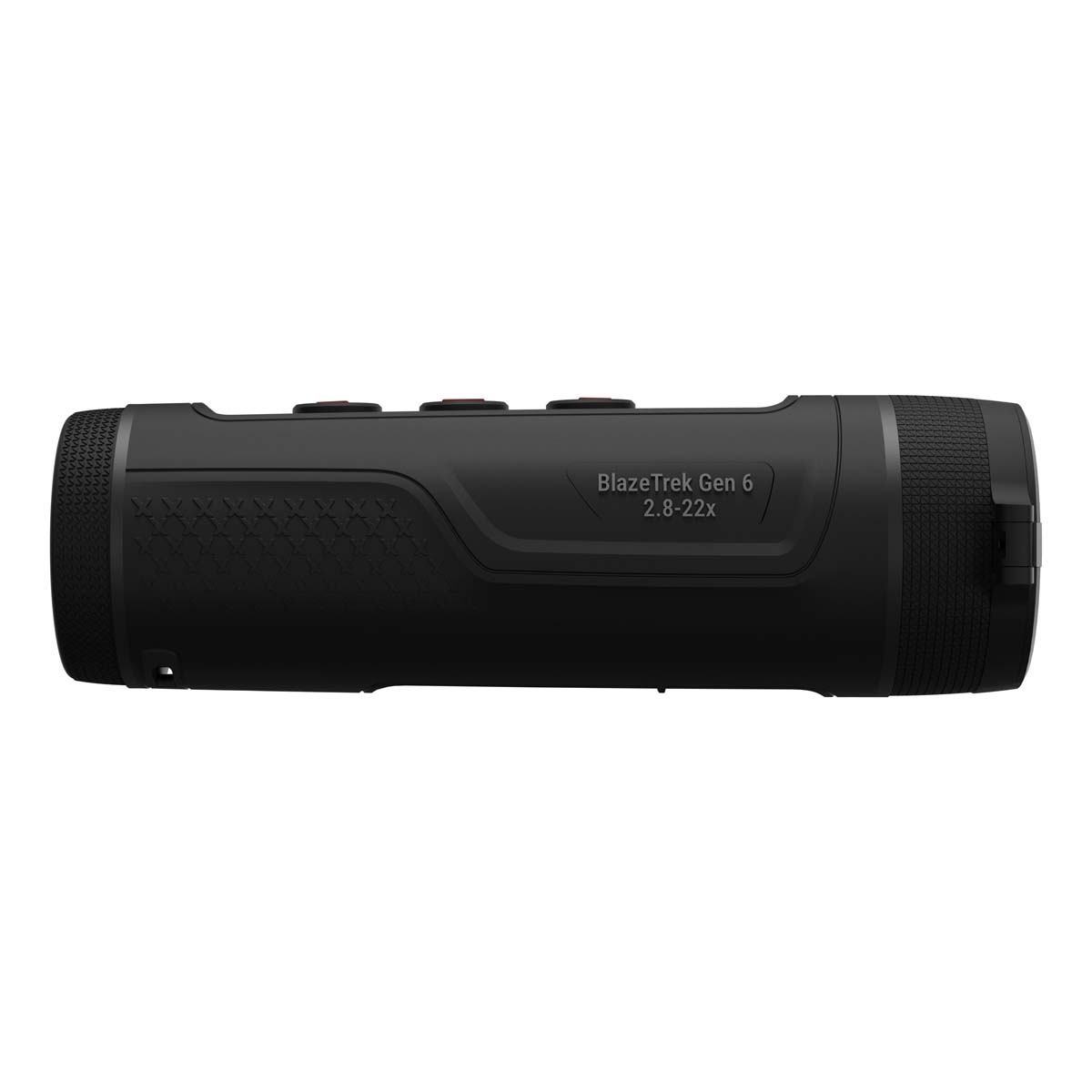

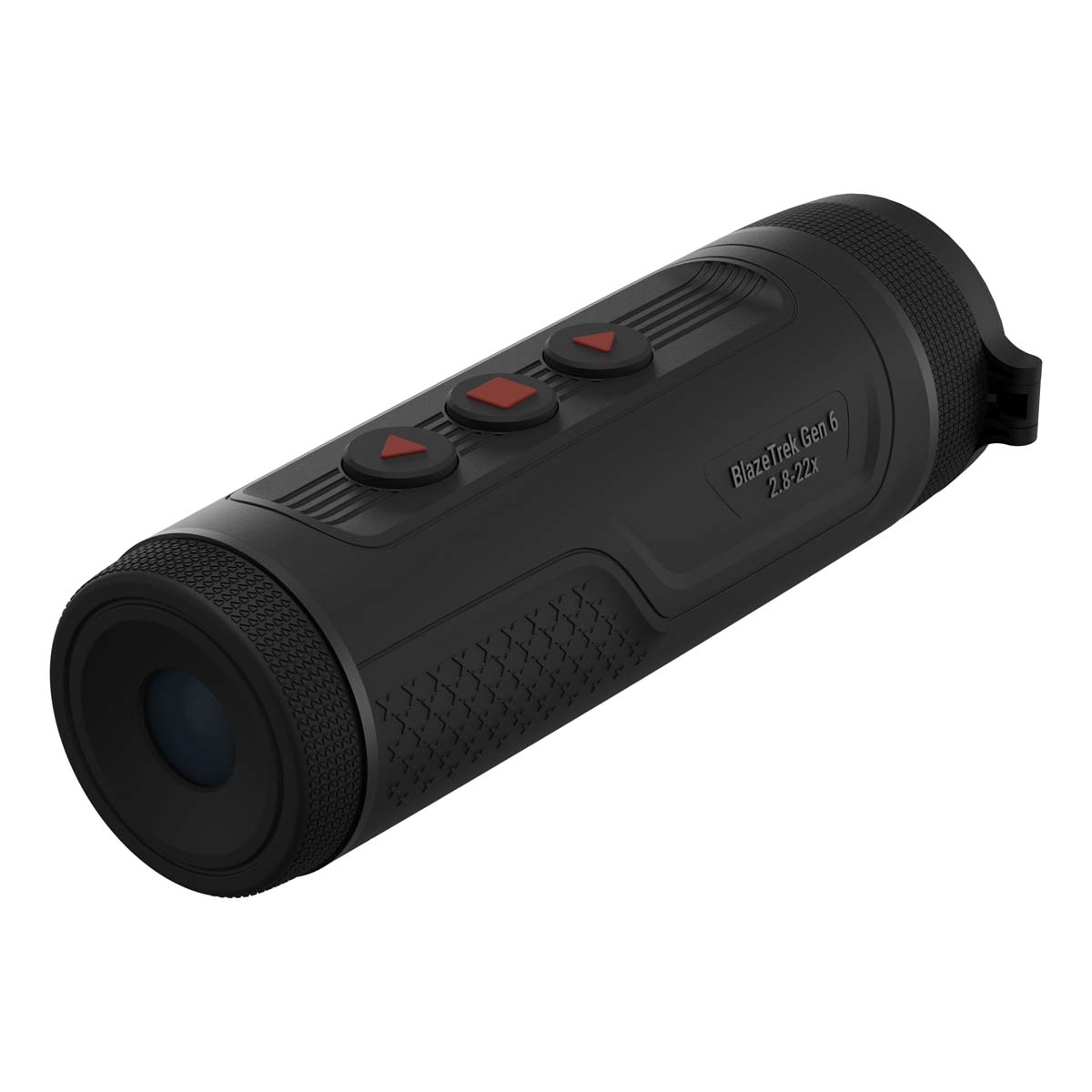

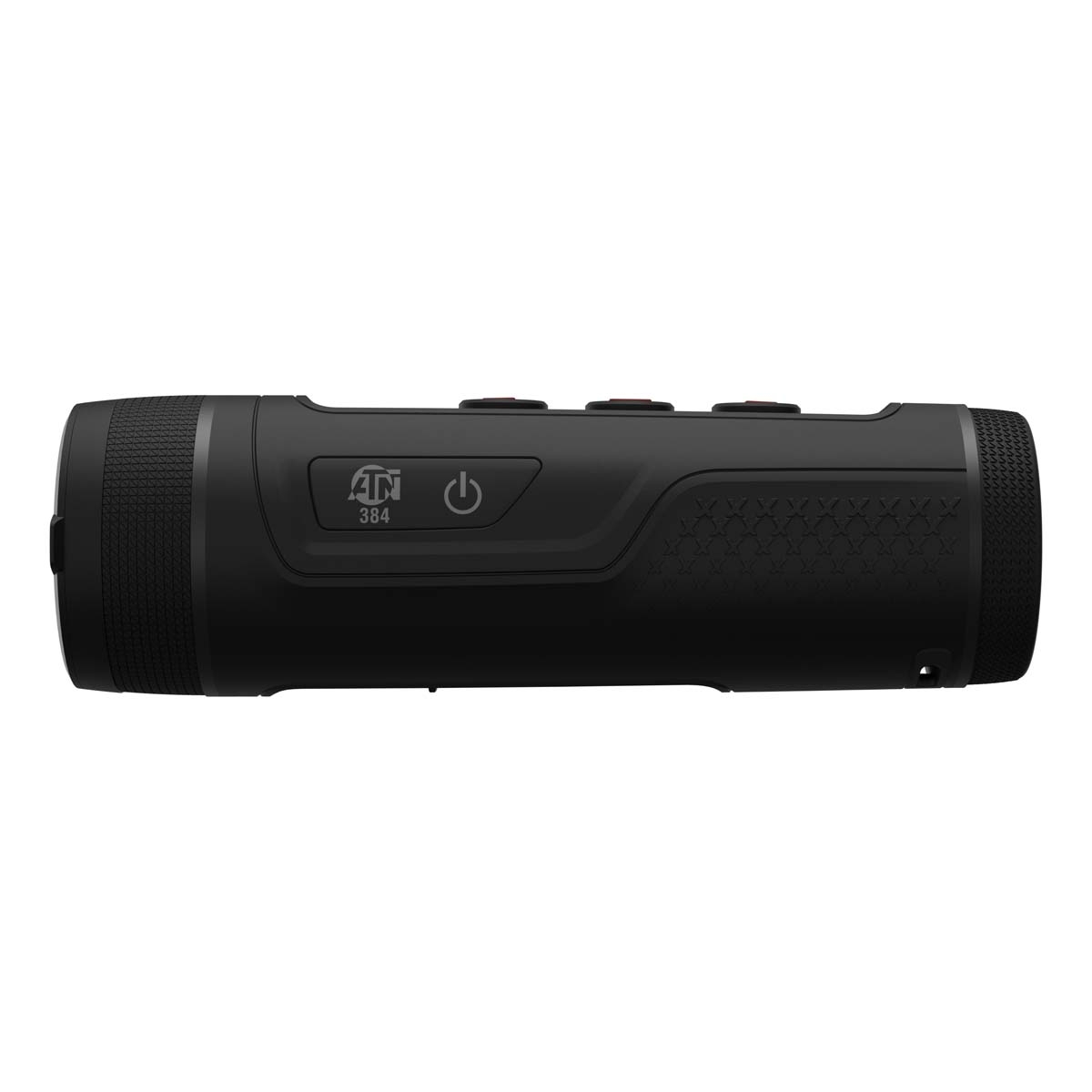

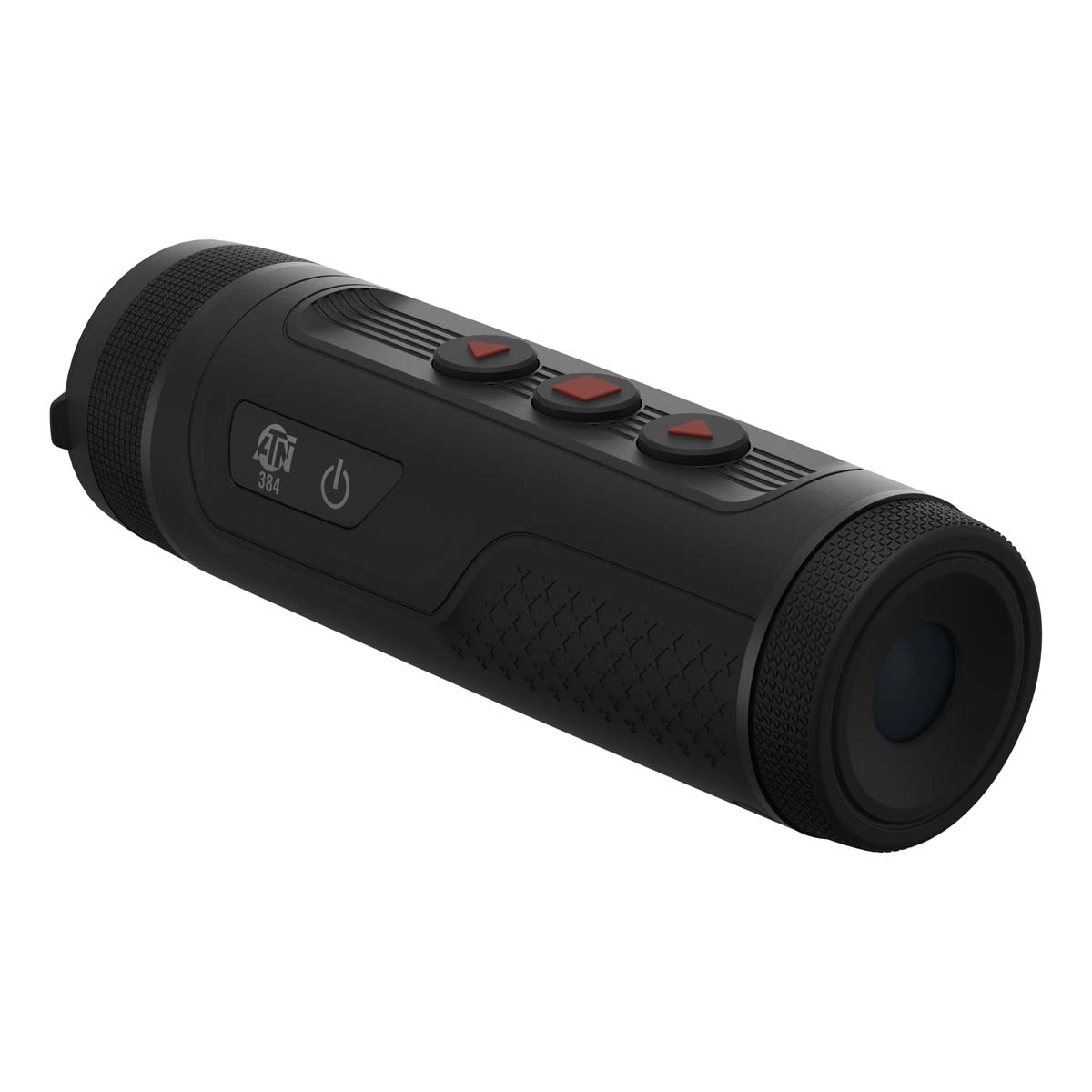

The ergonomic handheld layout supports stable operation while remaining compact enough for convenient transport in the field. Weighing approximately 320g including the battery, the BlazeTrek 325 is well suited to extended scanning and observation sessions without excessive fatigue.

Manual focus adjustment from 1 metre to infinity allows users to fine-tune image sharpness depending on distance and terrain conditions, while the adjustable diopter range supports improved viewing comfort for different users.

Waterproof Performance

The BlazeTrek 325 is built to IP67 waterproof standards, helping protect the monocular against dust, rain and temporary immersion during demanding outdoor use. This rugged environmental protection makes it suitable for use across a wide range of weather conditions.

Its operating temperature range of -30°C to 55°C further supports reliable thermal imaging performance in both freezing winter environments and warmer climates.

Key Features

• 384x288 thermal sensor with 12μm VOx uncooled focal plane array
• 2.8-22x magnification range for versatile long-distance observation
• 25mm germanium F/1.0 lens system
• Detection range up to 1300 metres
• 800x600 OLED display for clear thermal image presentation
• SharpIR image enhancement technology
• ≤18mK NETD thermal sensitivity
• 50Hz refresh rate for smoother thermal imaging performance
• Digital zoom options of 1x, 2x, 4x and 8x
• Integrated image capture and video/audio recording
• Built-in Wi-Fi hotspot with ATN Connect 6 app support
• 32GB internal storage capacity
• USB Type-C connectivity and external power support
• IP67 waterproof protection
• Approximately 8 hours battery life

Materials & Care

The BlazeTrek 325 combines a durable protective housing with a precision germanium lens system designed for demanding thermal imaging applications. The integrated rechargeable battery system supports convenient field operation and reduced battery management.

USB Type-C connectivity allows straightforward charging and media transfer. To maintain image quality and long-term performance, optical surfaces should be kept clean and protected during storage and transport.

Size & Fit Guidance

• Dimensions: 158mm x 57mm x 50mm
• Weight with battery: approximately 320g
• Manual focus adjustment from 1 metre to infinity
• Compact handheld design for mobile field use

Specifications

• Sensor Resolution: 384x288
• Detector Type: 12μm VOx Uncooled Focal Plane Array
• Magnification: 2.8-22x
• Lens System: 25mm Germanium F/1.0
• Field of View: 10.9° x 8.2°
• Display Resolution: 800x600 OLED
• Refresh Rate: 50Hz
• Thermal Sensitivity: ≤18mK NETD
• Detection Range: Up to 1300m
• Digital Zoom: 1x / 2x / 4x / 8x
• Storage Capacity: 32GB Internal
• Battery Type: Internal Rechargeable
• Battery Life: Approximately 8 Hours
• Waterproof Rating: IP67
• Operating Temperature: -30°C to 55°C
• Connectivity: Built-in Wi-Fi Hotspot, USB Type-C
• Image Capture: Yes
• Video and Audio Recording: Yes
• Colour Palettes: White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia
• Warranty: 5 Years

ATN BlazeTrek 325 Thermal Monocular Review

The ATN BlazeTrek 325 Thermal Monocular is designed for users who require compact thermal imaging capability with improved long-range detection performance. Combining a 384x288 thermal sensor with a 25mm germanium lens and an extended 2.8-22x magnification range, it provides strong versatility for hunting, wildlife observation and professional outdoor monitoring.

Its lightweight handheld format, robust IP67 waterproof protection and integrated recording features make it a highly practical option for field users operating in varied environmental conditions. The addition of SharpIR image enhancement and Wi-Fi connectivity further strengthens its capability as a modern thermal observation device.

ATN BlazeTrek 325 Thermal Monocular Performance & Key Features

The BlazeTrek 325 delivers enhanced thermal detection capability through its 25mm lens system and 1300 metre detection range, offering improved long-distance observation performance compared to shorter focal length thermal monoculars. The ≤18mK NETD sensitivity and 50Hz refresh rate help maintain smooth thermal imaging with strong heat separation.

• 2.8-22x magnification range supports versatile long-distance viewing
• 1300 metre thermal detection capability
• SharpIR technology improves image detail and thermal contrast
• 800x600 OLED display delivers clear thermal image presentation
• Integrated recording and Wi-Fi functionality improve field usability

Build Quality & Handling

The compact 320g construction keeps the BlazeTrek 325 highly portable while still providing the durability required for demanding outdoor environments. Its IP67 waterproof protection supports dependable use in wet and adverse weather conditions.

The ergonomic handheld design supports stable observation during extended use, while the germanium lens system and rugged housing contribute to reliable long-term performance in the field.

Is the ATN BlazeTrek 325 Thermal Monocular Easy to Use?

The BlazeTrek 325 is designed with straightforward controls and intuitive operation suitable for both experienced thermal users and those transitioning into thermal observation equipment. The digital zoom system and multiple colour palettes allow users to quickly adapt viewing settings to changing environments.

• Manual focus adjustment from 1m to infinity
• Simple digital zoom controls with multiple zoom stages
• Integrated Wi-Fi hotspot with ATN Connect 6 support
• USB Type-C charging and media transfer connectivity

Key Takeaways of the ATN BlazeTrek 325 Thermal Monocular

The ATN BlazeTrek 325 offers a strong combination of portability, extended thermal detection capability and modern integrated features. Its 25mm germanium lens system and 1300 metre detection range make it particularly well suited to users requiring improved long-distance observation performance while maintaining a compact handheld format. Although higher-resolution thermal models may provide additional image detail at greater distances, the BlazeTrek 325 remains an excellent all-round thermal monocular for hunters, wildlife observers and outdoor professionals seeking reliable thermal imaging performance in a lightweight package.

ATN BlazeTrek 325 Thermal Monocular FAQs

What magnification range does the ATN BlazeTrek 325 Thermal Monocular offer?

The BlazeTrek 325 provides a 2.8-22x magnification range, offering flexibility for both wider area scanning and more detailed long-range thermal observation.

What is the detection range of the ATN BlazeTrek 325?

The monocular offers thermal detection capability out to 1300 metres, making it suitable for extended-distance target identification and observation in outdoor environments.

Is the ATN BlazeTrek 325 waterproof?

Yes, the BlazeTrek 325 features an IP67 waterproof rating, helping protect the device from rain, dust and temporary immersion during outdoor use.

How long does the battery last in the ATN BlazeTrek 325?

The internal rechargeable battery delivers approximately 8 hours of operation under normal usage conditions, supporting extended field sessions.

Does the ATN BlazeTrek 325 support video recording?

Yes, the monocular supports both image capture and video/audio recording functionality. Media can be stored internally using the built-in 32GB storage capacity.

What type of display does the BlazeTrek 325 use?

The unit uses an 800x600 OLED display designed to provide clear thermal image rendering with strong contrast and detail visibility.

Can the ATN BlazeTrek 325 connect to a smartphone?

Yes, the monocular includes a built-in Wi-Fi hotspot and supports the ATN Connect 6 application for both iOS and Android devices.

What thermal sensor does the BlazeTrek 325 use?

The BlazeTrek 325 uses a 384x288 thermal sensor with a 12μm VOx uncooled focal plane array detector and ≤18mK NETD thermal sensitivity.

What colour palettes are available on the BlazeTrek 325?

The monocular includes White Hot, Black Hot, Iron Red, Alarm, Green Hot and Sepia colour palette options for adaptable thermal viewing.

What are the dimensions and weight of the ATN BlazeTrek 325?

The BlazeTrek 325 measures 158mm x 57mm x 50mm and weighs approximately 320g including the battery, supporting comfortable handheld use during prolonged observation.
