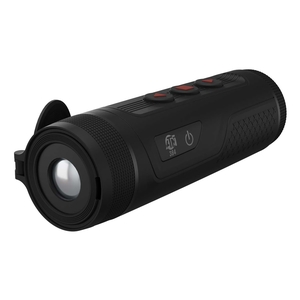

ATN BlazeTrek 319 (2.25-18x) Thermal (384x288) Monocular

ATN BlazeTrek 319 Thermal Monocular

Craftsmanship & Construction

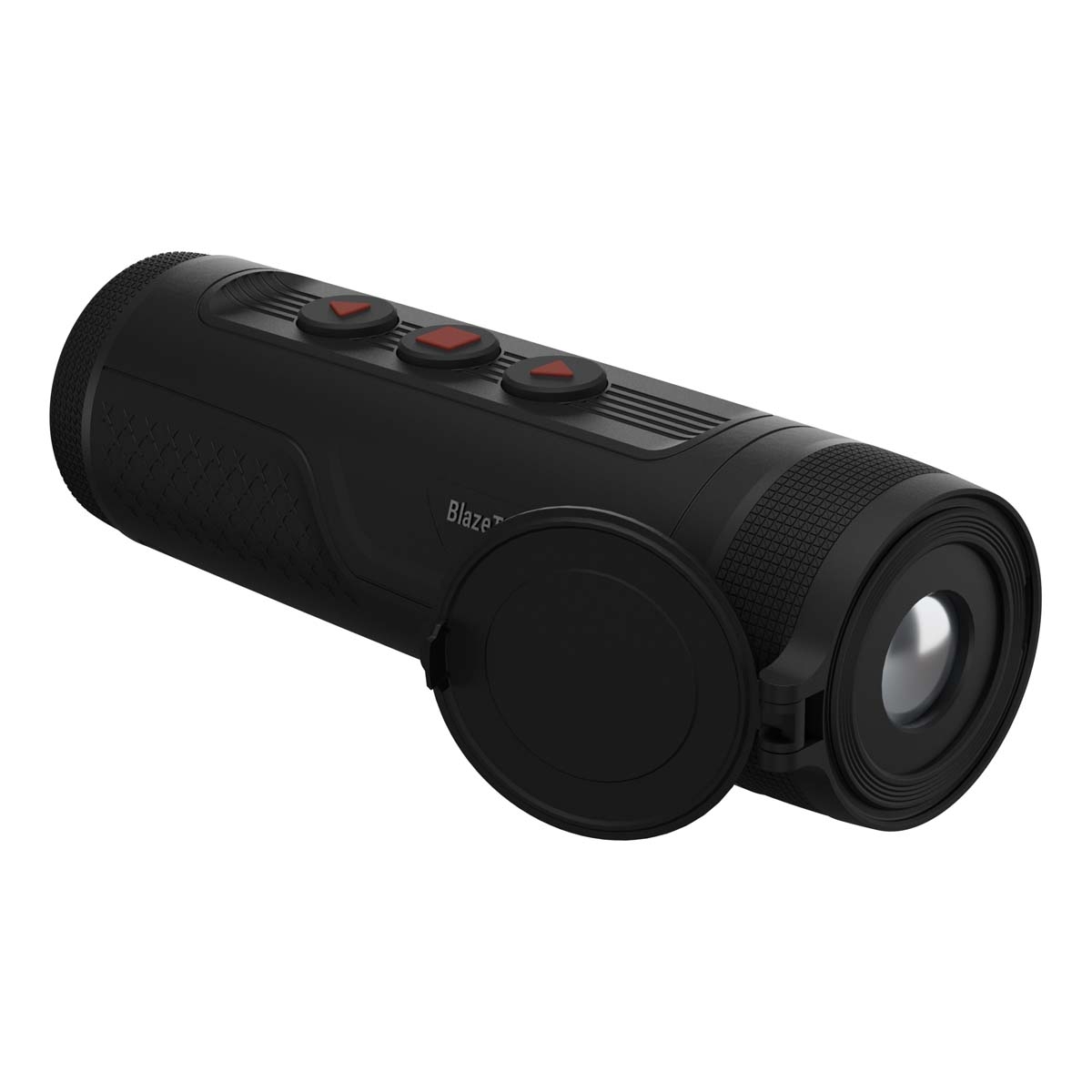

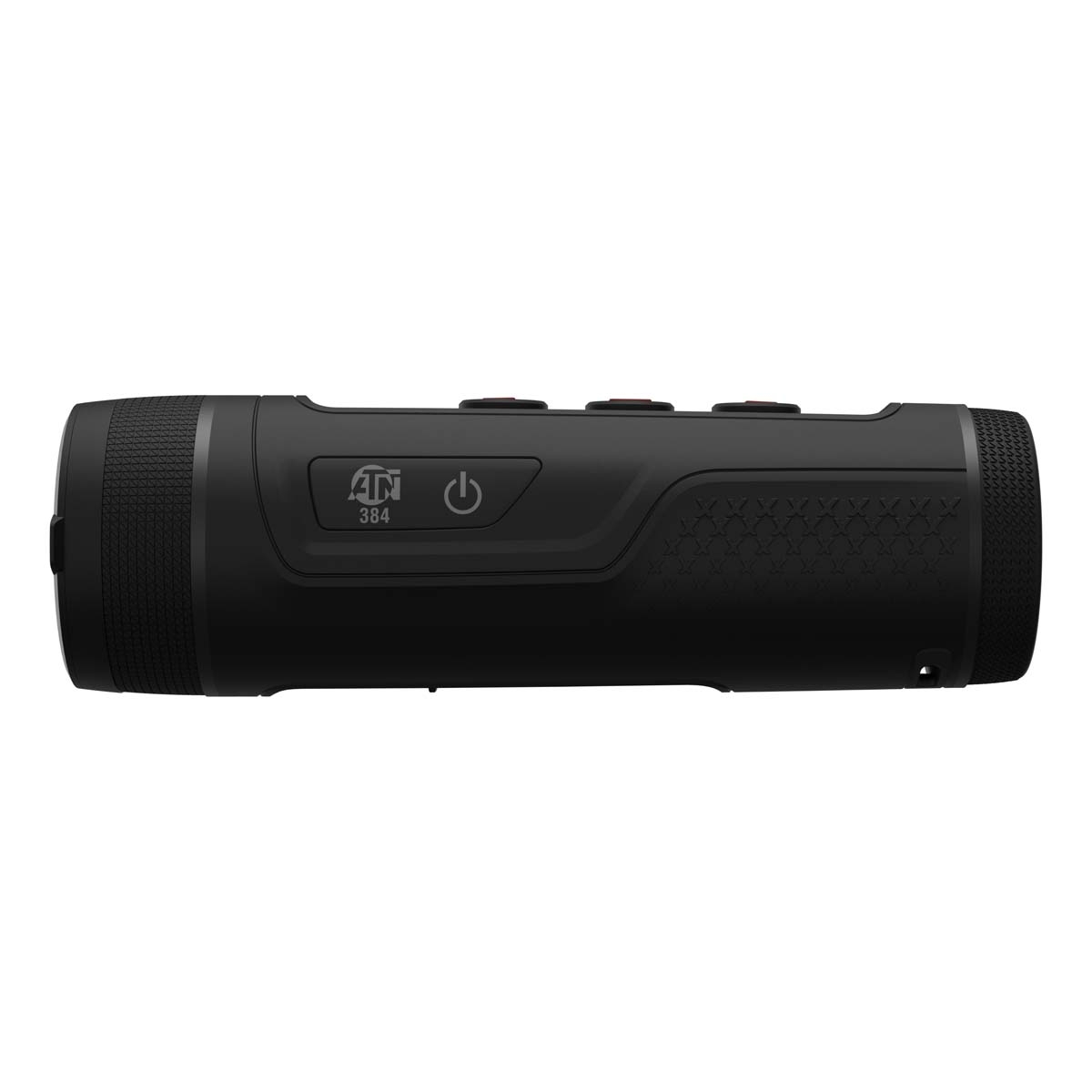

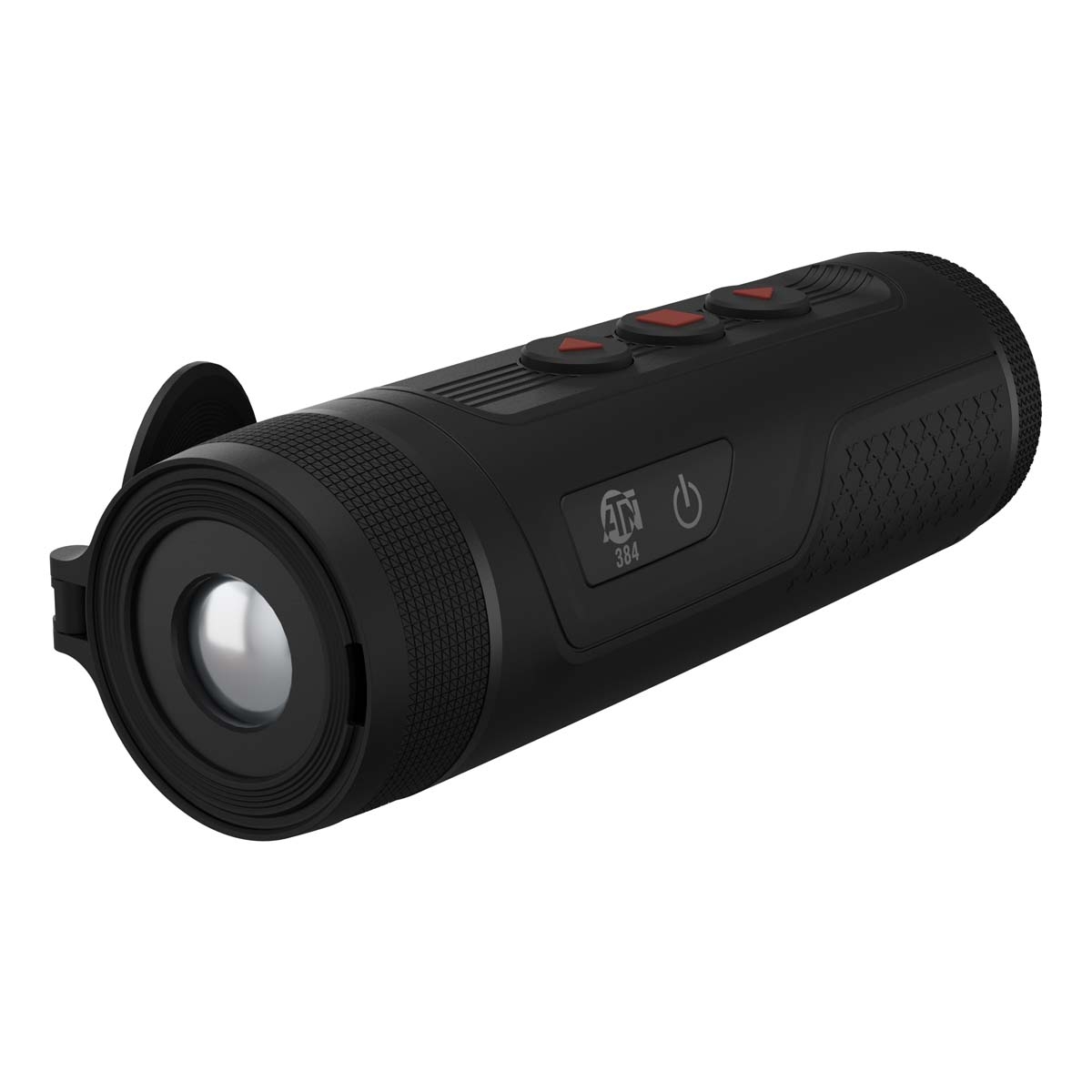

The BlazeTrek 319 is engineered with a durable, weather-resistant housing designed to withstand demanding outdoor use. Its compact body measures just 158mm in length and weighs approximately 320g including the battery, making it easy to carry during extended sessions in the field.

The optic features a 19mm germanium lens with an F/1.0 aperture for improved thermal transmission and image clarity. ATN’s SharpIR image enhancement technology helps optimise detail recognition and thermal contrast, while the 12μm VOx uncooled focal plane array sensor contributes to efficient thermal sensitivity and dependable target acquisition.

Fit & Comfort

The compact handheld design allows comfortable one-handed operation and convenient portability when travelling or moving through varied terrain. Manual focus adjustment from 1 metre to infinity enables precise image control depending on viewing distance and environmental conditions.

An adjustable diopter range from -5 to +5D supports improved viewing comfort for different users, while the intuitive digital zoom system provides flexible observation capability across multiple distances.

Waterproof Performance

The BlazeTrek 319 is built to IP67 waterproof standards, providing reliable protection against dust, rain and temporary water immersion. Its robust environmental sealing makes it suitable for demanding outdoor use in wet and unpredictable conditions.

The monocular is designed to operate in temperatures ranging from -30°C to 55°C, supporting dependable performance across both freezing winter conditions and warmer climates.

Key Features

• 384x288 thermal sensor with 12μm VOx uncooled focal plane array
• 2.25-18x magnification range for flexible observation distances
• 19mm germanium F/1.0 lens system
• Detection range up to 1000 metres
• 800x600 OLED display for clear thermal image presentation
• SharpIR image enhancement technology
• ≤18mK NETD thermal sensitivity
• 50Hz refresh rate for smooth thermal imaging
• Digital zoom options of 1x, 2x, 4x and 8x
• Integrated photo and video/audio recording capability
• Built-in Wi-Fi hotspot with ATN Connect 6 app support
• 32GB internal storage capacity
• USB Type-C media output and external power support
• IP67 waterproof protection
• Approximately 8 hours battery life

Materials & Care

The BlazeTrek 319 incorporates a germanium optical lens system alongside a durable protective outer housing intended for outdoor field use. The rechargeable internal battery design supports extended operation without frequent battery replacement.

USB Type-C connectivity allows convenient charging and media transfer. Care should be taken to keep the optical surfaces clean and protected during transport and storage to maintain optimal image quality.

Size & Fit Guidance

• Dimensions: 158mm x 57mm x 50mm
• Weight with battery: approximately 320g
• Manual focus range from 1 metre to infinity
• Compact handheld format designed for mobile field use

Specifications

• Sensor Resolution: 384x288
• Detector Type: 12μm VOx Uncooled Focal Plane Array
• Magnification: 2.25-18x
• Lens System: 19mm Germanium F/1.0
• Field of View: 14.4° x 10.8°
• Display Resolution: 800x600 OLED
• Refresh Rate: 50Hz
• Thermal Sensitivity: ≤18mK NETD
• Detection Range: Up to 1000m
• Digital Zoom: 1x / 2x / 4x / 8x
• Storage Capacity: 32GB Internal
• Battery Type: Internal Rechargeable
• Battery Life: Approximately 8 Hours
• Waterproof Rating: IP67
• Operating Temperature: -30°C to 55°C
• Connectivity: Built-in Wi-Fi Hotspot, USB Type-C
• Image Capture: Yes
• Video and Audio Recording: Yes
• Colour Palettes: White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia
• Warranty: 5 Years

ATN BlazeTrek 319 Thermal Monocular Review

The ATN BlazeTrek 319 Thermal Monocular is designed for users seeking compact thermal imaging performance without excessive weight or bulk. Combining a 384x288 thermal sensor with a versatile 2.25-18x magnification range, it offers reliable thermal observation capability for hunting, wildlife spotting and outdoor surveillance applications.

Its lightweight construction, IP67-rated protection and extended battery life make it particularly appealing for extended field sessions. The addition of onboard recording, multiple colour palettes and Wi-Fi connectivity further enhances its usability in modern thermal observation scenarios.

ATN BlazeTrek 319 Thermal Monocular Performance & Key Features

The BlazeTrek 319 delivers dependable thermal performance through its 12μm VOx thermal sensor and ≤18mK NETD sensitivity, helping maintain clear thermal separation in varying environmental conditions. The 50Hz refresh rate contributes to smoother image movement when tracking wildlife or scanning terrain.

• 2.25-18x magnification range for flexible viewing distances
• Detection capability out to 1000 metres
• SharpIR image enhancement improves thermal detail presentation
• 800x600 OLED display supports clear image viewing
• Integrated recording and Wi-Fi functionality enhance field usability

Build Quality & Handling

The compact 320g design makes the BlazeTrek 319 highly portable for prolonged use in the field, while the IP67 waterproof construction provides reassurance in wet and demanding environments. Its streamlined handheld profile supports stable one-handed operation during scanning or target observation.

The germanium lens construction and durable outer housing contribute to reliable long-term performance, while manual focus adjustment allows users to fine-tune image sharpness quickly across varying distances.

Is the ATN BlazeTrek 319 Thermal Monocular Easy to Use?

The BlazeTrek 319 is designed with straightforward controls and intuitive operation, making it suitable for both experienced thermal users and those newer to handheld thermal optics. The digital zoom system and accessible colour palette options allow quick adaptation to different viewing conditions.

• Manual focus adjustment from 1m to infinity
• Simple digital zoom controls with multiple zoom steps
• Integrated Wi-Fi hotspot for ATN Connect 6 compatibility
• USB Type-C charging and media connectivity

Key Takeaways of the ATN BlazeTrek 319 Thermal Monocular

The ATN BlazeTrek 319 offers an excellent balance of portability, thermal performance and practical field functionality. Its compact dimensions, strong thermal sensitivity and integrated recording features make it well suited to hunters, wildlife observers and outdoor professionals requiring dependable handheld thermal imaging. While users seeking maximum long-range detail may prefer higher-resolution thermal models, the BlazeTrek 319 remains a capable and versatile thermal monocular for a broad range of outdoor applications. For users wanting lightweight thermal performance combined with modern connectivity and rugged weather protection, it represents a strong all-round option.

ATN BlazeTrek 319 Thermal Monocular FAQs

What magnification range does the ATN BlazeTrek 319 Thermal Monocular offer?

The BlazeTrek 319 features a 2.25-18x magnification range, allowing users to scan wider areas at lower magnification while still providing the ability to zoom in for closer thermal target observation when required.

What is the detection range of the ATN BlazeTrek 319?

The monocular provides a thermal detection range of up to 1000 metres. This makes it suitable for identifying heat signatures across extended distances in outdoor environments.

Is the ATN BlazeTrek 319 waterproof?

Yes, the BlazeTrek 319 carries an IP67 waterproof rating. This provides protection against rain, dust and temporary water immersion, making it suitable for challenging weather conditions.

How long does the battery last in the ATN BlazeTrek 319?

The internal rechargeable battery provides approximately 8 hours of operation under typical use conditions. This extended runtime supports longer observation sessions without frequent recharging.

Does the ATN BlazeTrek 319 support video recording?

Yes, the monocular supports both video and audio recording, along with image capture functionality. Media can be stored internally using the integrated 32GB storage capacity.

What type of display does the BlazeTrek 319 use?

The unit uses an 800x600 OLED display designed to deliver clear thermal image presentation with strong contrast and viewing clarity during day or night operation.

Can the ATN BlazeTrek 319 connect to a smartphone?

Yes, the monocular features a built-in Wi-Fi hotspot and supports the ATN Connect 6 application for iOS and Android devices, allowing wireless connectivity and media management.

What thermal sensor does the BlazeTrek 319 use?

The monocular uses a 384x288 thermal sensor with a 12μm VOx uncooled focal plane array detector. Combined with ≤18mK NETD sensitivity, it helps deliver strong thermal detail recognition.

What colour palettes are available on the BlazeTrek 319?

The monocular includes multiple colour palettes including White Hot, Black Hot, Iron Red, Alarm, Green Hot and Sepia, allowing users to tailor thermal viewing based on conditions and preference.

What are the dimensions and weight of the ATN BlazeTrek 319?

The BlazeTrek 319 measures 158mm x 57mm x 50mm and weighs approximately 320g including the battery, making it highly portable for field carry and extended handheld use.
