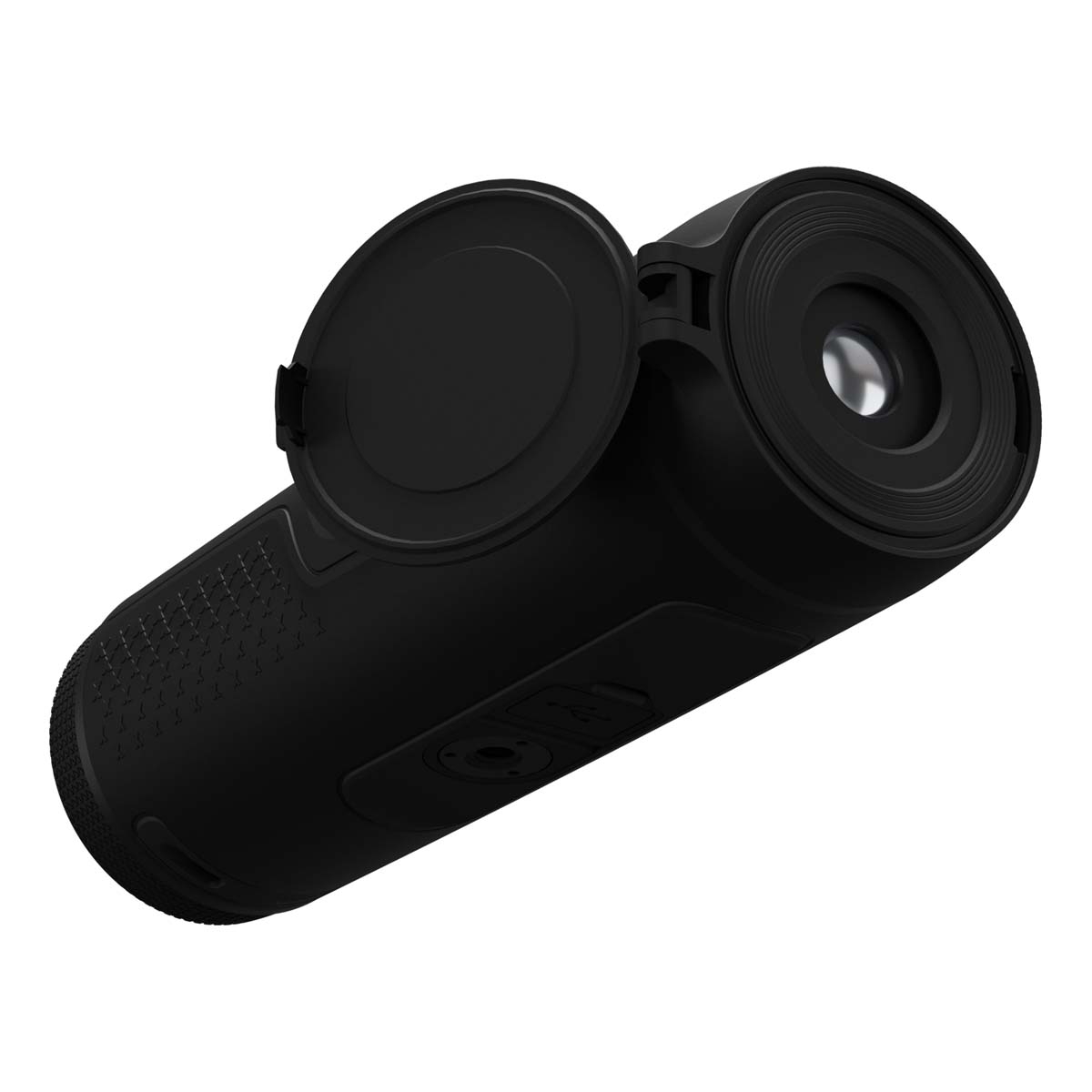

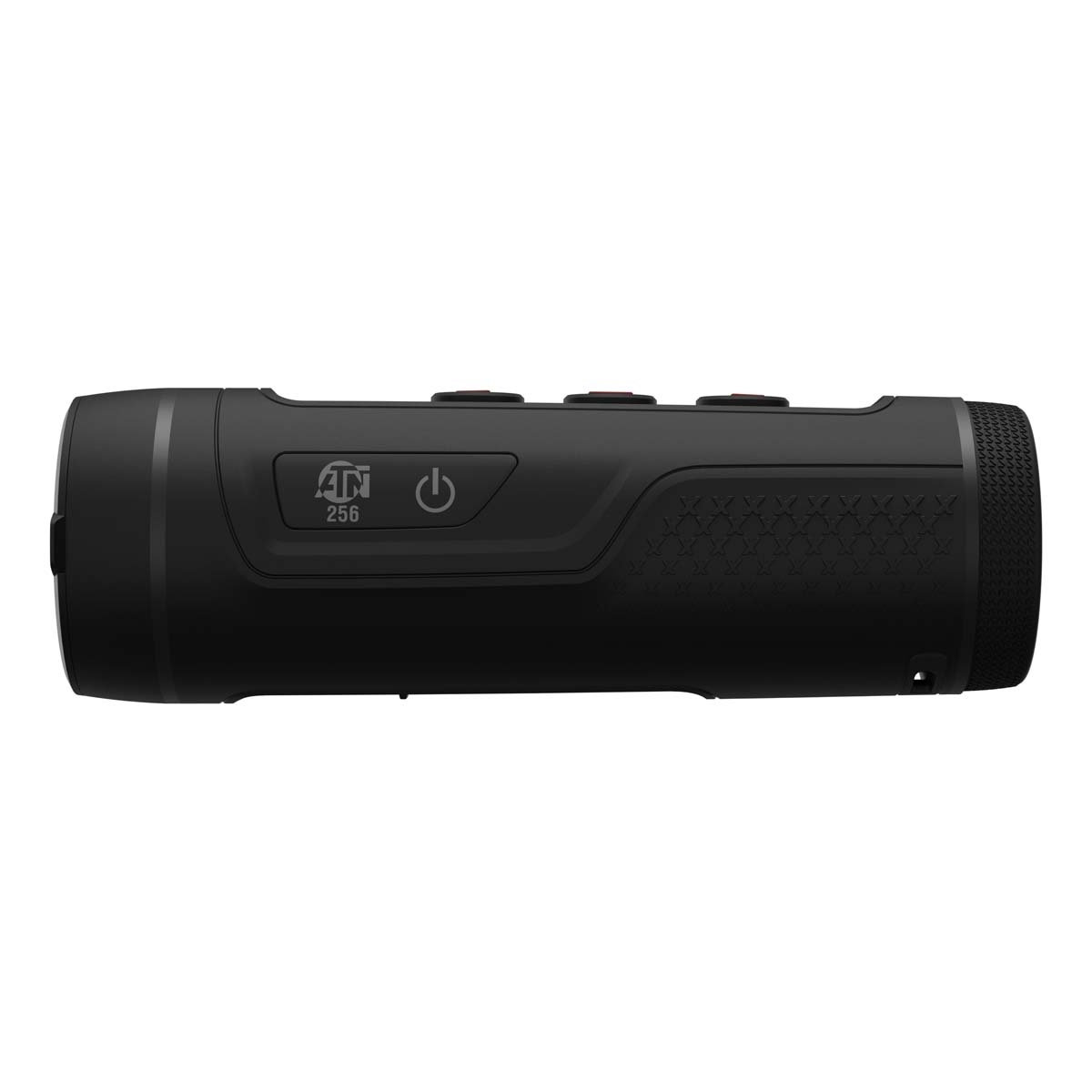

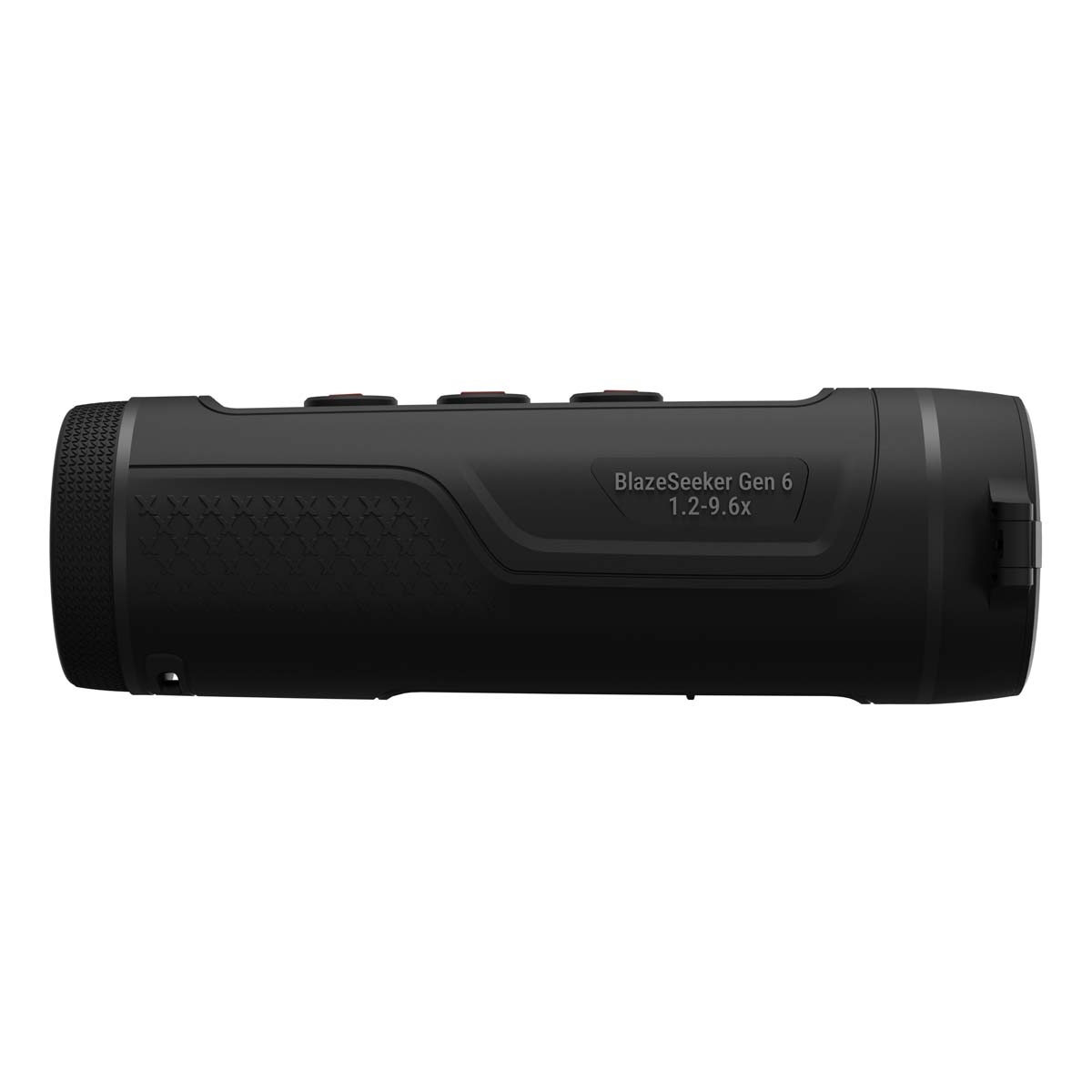

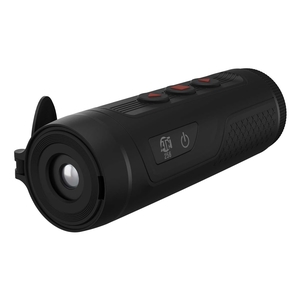

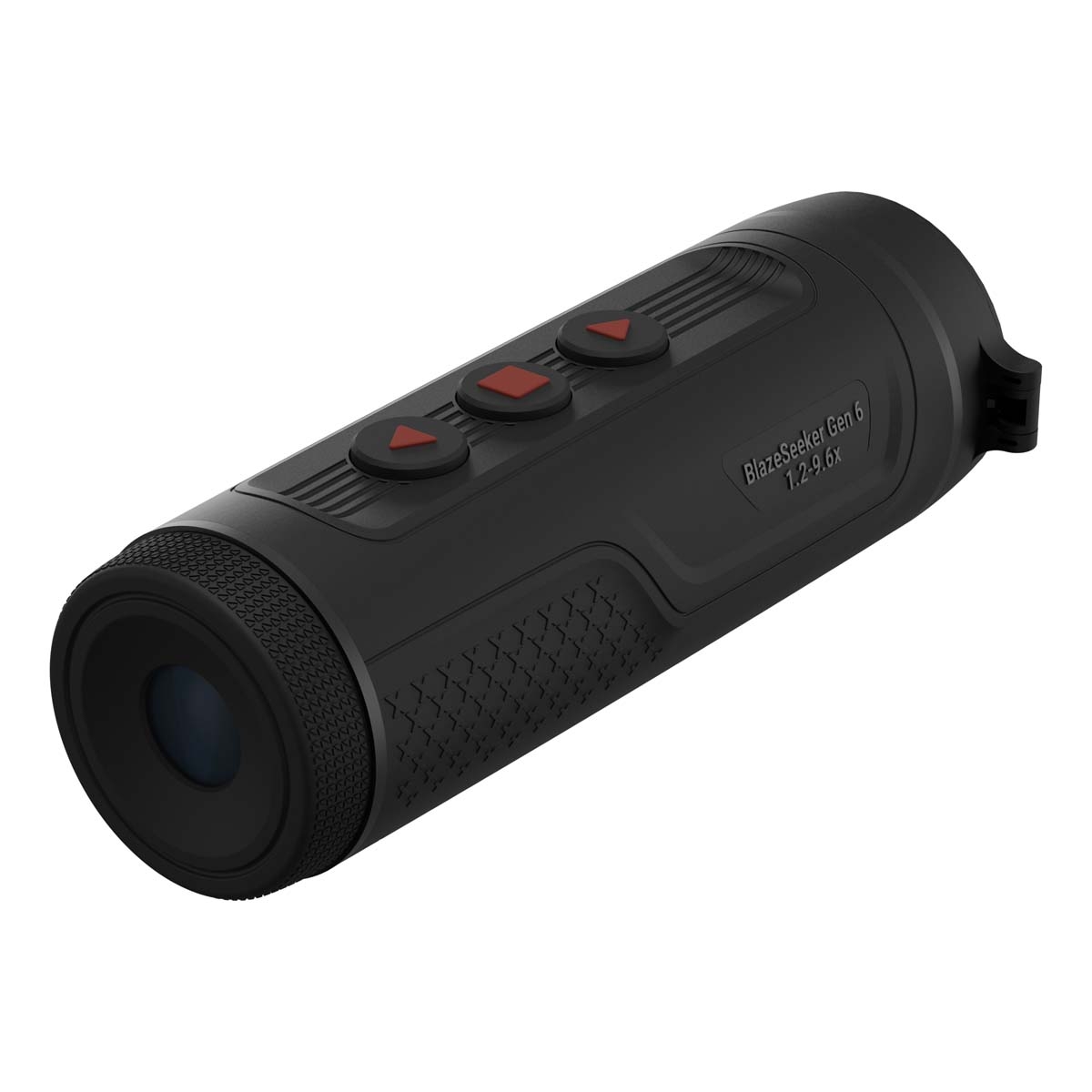

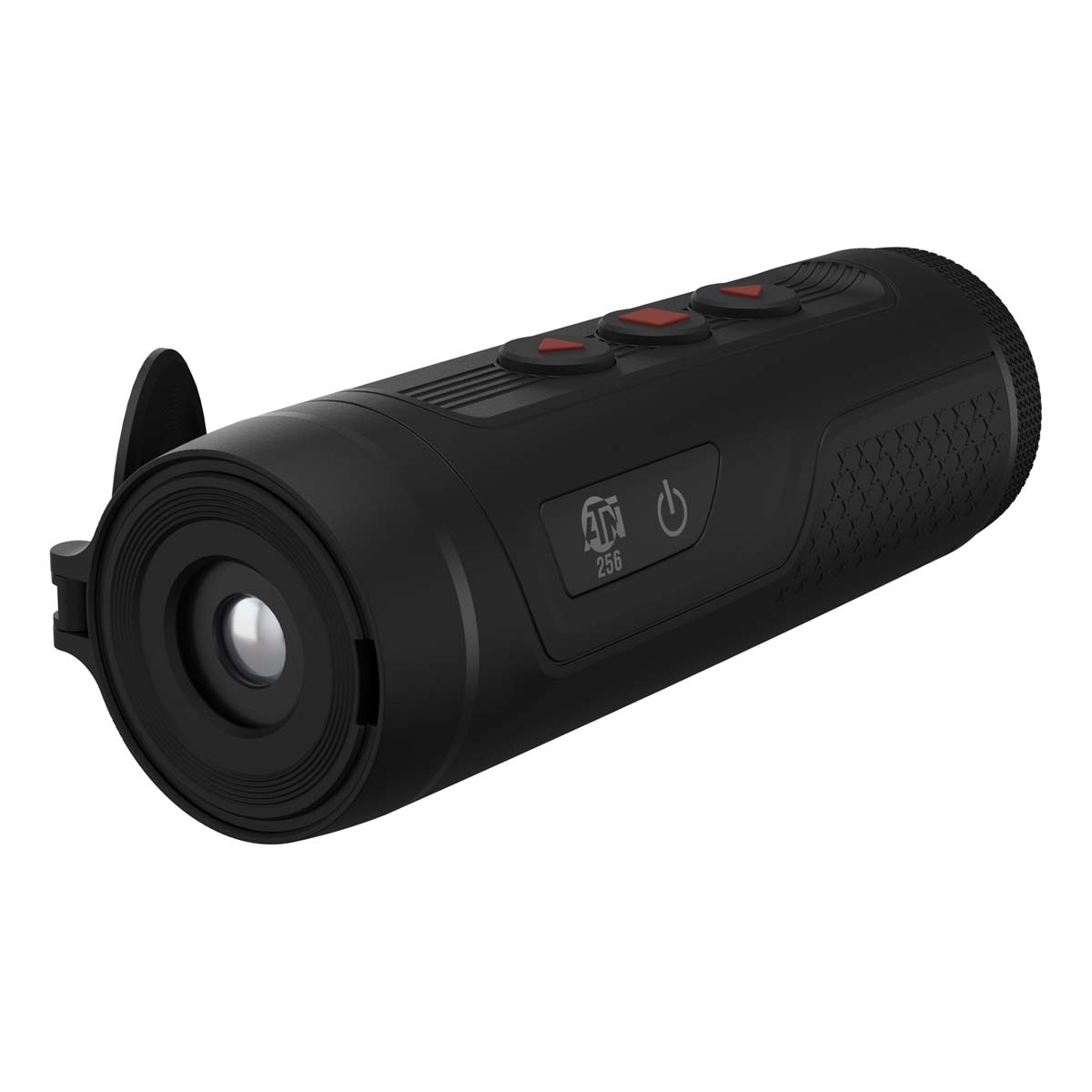

ATN BlazeSeeker 207 (1.2-9.6x) Thermal (256x192) Monocular

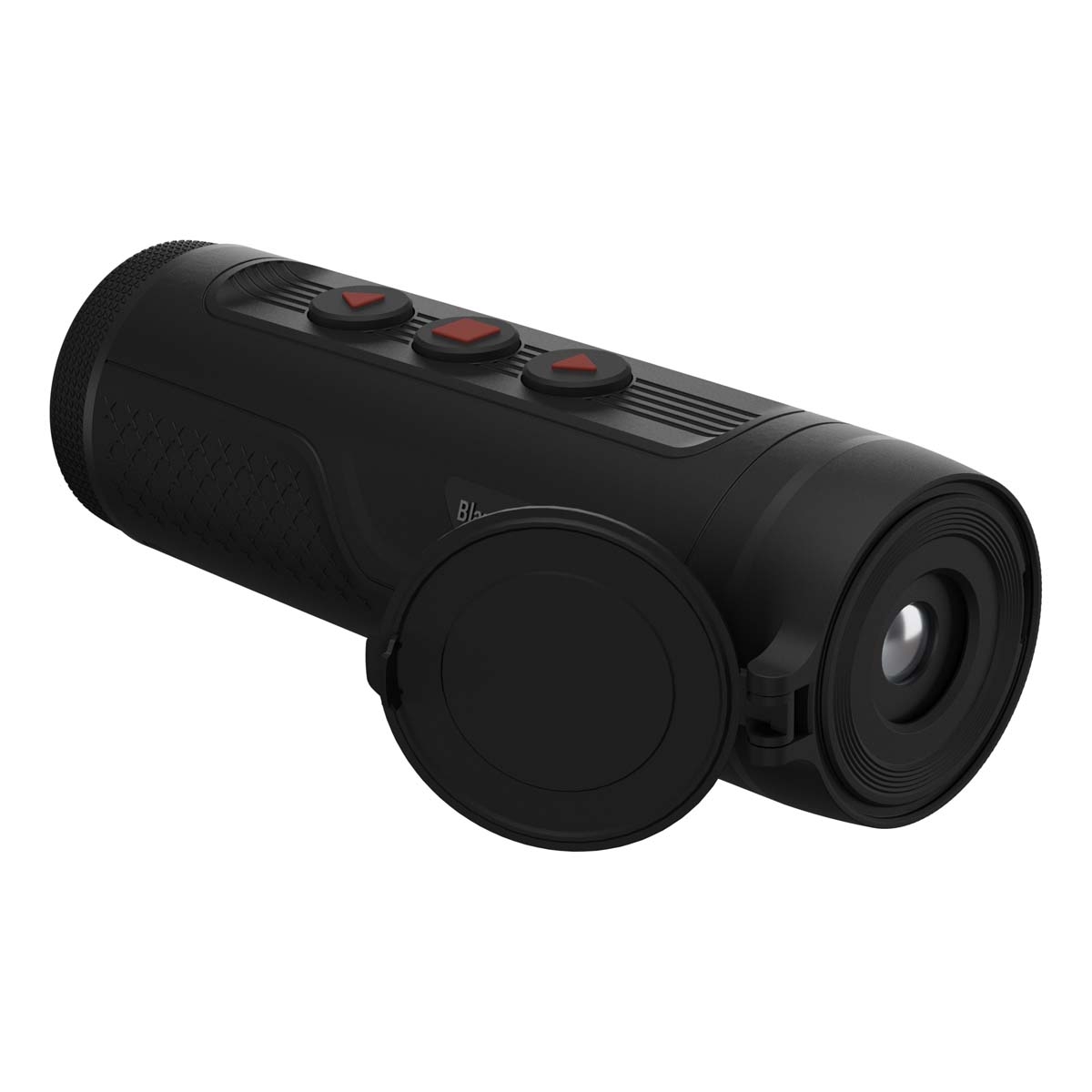

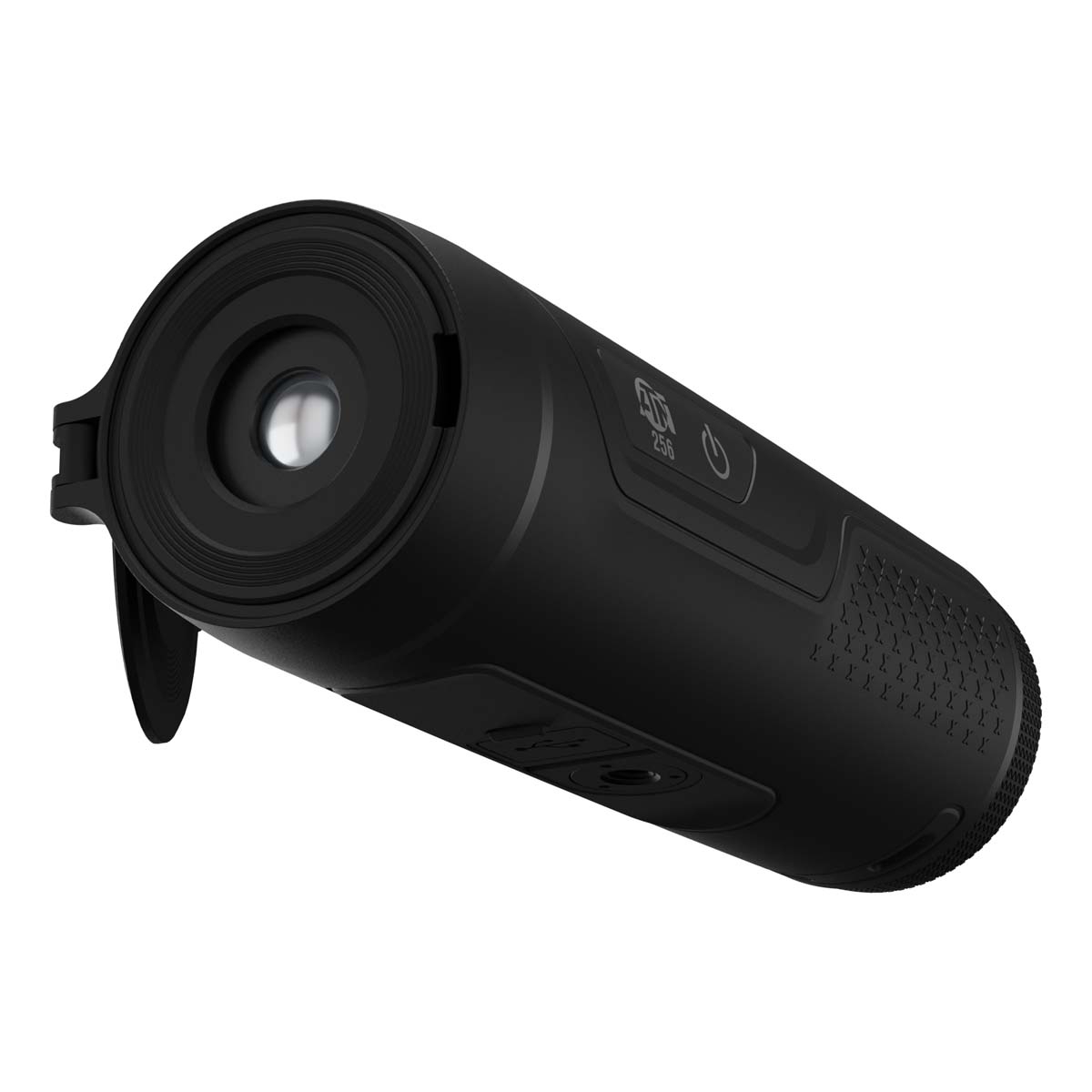

ATN BlazeSeeker 207 Thermal Monocular

Craftsmanship & Construction

The BlazeSeeker 207 is engineered for field durability while maintaining a lightweight handling profile at just 270g. Its compact housing is designed for comfortable one-handed operation and prolonged observation sessions, while the IP67 waterproof rating helps protect the monocular against harsh weather, moisture, and dusty environments.

The optic features a fixed focus, focus-free optical system that simplifies operation in fast-moving situations. An 800x600 OLED display delivers clear thermal imagery with strong contrast and viewing comfort, while integrated SharpIR technology and multiple non-uniformity correction modes support improved image consistency and thermal detail.

Fit & Comfort

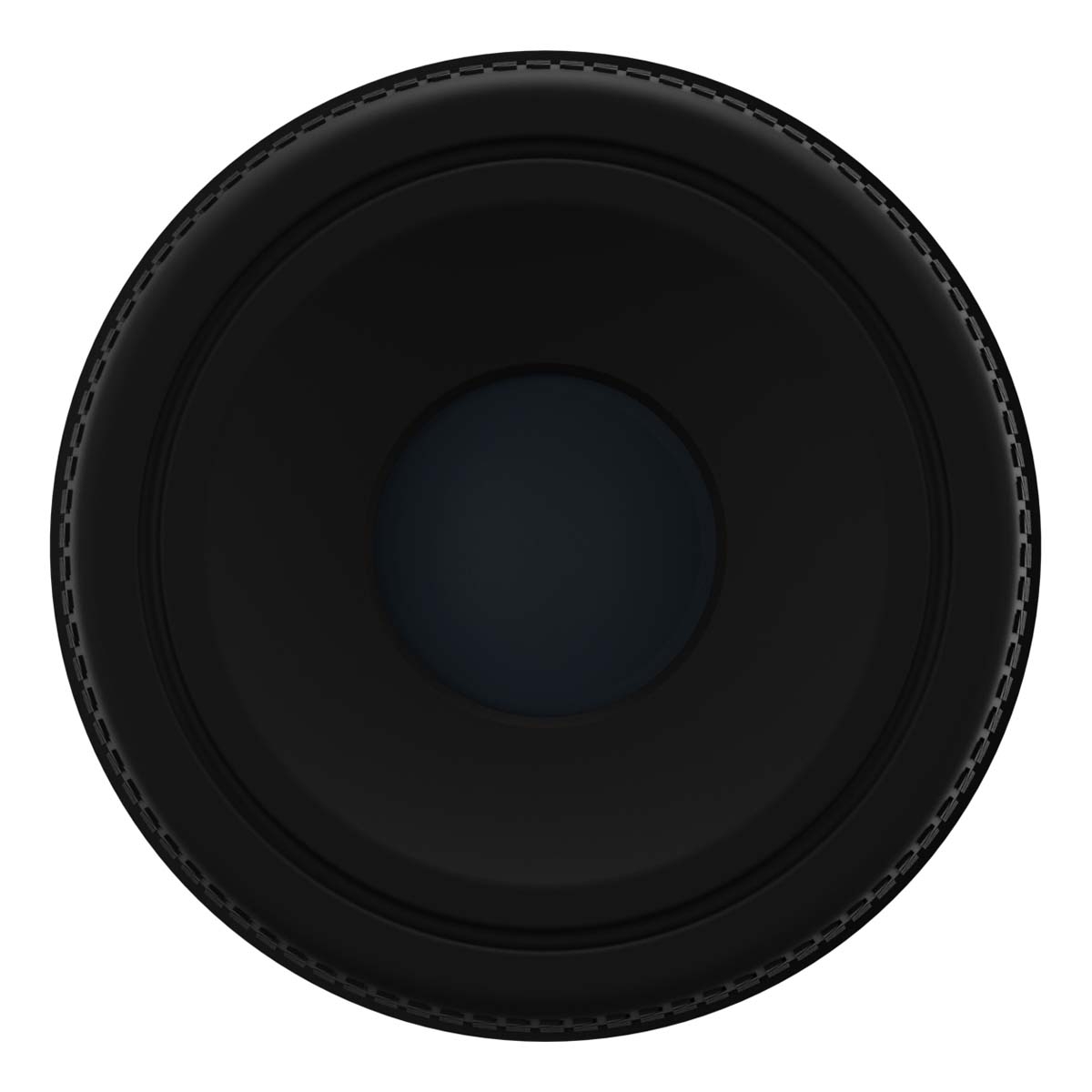

With its slim dimensions of 149×57×50mm and ergonomic handheld form, the BlazeSeeker 207 is easy to carry in the field and comfortable to use over extended periods. The compact chassis supports stable viewing, while the adjustable diopter range of -5 to +5D helps users fine-tune the display for clearer viewing comfort.

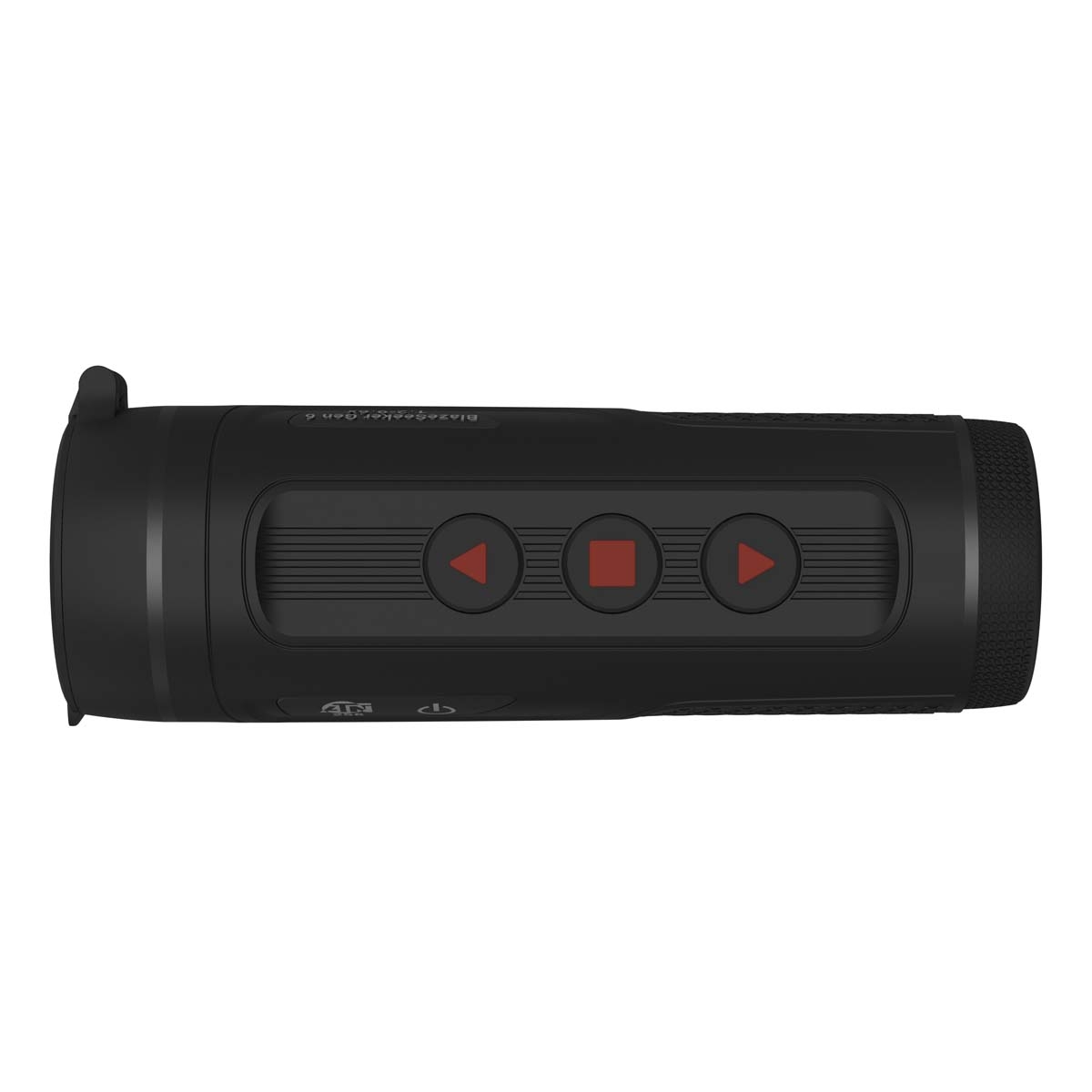

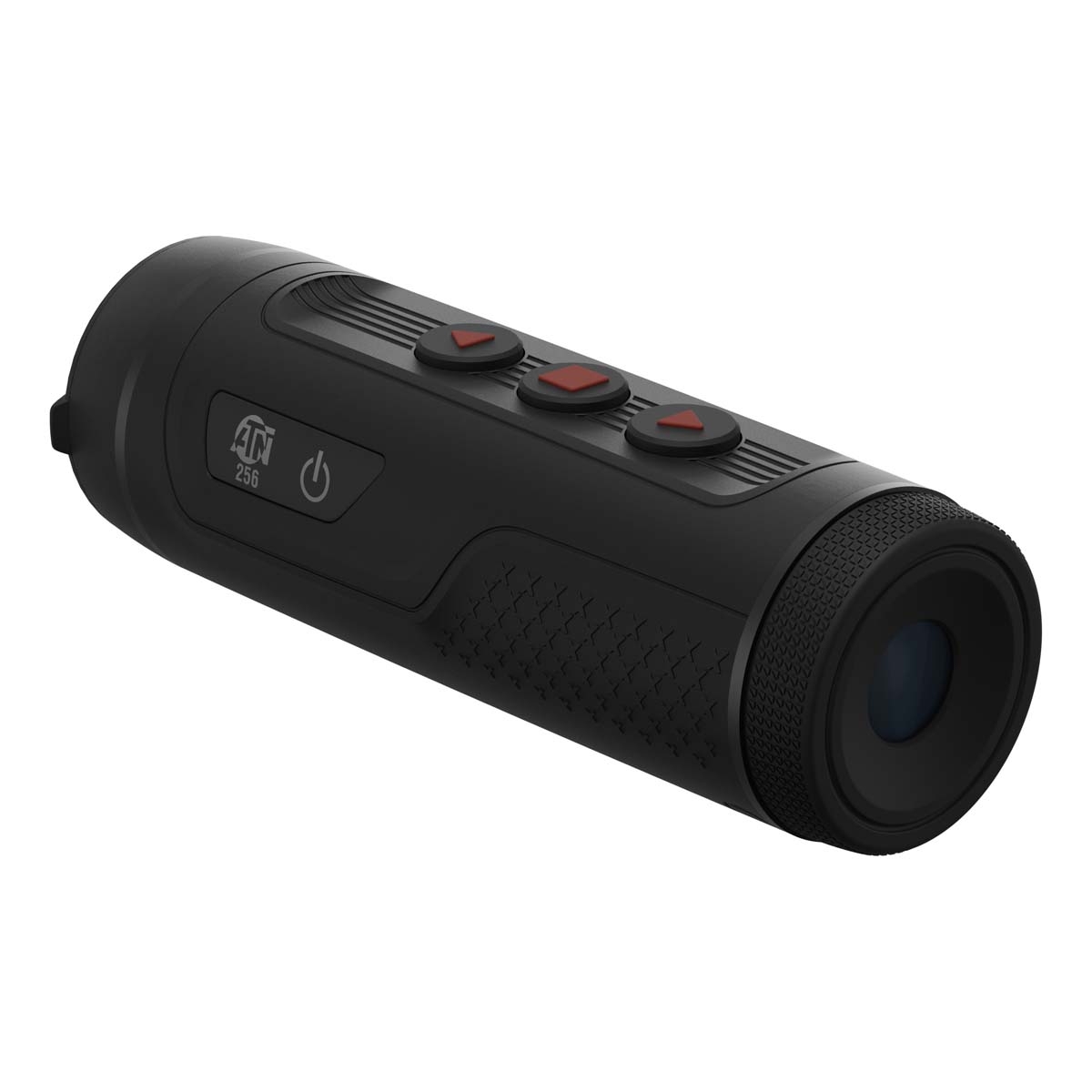

The intuitive button layout and smooth digital zoom controls allow quick access to key functions without overcomplicating operation, making the monocular suitable for both experienced thermal users and newcomers to thermal observation.

Waterproof Performance

The BlazeSeeker 207 features an IP67 waterproof rating, helping protect the unit against rain, moisture, dust, and demanding outdoor conditions. Its robust weather-resistant construction supports reliable thermal performance during hunting trips, wildlife observation sessions, and general outdoor use across varying temperatures from -30°C to 55°C.

Key Features

• 256x192 thermal sensor with 12μm VOx uncooled focal plane array
• 1.2–9.6x magnification range with smooth and step zoom options

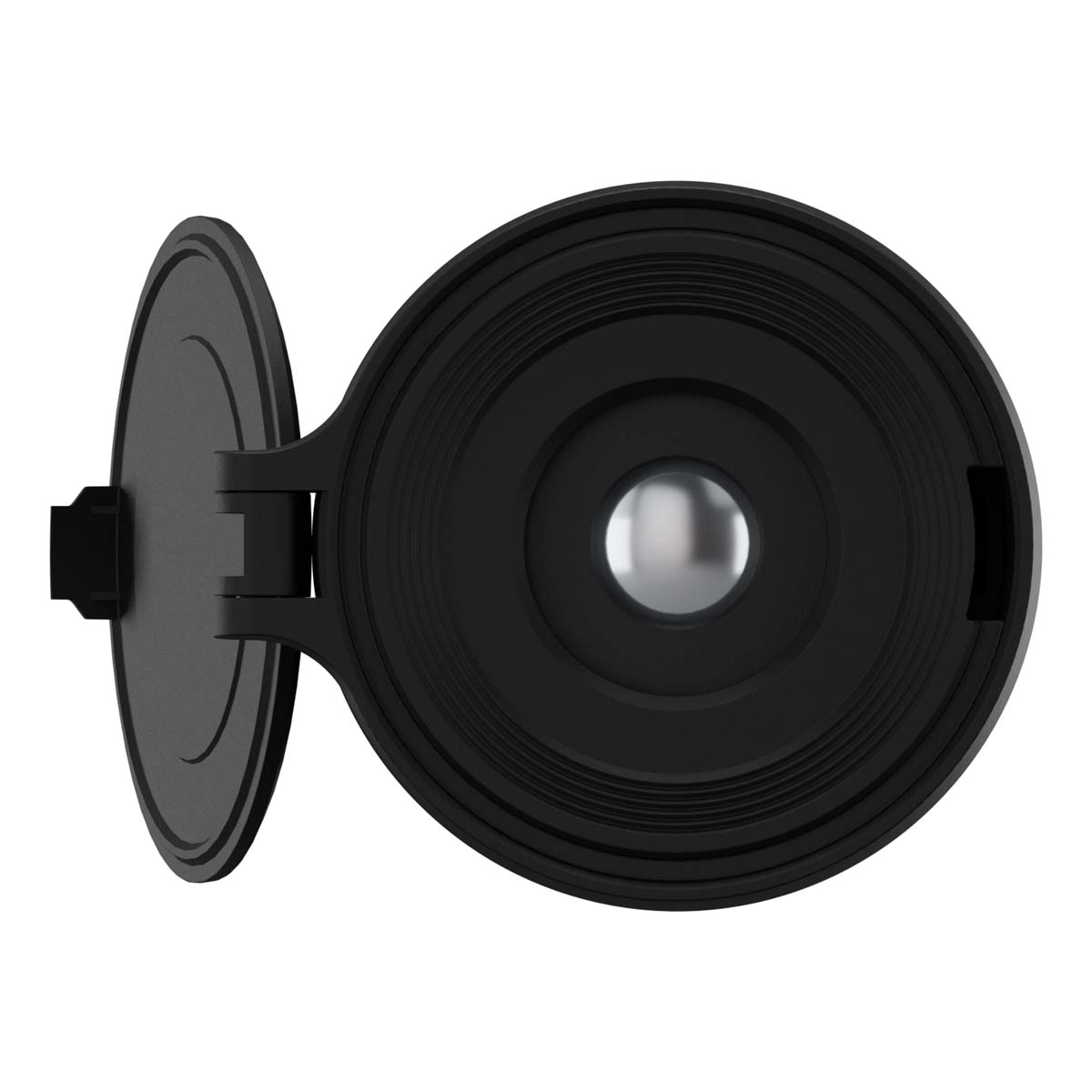

• 7mm germanium F/1.0 lens system
• ≤20mK NETD thermal sensitivity for enhanced heat detection
• Detection range up to 345 metres
• 800x600 OLED display for clear thermal viewing
• 50Hz refresh rate for smoother image performance
• 32GB internal storage for image and video capture
• Video and audio recording functionality
• Built-in Wi-Fi hotspot with ATN Connect 6 app support
• Six selectable colour palettes
• Hot Point Tracking support
• USB Type-C media output and charging
• Up to 8 hours battery life
• IP67 waterproof construction

Materials & Care

The BlazeSeeker 207 uses a germanium objective lens combined with a durable weather-resistant housing designed for outdoor thermal use. The integrated rechargeable battery system supports USB Type-C charging and external power supply compatibility for extended operation.

To maintain optimal performance, the thermal monocular should be stored dry and cleaned carefully using appropriate lens-cleaning materials. Avoid exposing the optic to unnecessary impacts or prolonged contamination from dirt and debris.

Size & Fit Guidance

• Dimensions: 149×57×50mm
• Weight: 270g / 0.6lb
• Compact handheld thermal monocular format
• Designed for one-handed operation
• Diopter adjustment range: -5 to +5D

Specifications

• Sensor Resolution: 256x192
• Detector Type: 12μm VOx Uncooled Focal Plane Array
• Refresh Rate: 50Hz
• Thermal Sensitivity: ≤20mK NETD
• Lens System: 7mm (Ge); F/1.0
• Field of View: 24° × 18°
• Magnification: 1.2–9.6x
• Digital Zoom: 1x, 2x, 4x, 8x
• Detection Range: 345m
• Display Resolution: 800x600 OLED
• Internal Storage: 32GB
• Battery Life: Approximately 8 hours
• Waterproof Rating: IP67
• Working Temperature: -30°C to 55°C
• Colour Palettes: White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia
• Wi-Fi Connectivity: Yes
• Media Output: USB Type-C
• Video / Audio Recording: Yes
• Image Capture: Yes
• Warranty: 5 Years

ATN BlazeSeeker 207 Thermal Monocular Review

The ATN BlazeSeeker 207 Thermal Monocular is a compact thermal observation device aimed at users who need lightweight thermal capability without sacrificing core performance features. Combining a sensitive 256x192 thermal sensor with a practical 1.2–9.6x magnification range, it offers a balanced solution for wildlife observation, pest control, security scanning, and general outdoor thermal use.

Its compact dimensions, integrated recording functions, and strong thermal sensitivity make it particularly appealing for users who want an easy-to-carry thermal monocular that remains capable in difficult environmental conditions. With IP67 protection and up to 8 hours of battery life, the BlazeSeeker 207 is built for dependable field use across a wide range of scenarios.

ATN BlazeSeeker 207 Thermal Monocular Performance & Key Features

The BlazeSeeker 207 delivers solid thermal performance for short-to-mid-range observation thanks to its 12μm VOx thermal sensor and ≤20mK NETD sensitivity. The 50Hz refresh rate helps maintain smoother image movement during scanning, while the OLED display provides clear thermal rendering with good contrast.

• 256x192 thermal sensor with 50Hz refresh rate
• 1.2–9.6x magnification range for versatile observation
• Detection capability up to 345 metres
• Integrated image, video, and audio recording
• Six selectable colour palettes for different viewing conditions

Build Quality & Handling

The lightweight 270g chassis makes the BlazeSeeker 207 easy to carry during longer sessions in the field, while the compact body design supports comfortable one-handed operation. Its IP67 waterproof rating adds reassurance for users operating in wet weather, dusty terrain, or colder outdoor environments.

The fixed focus optical setup simplifies operation by removing the need for constant manual focusing adjustments, helping users stay focused on rapid target acquisition and observation.

Is the ATN BlazeSeeker 207 Thermal Monocular Easy to Use?

The BlazeSeeker 207 is designed with straightforward operation in mind, making it approachable for both experienced thermal users and newcomers to handheld thermal optics. The smooth and step zoom functionality allows users to adapt magnification levels quickly depending on observation distance and terrain.

The built-in Wi-Fi hotspot and ATN Connect 6 app compatibility also improve usability by allowing wireless connectivity and media sharing through compatible iOS and Android devices.

• Focus-free optical system simplifies field use
• Simple digital zoom controls
• Built-in recording and storage functions
• USB Type-C charging and media output support

Key Takeaways of the ATN BlazeSeeker 207 Thermal Monocular

The ATN BlazeSeeker 207 Thermal Monocular combines portability, practical thermal performance, and user-friendly operation in a compact handheld package. Its sensitive thermal sensor, wide field of view, integrated recording capabilities, and durable IP67-rated construction make it well suited to hunting, wildlife observation, security work, and general outdoor thermal scanning. While it is designed primarily for short-to-mid-range thermal use rather than long-distance identification, it offers an excellent balance of performance, usability, and portability for users seeking a dependable entry-to-mid-level thermal monocular.

ATN BlazeSeeker 207 Thermal Monocular FAQs

What magnification range does the ATN BlazeSeeker 207 offer?

The BlazeSeeker 207 provides a 1.2–9.6x magnification range using digital zoom functionality. This allows users to scan wider areas at lower magnification while still having the ability to zoom in for closer target inspection.

How far can the ATN BlazeSeeker 207 detect heat signatures?

The monocular offers a detection range of up to 345 metres. This makes it suitable for close-to-mid-range thermal observation applications including wildlife spotting, pest control, and general surveillance tasks.

Does the ATN BlazeSeeker 207 record video and images?

Yes, the BlazeSeeker 207 supports image capture along with video and audio recording. The monocular includes 32GB of internal storage for saving captured media directly to the device.

Is the ATN BlazeSeeker 207 waterproof?

The monocular carries an IP67 waterproof rating, helping protect it against rain, moisture, and dusty outdoor conditions. This makes it well suited to demanding field environments and adverse weather use.

What display does the ATN BlazeSeeker 207 use?

The unit uses an 800x600 OLED display designed to provide clear thermal imagery with strong contrast and comfortable viewing performance in low-light conditions.

How long does the battery last in the BlazeSeeker 207?

The integrated rechargeable battery delivers approximately 8 hours of operation under normal use. The monocular also supports external power supply connection via USB Type-C for extended runtime.

Does the BlazeSeeker 207 support mobile app connectivity?

Yes, the monocular supports the ATN Connect 6 app for iOS and Android devices. Built-in Wi-Fi hotspot functionality allows wireless connection for media transfer and device interaction.

What thermal sensor does the BlazeSeeker 207 use?

The monocular uses a 12μm VOx uncooled focal plane array thermal sensor with a 256x192 resolution and a 50Hz refresh rate. This combination supports smooth thermal image performance and responsive scanning.

How many colour palettes are available on the BlazeSeeker 207?

The device offers six selectable colour palettes including White Hot, Black Hot, Iron Red, Alarm, Green Hot, and Sepia. These modes allow users to optimise thermal viewing based on environmental conditions and personal preference.

Is the ATN BlazeSeeker 207 suitable for cold weather operation?

Yes, the monocular is designed to operate in temperatures ranging from -30°C to 55°C. This broad operating range supports reliable performance in both cold winter conditions and warmer climates.
