Wimberley Arca-Swiss Style Lens Plate
Related Products & Accessories
Product Details
Manufacturer code: PP-220 | Our code: 118008
Wimberley Arca-Swiss Style Lens Plate. An innovative line of Arca-Swiss style quick-release plates for collared lenses that attach to the foot of your lens. Available in 5 lengths.
Dual Safety Stops
Safety stops at the front and back of our plates keep your expensive lens from accidentally slipping out of the quick-release clamp. If you wish to use only one or neither of these stops, simply remove them with the hex key provided.
Flash Bracket Versatility
The plates are designed to accept RRS & Kirk flash brackets as well as our own quick-release flash brackets.
Double-Dovetail Cross-Section
Wimberley's unique double-dovetail design allows you to attach Wimberley quick-release flash brackets to the upper or lower surface of the plate.
Anti-Twist Nubs
The P-10, P-20, and P-30 plates have anti-twist nubs at the back of the plate. These help to keep the plate from twisting if it is mounted with only one fastener. The unique dual-nub design (as opposed to a single continuous flange) provides better performance when butted against a curved surface. The P-40 and P-50 plates do not have anti-twist nubs because they should be attached with more than one screw.
Click here to view lens plate recommendations.
|
P-50
|
P-40
|
P-30
|
P-20
|
P-10
|
|
|
Mounting Screws |
3 screws
|
3 screws
|
2 screws
|
2 screws
|
2 screws
|
| Anti-Twist Nubs |
No |
No |
Yes |
Yes |
Yes |
| Brass Reducer Bushing |
Yes |
Yes |
No |
No |
No |
| Weight |
4.8 Oz (plate, mounting screws, stop screws) |
4.5 Oz (plate, mounting screws, stop screws) |
3.2 Oz (plate, mounting screws, stop screws) |
2.7 Oz (plate, mounting screws, stop screws) |
2.3 Oz (plate, mounting screws, stop screws) |
|

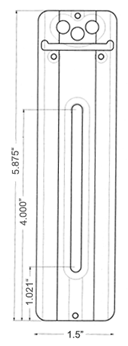

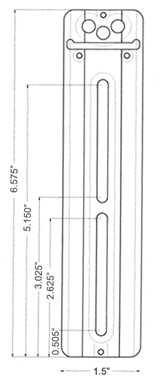

Dimensions |
 |
 |
 |
 |
 |
