Deben PS22 Gen2+ Nightvision Conversion Unit
Accessories
Product Details
Manufacturer code: DN8800

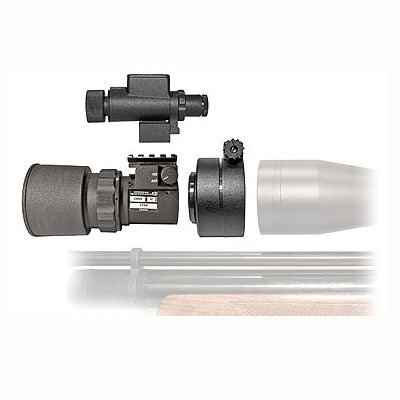

The PS-22 is a state of the art attachment for daytime riflescopes. With 1X magnification, it converts daytime rifle scopes into accurate, high quality night vision weapon sights.
The PS-22 mounts in front of a daytime scope. It is unlike other rear mounted systems, but it provides the following benefits:
• Re-zeroing of scope NOT required
• Eye relief is NOT Affected
• Illuminated reticles can be used with no damage to the night vision unit.
• Suitable for fixed objective or side focus scopes.
The PS-22 comes with 7/8" weaver mount, and a range of optional ring adapters are available to mount the unit directly to your riflescope - 25mm - 58mm dia. The IR Illuminator can be mounted onto a picantiny rail. The PS-22 utilizes a GEN 2+ intensifier tube.
This ingenious setup allows the shooter to go from day to night (in less than 30 seconds!!!) without tools, changes in eye relief and remain zeroed all around the clock. The PS-22 is a complex optical-electronic system. The device contains an image intensifier tube assembly with an integrated high voltage power source and the 3v battery housing.
• Easily changes daytime scope to nightvision
• Mounts in front of daytime scope, no re-zeroing required
• GEN 2+
• Multi-coated glass optics
• Fast catadioptic front lens system
• Can be used as a NV Monocular
• Large 40mm eyepiece
• Complete with Standard 7/8"
• Optional adapters available (25-58mm)
Image Intensifier GEN 2+
Magnification 1X
Lens system FI:I.44, 80mm
FOV 13°
Range of focus 10m to ∞
Waterproof 10m for 30mins
Power supply 3v Lithium (CR123)
Battery life 60hrs
Dimensions 139 x 80 x 72mm
Detection range 200mm
Recognition range 150m
Weight 0.6kg
