Hawke Tactical Combo Kit - Green Laser and Flashlight
Product Details
Manufacturer code: HK3509
The quick and precise targeting system makes this combination kit ideal for rat or rabbit shooting, checking zero and night time shooting.
Features:
- 5mW Laser 10mm dot at 10m range (eye safe)
- Windage and elevation adjustable laser
- Xenon target illuminator range 25yds
- Battery supplied
- Fits any 25mm (1” dia) riflescope tube ≤ 50mm objective lens
- Remote switch and integral switch
Assembling Your Hawke Laser

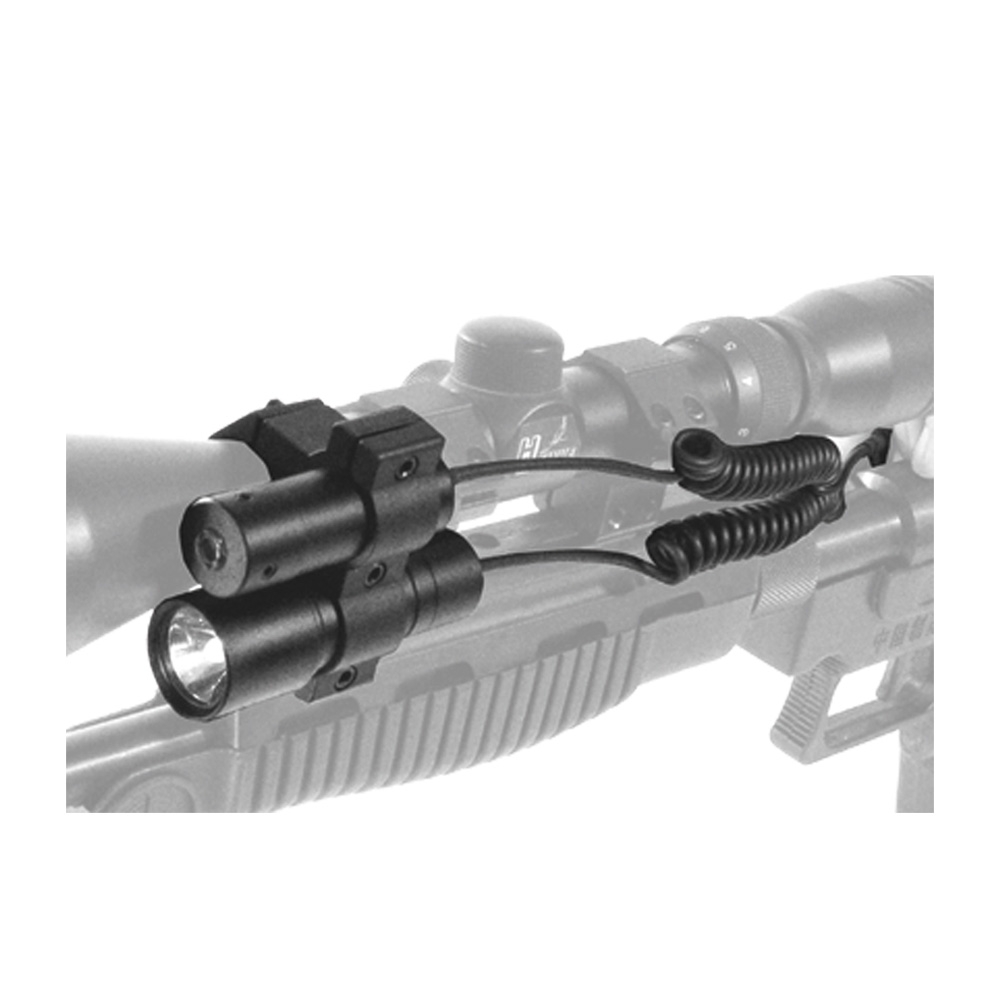

Assemble your Hawke® Illuminator Kit onto your scope using the scope mount I). For scopes with large objectives (up to 50mm Objective dia.) use the raiser block(2)supplied. To mount closer to the centre of the scopes axis (up to 40mm Objective) remove the raiser block and use the shorter screws.
Secure by tightening the screws using the allen key supplied (3).
In the illuminator insert the CR 123A battery (4)with + facing the bulb. In the laser Insert the three batteries (5) with the writing facing up.
Choose either remote pressure switch (6) or illuminator switch (7).
If using the remote pressure switch, use the Velcro pads (8) to position to a suitable position on your gun stock.
Zeroing Your Laser
Loosen the locking screw with a flathead screwdriver. DO NOT completely remove this screw.
Adjust the laser to the point of impact by using the allen key supplied (9). Once zero has been achieved tighten the locking screw into position.
